Home >> Lexus >> 2009 >> ES 350 >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (Service Information) >> Acceleration Sensor >> Components >> Illustration

Acceleration Sensor: Components: Illustration

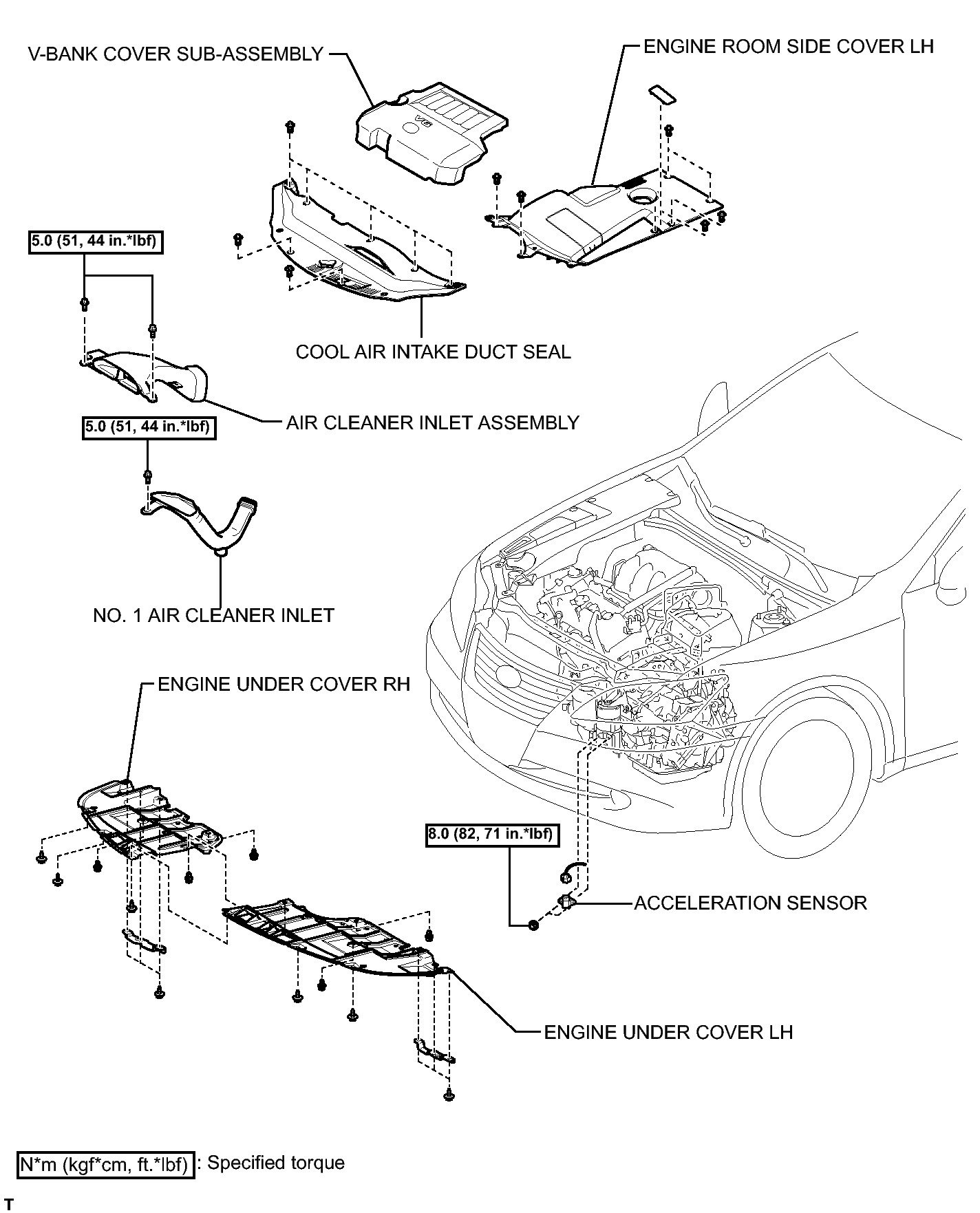

Fig 1: Identifying Acceleration Sensor Replacement Components With Torque Specifications

GTY146459

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
