Home >> Lexus >> 2009 >> ES 350 >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (Service Information) >> Active Control Engine Mount >> Components >> Illustration

Active Control Engine Mount: Components: Illustration

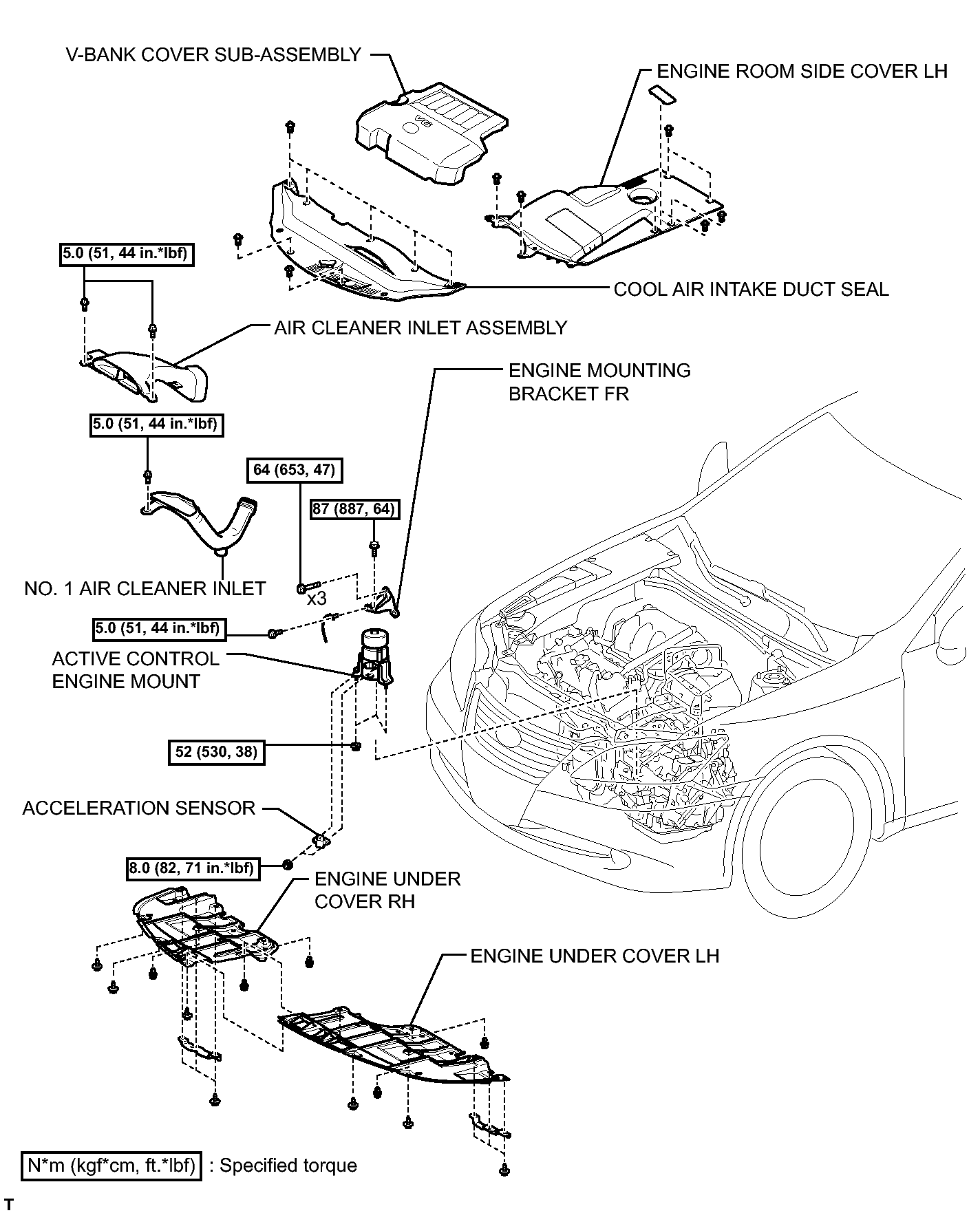

Fig 1: Identifying Active Control Engine Mount Replacement Components With Torque Specifications

GTY146458

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
