Accelerator Pedal: Components: Illustration

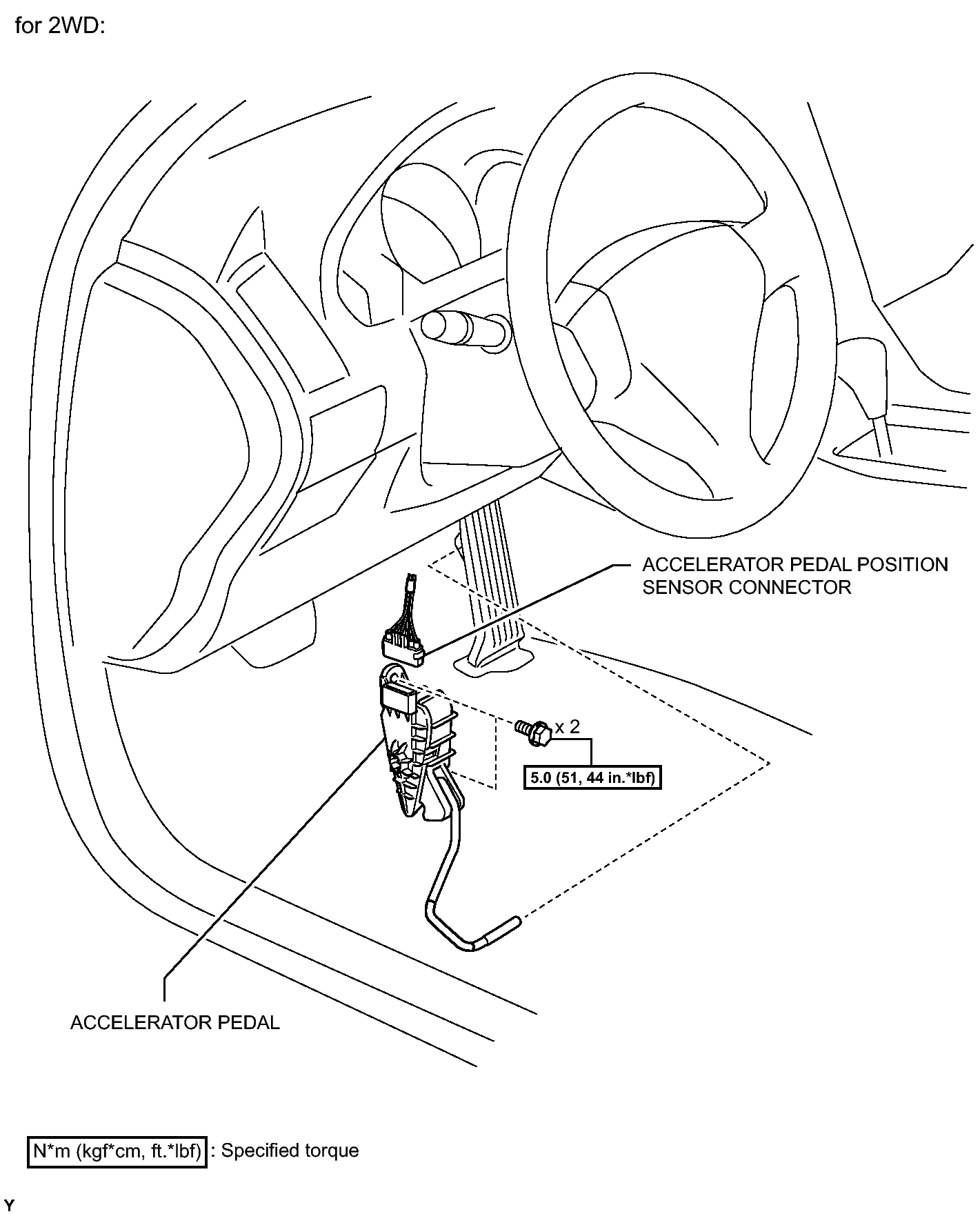

Fig 1: Identifying Accelerator Pedal Replacement Components With Torque Specifications (1 Of 2)
GTY105255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

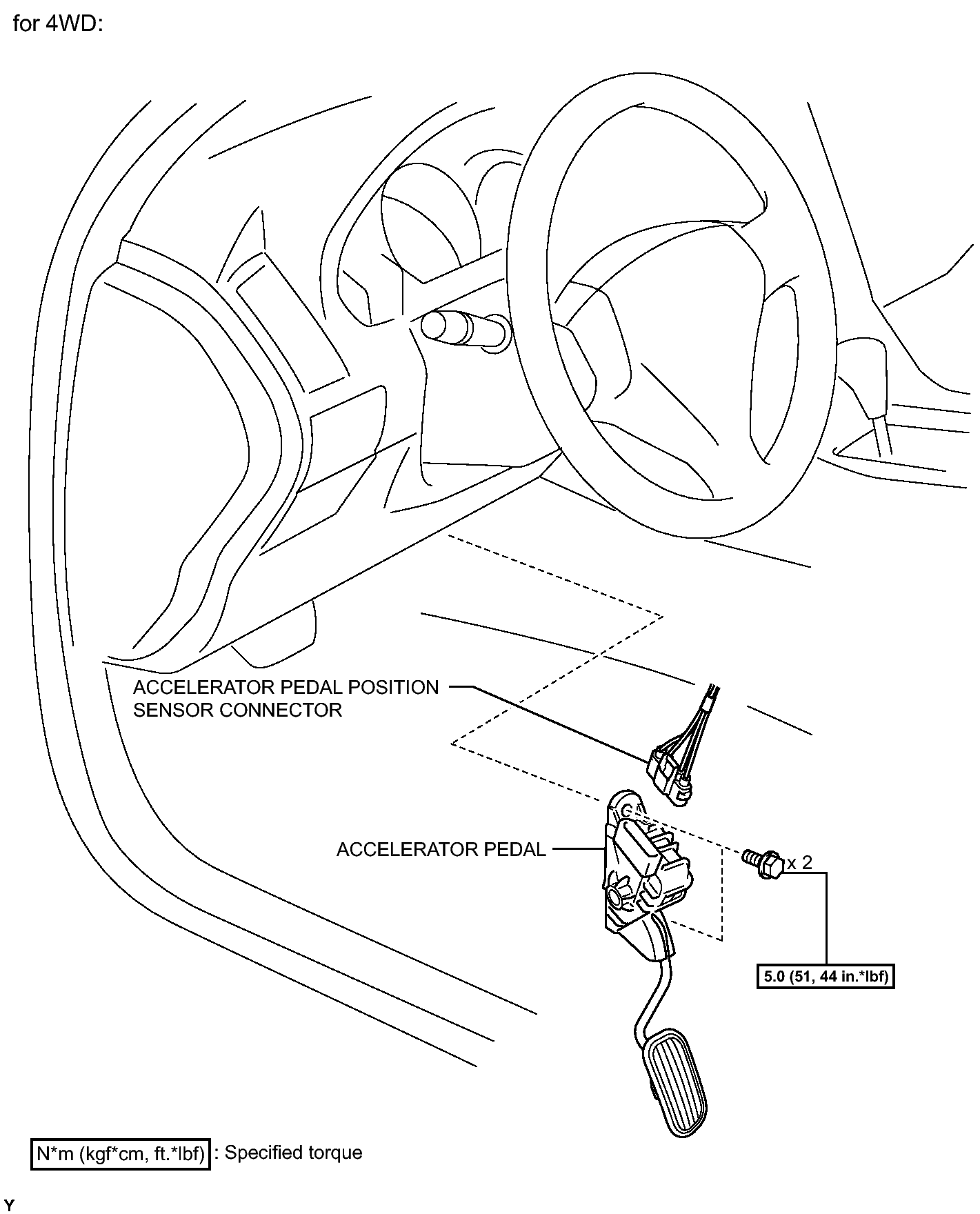

Fig 1: Identifying Accelerator Pedal Replacement Components With Torque Specifications (2 Of 2)
GTY105256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
