Crankshaft Position Sensor: Components: Illustration

Fig 1: Identifying Crankshaft Position Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY146574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

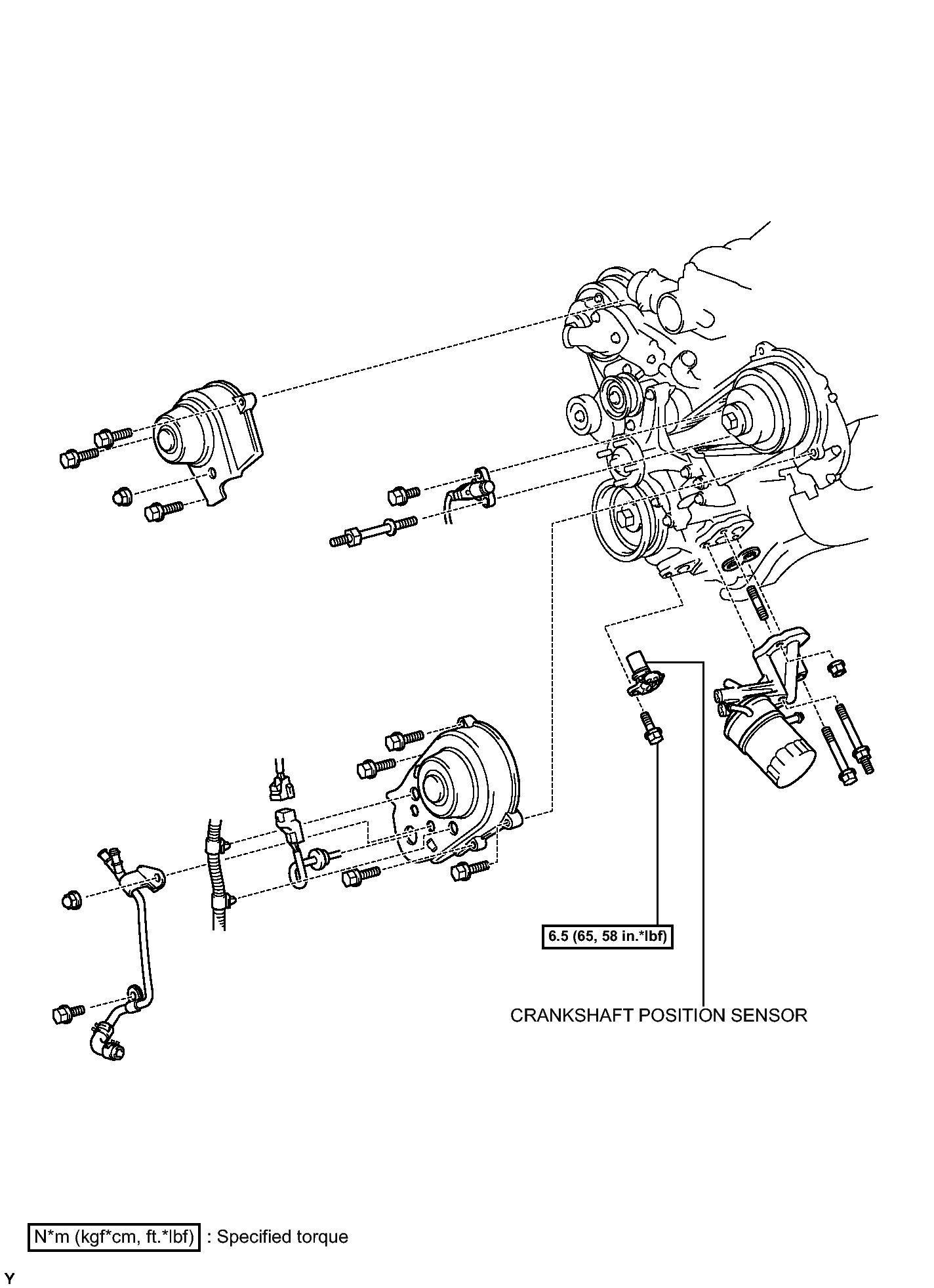

Fig 1: Identifying Crankshaft Position Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY146557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
