VVT Sensor: Components: Illustration

Fig 1: Identifying VVT Sensor Replacement Components With Torque Specifications (1 Of 3)
GTY147132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying VVT Sensor Replacement Components With Torque Specifications (2 Of 3)
GTY145856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

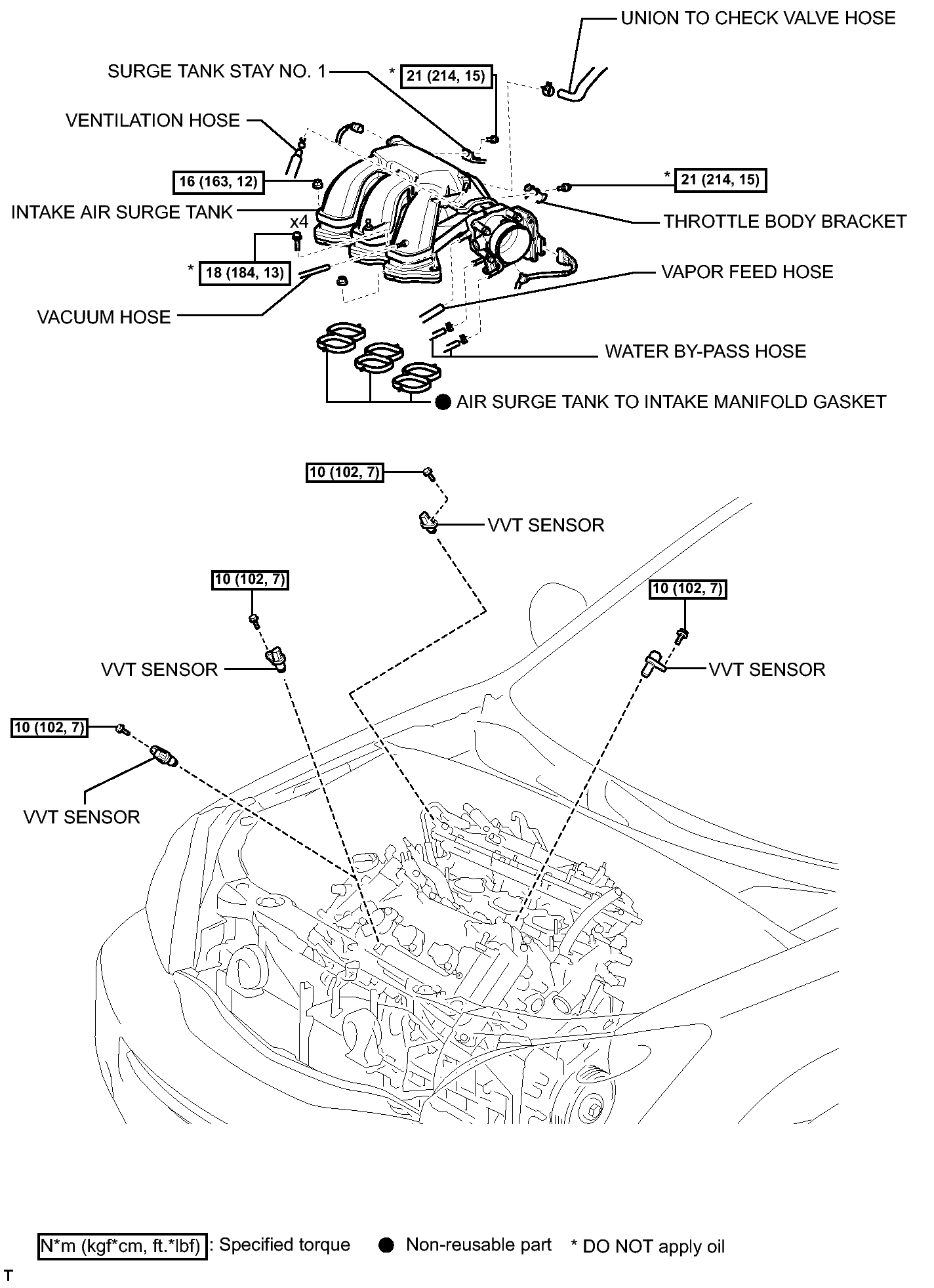

Fig 1: Identifying VVT Sensor Replacement Components With Torque Specifications (3 Of 3)
GTY122916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
