Camshaft Position Sensor: Components: Illustration

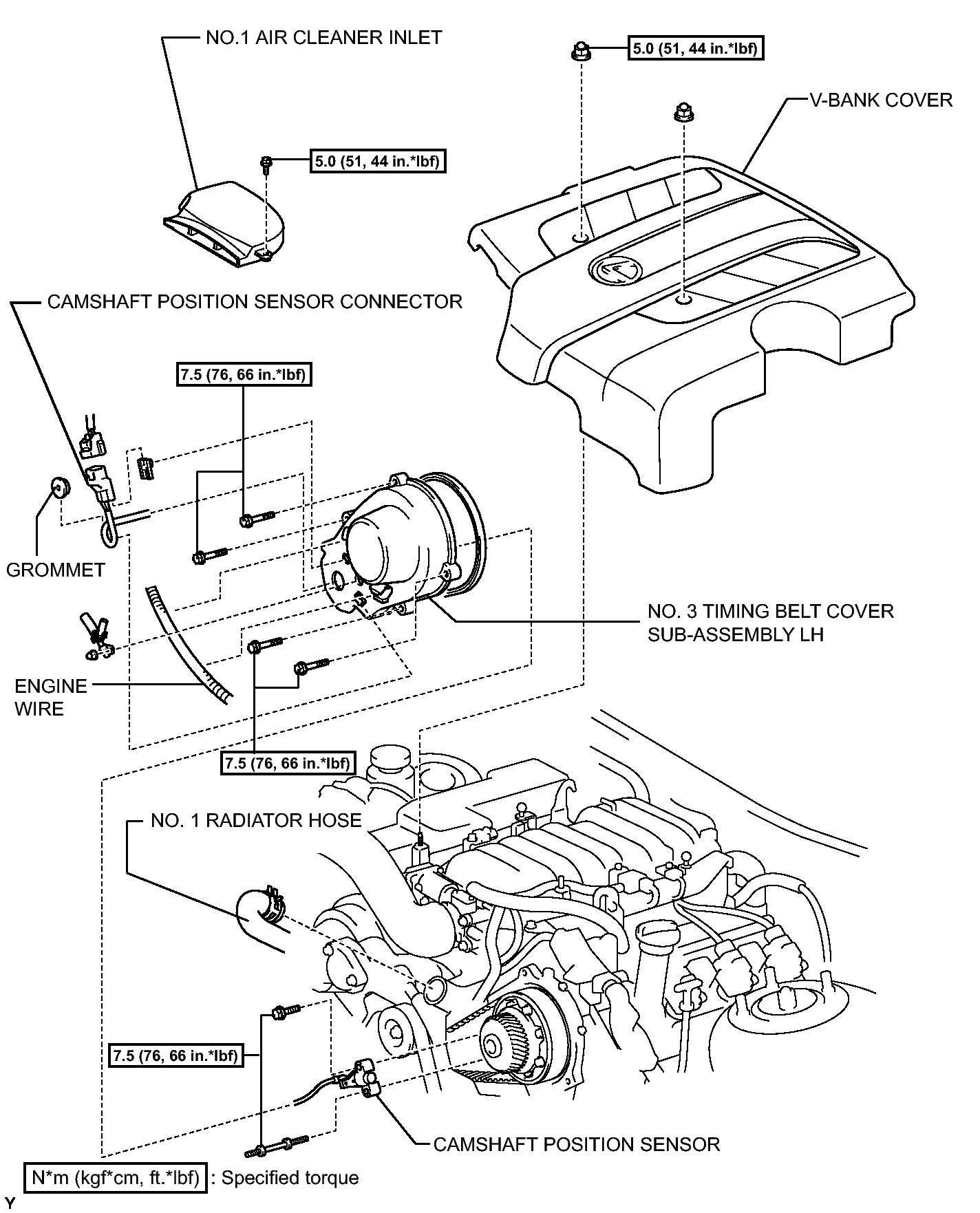

Fig 1: Identifying Camshaft Position Sensor Replacement Components And Torque Specifications

GTY145870

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
