Parts Location: Illustration

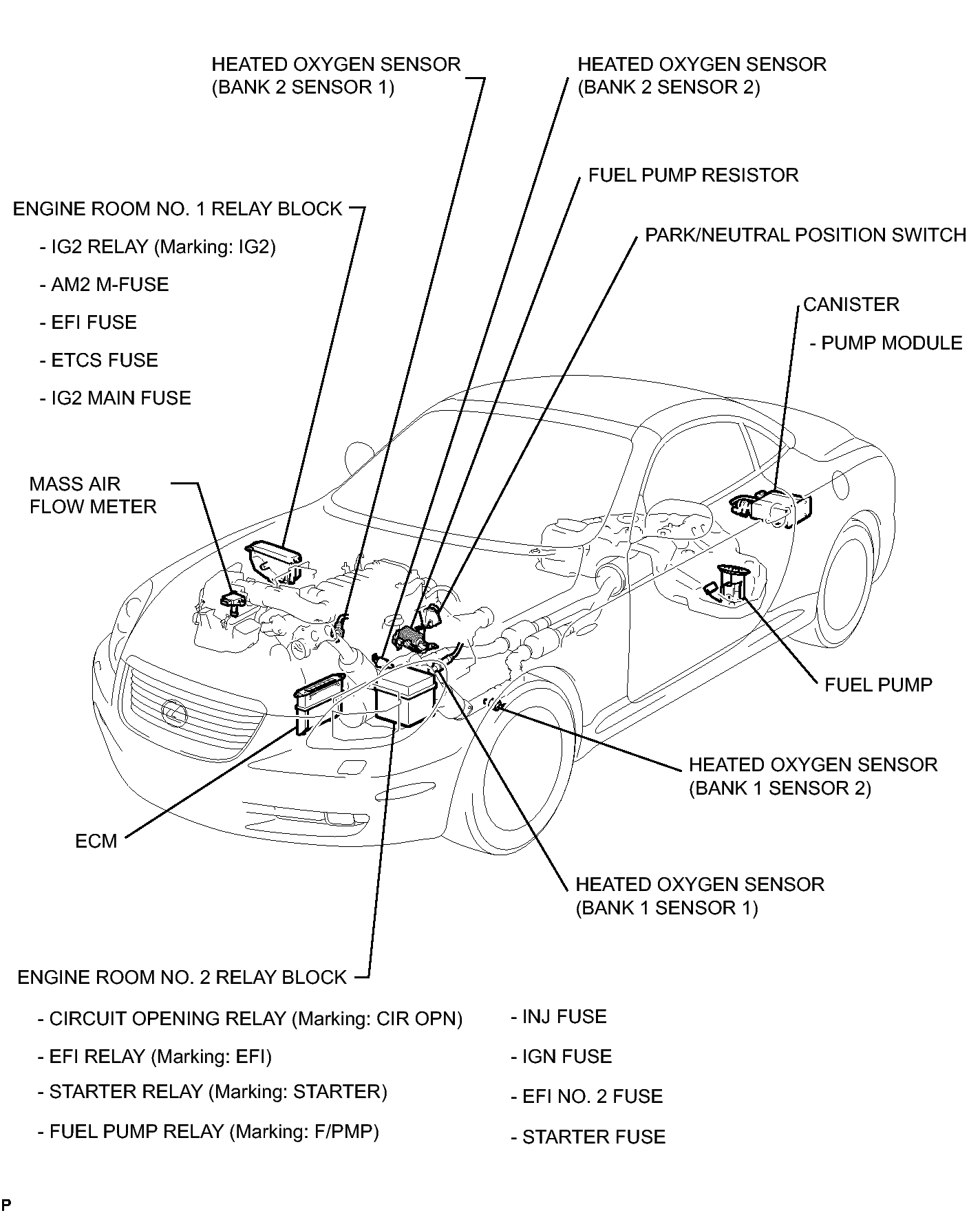

Fig 1: Identifying SFI System Components (1 Of 3)
GTY285683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

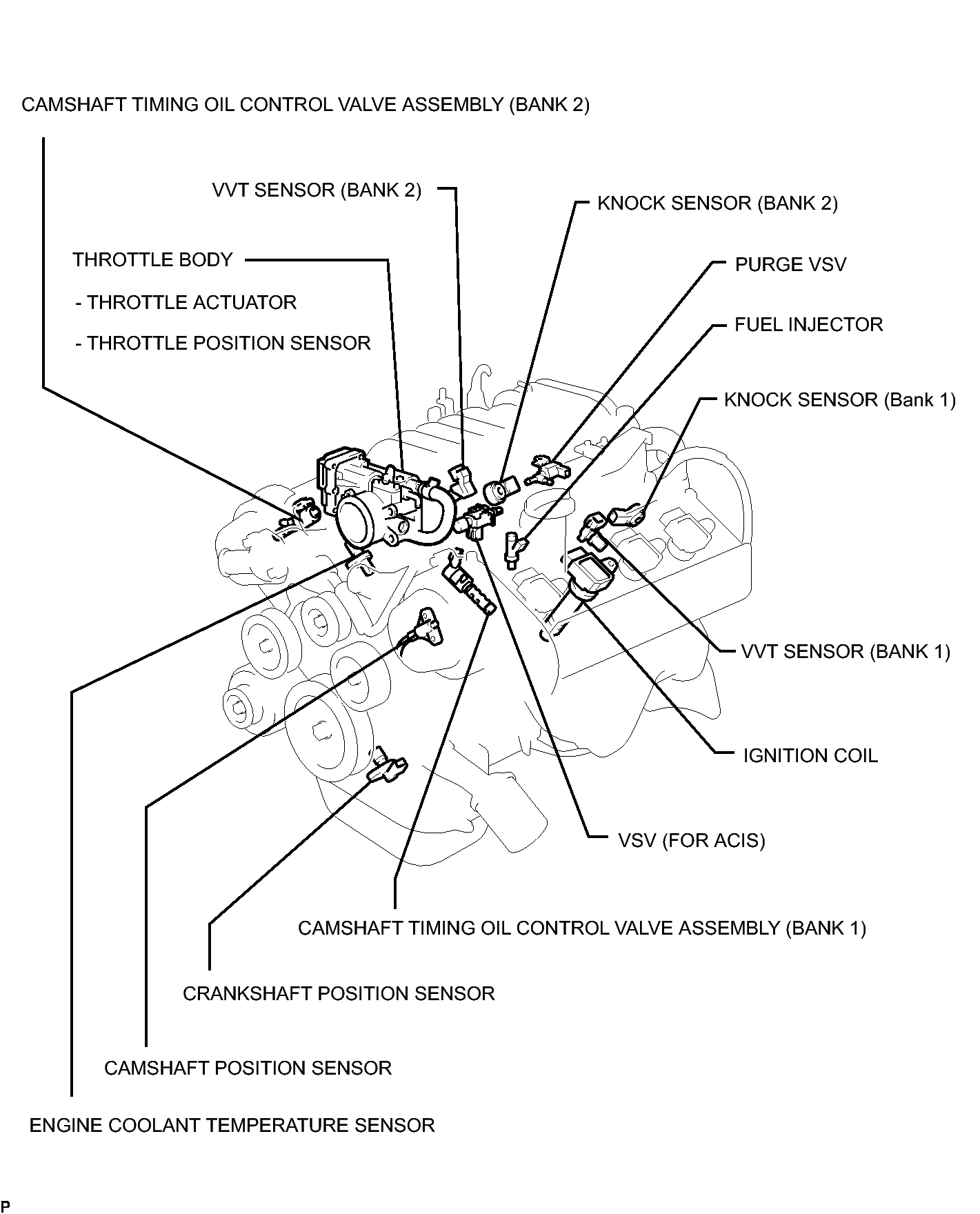

Fig 1: Identifying SFI System Components (2 Of 3)
GTY272609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying SFI System Components (3 Of 3)
GTY146179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
