Crankshaft Position Sensor: Components: Illustration

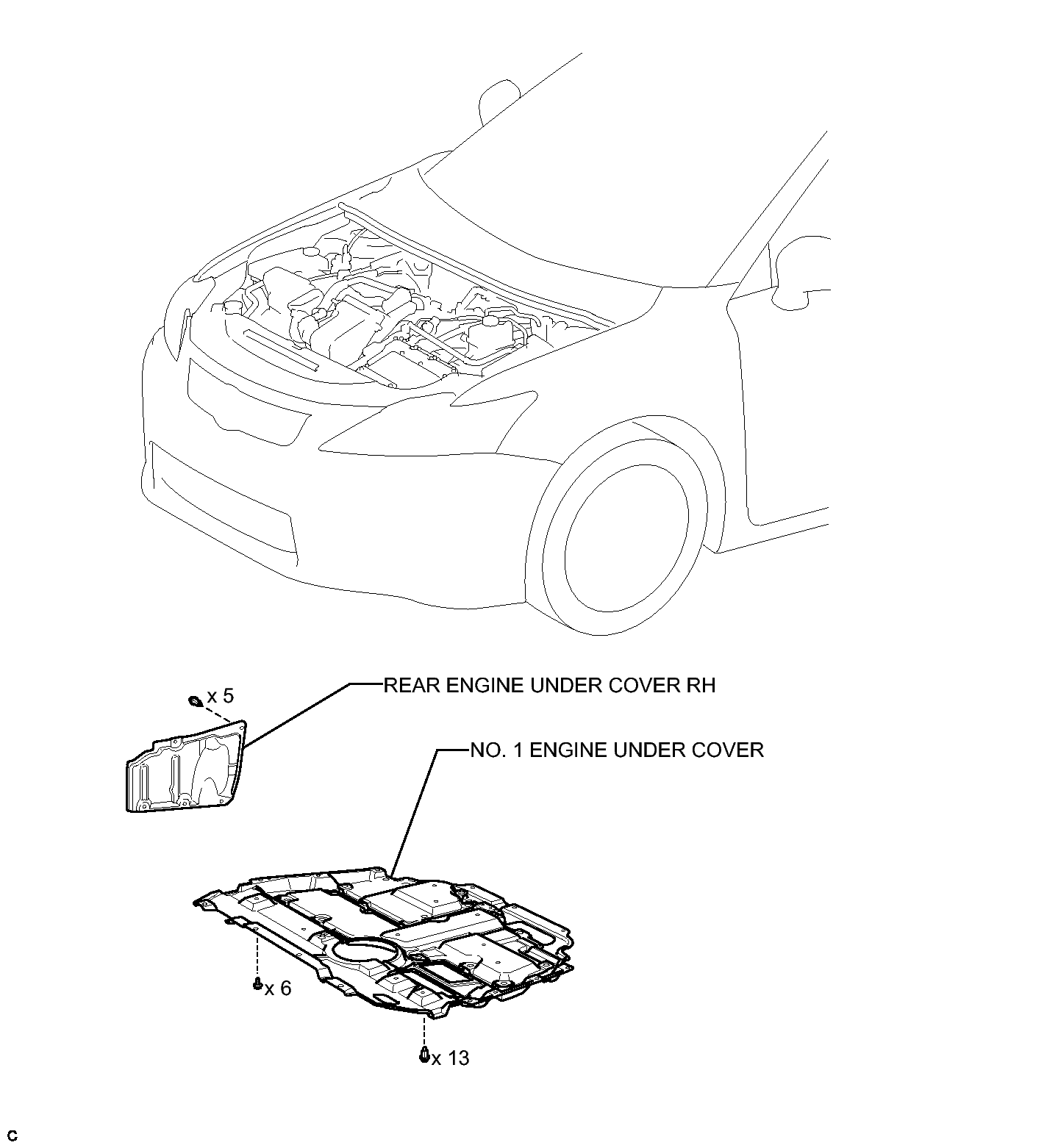

Fig 1: Identifying Crankshaft Position Sensor Replacement Components (1 Of 2)
GTY347546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

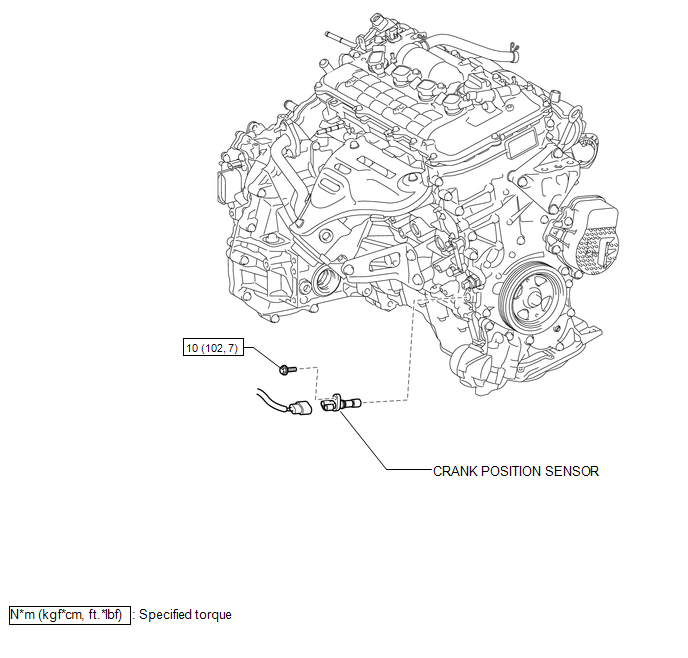

Fig 1: Identifying Crankshaft Position Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY225418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
