Home >> Lexus >> 2011 >> CT 200h >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (Service Information) >> Engine Coolant Temperature Sensor >> Components >> Illustration

Engine Coolant Temperature Sensor: Components: Illustration

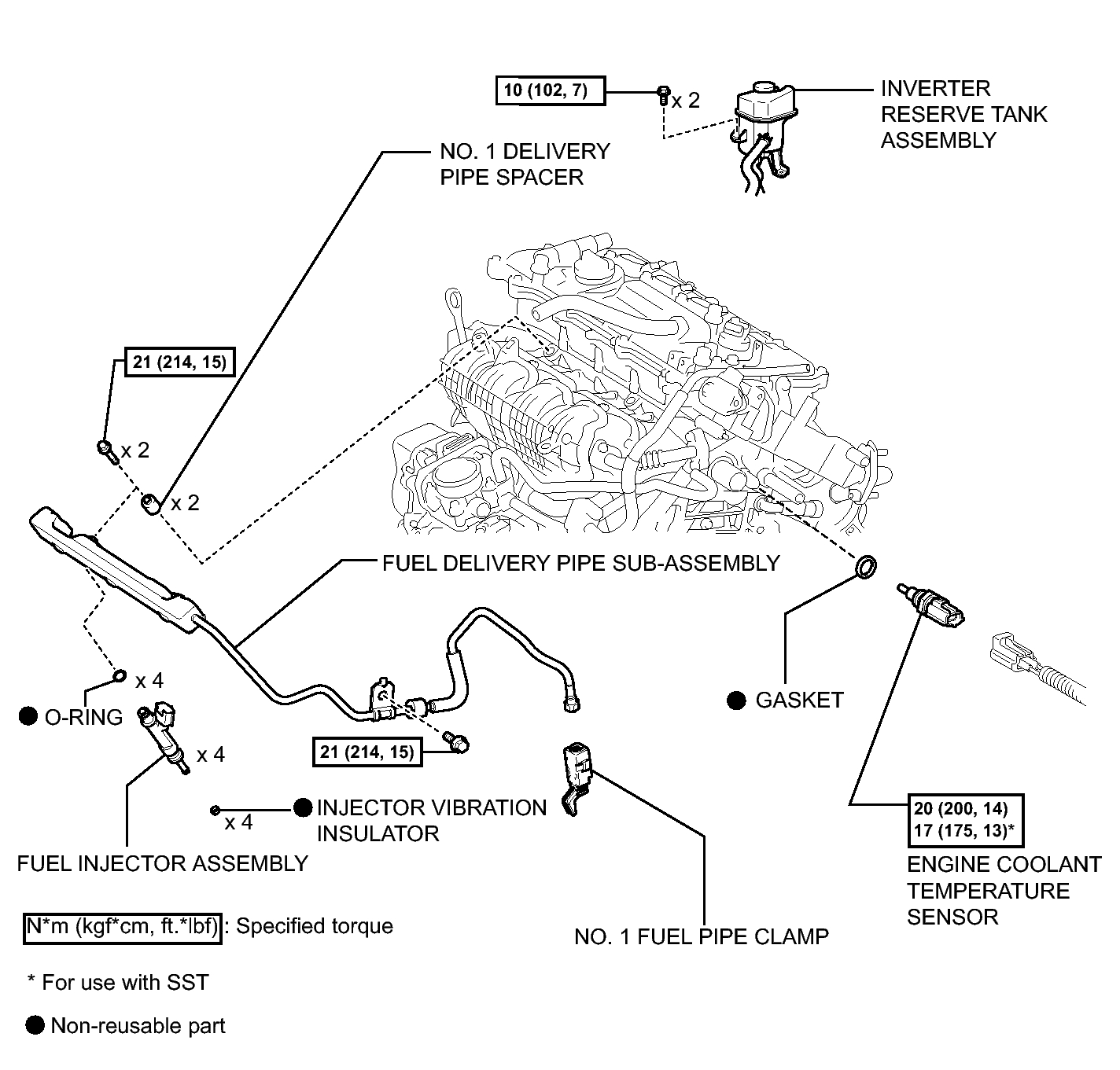

Fig 1: Identifying Engine Coolant Temperature Sensor Replacement Components With Torque Specifications
GTY353189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
