Home >> Lexus >> 2011 >> GX 460 >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (Service Information) >> Air Fuel Ratio Sensor >> Components >> Illustration

Air Fuel Ratio Sensor: Components: Illustration

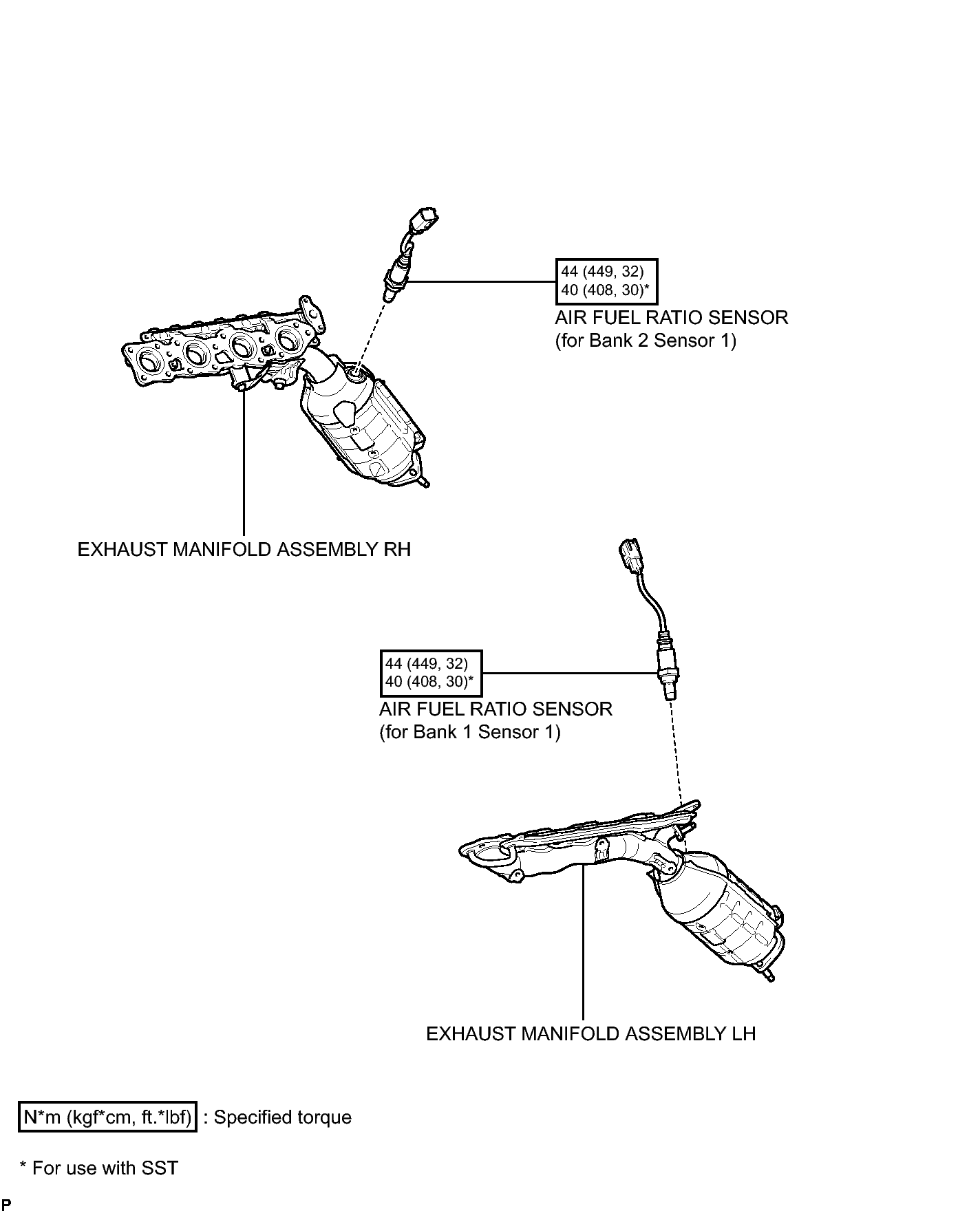

Fig 1: Identifying Air Fuel Ratio Sensor Replacement Components With Torque Specifications

GTY257424

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
