Camshaft Timing Control Motor: Components: Illustration

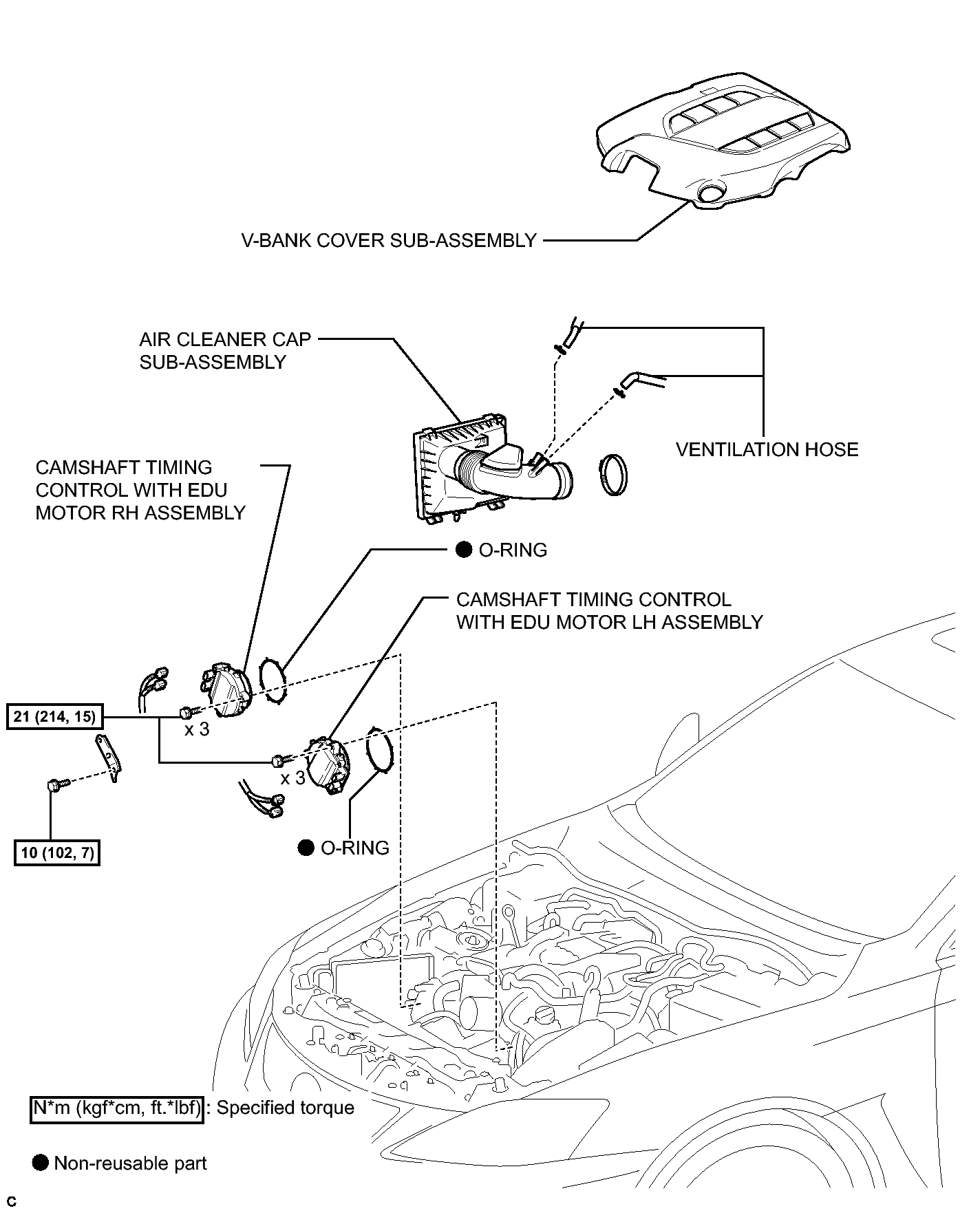

Fig 1: Identifying Camshaft Timing Control Motor Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
