VVT Sensor: Removal: Removal

  1. REMOVE V-BANK COVER SUB-ASSEMBLY  . See step  3
  2. REMOVE AIR CLEANER INLET COVER SUB-ASSEMBLY  . See step  4
  3. REMOVE NO. 1 AIR CLEANER INLET  . See step  5
  4. REMOVE AIR CLEANER ASSEMBLY LH
    1. Disconnect the MAF meter connector.

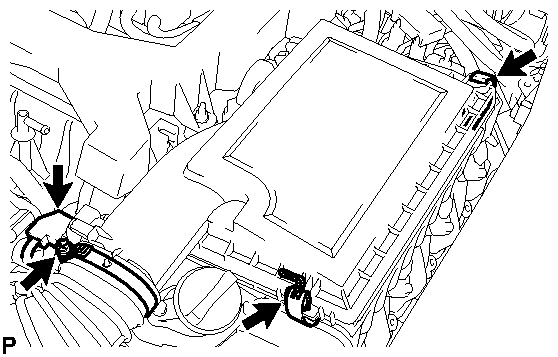

      Fig 1: Locating MAF Meter Connector And Clamps
      GTY288181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 clamps, loosen the hose clamp and remove the air cleaner cap LH.
    3. Remove the element from the air cleaner case.
    4. Remove the 2 nuts, clip and air cleaner case.

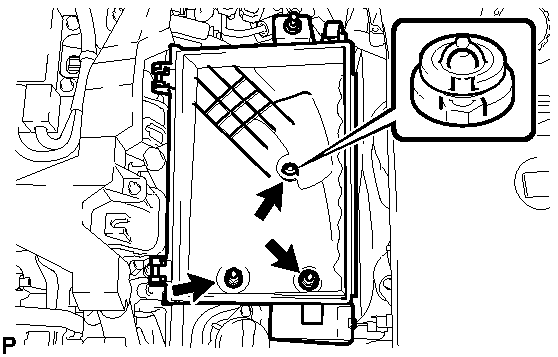

      Fig 2: Locating Air Cleaner Case Nuts And Clips
      GTY284162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE AIR CLEANER ASSEMBLY RH
    1. Disconnect the MAF meter connector.

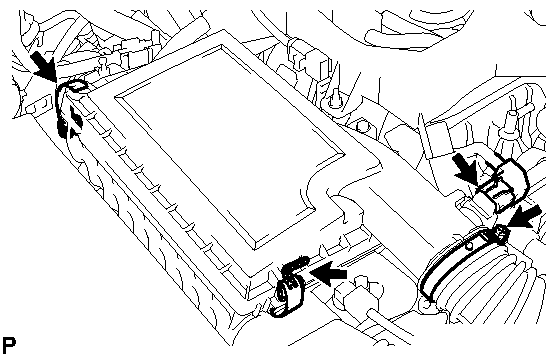

      Fig 3: Locating MAF Meter Connector And Clamps
      GTY268728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 clamps, loosen the hose clamp and remove the air cleaner cap RH.
    3. Remove the element from the air cleaner case.
    4. Remove the 2 nuts, clip and air cleaner case.

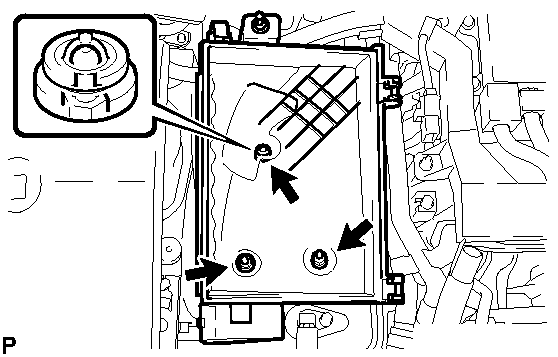

      Fig 4: Locating Air Cleaner Case Nuts And Clips
      GTY288139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE VVT SENSOR
    1. Disconnect the 4 VVT sensor connectors.

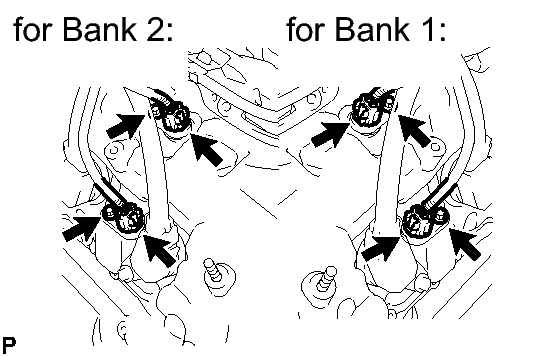

      Fig 5: Locating VVT Sensor Connectors
      GTY268217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and 4 VVT sensors.
