Engine Control System (Diagnostics - Introduction)
>>
SFI System
>>
System Diagram
>>
System Diagram
System Diagram

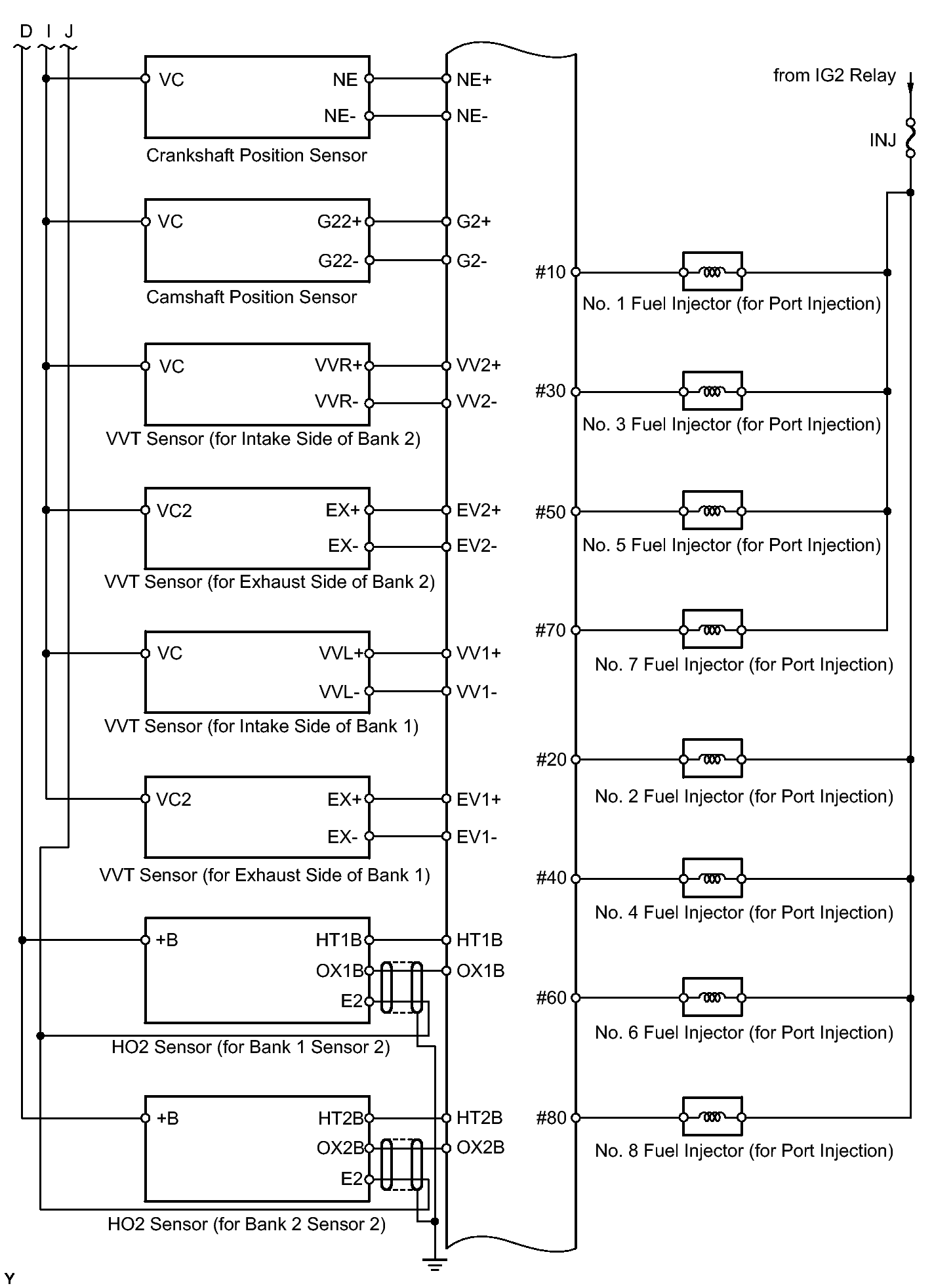

Fig 1: SFI System Wiring Diagram (1 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

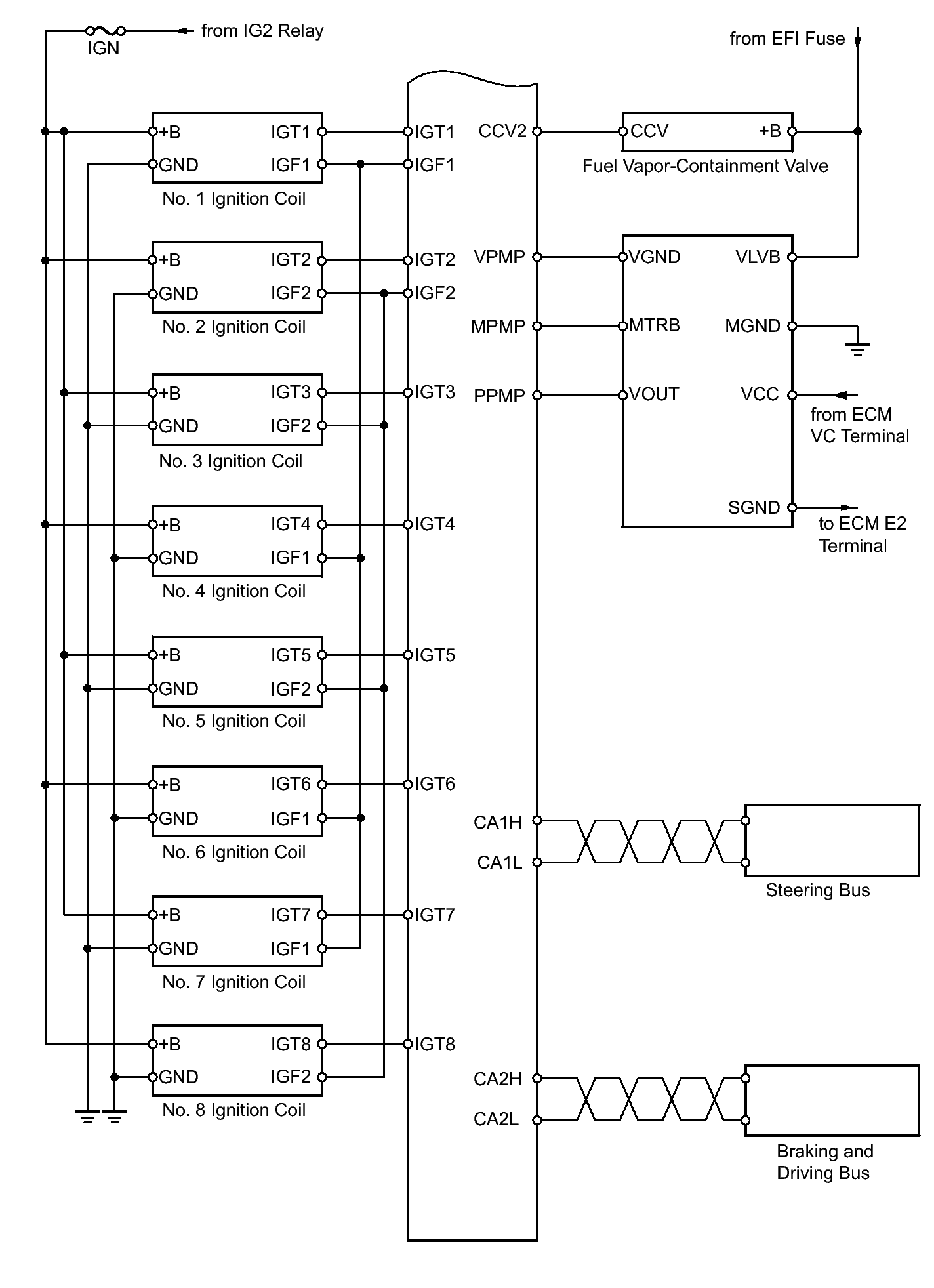

Fig 2: SFI System Wiring Diagram (2 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

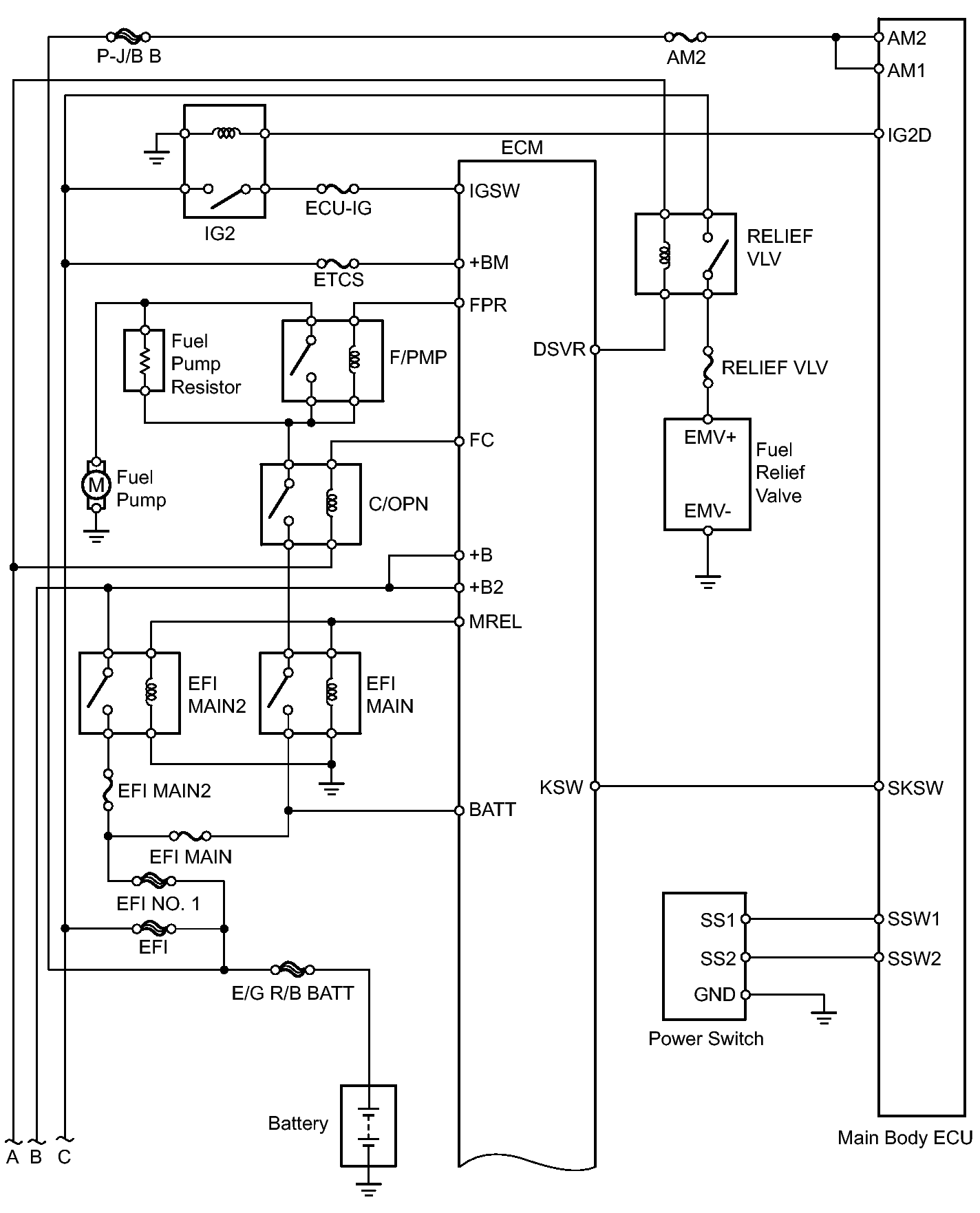

Fig 3: SFI System Wiring Diagram (3 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

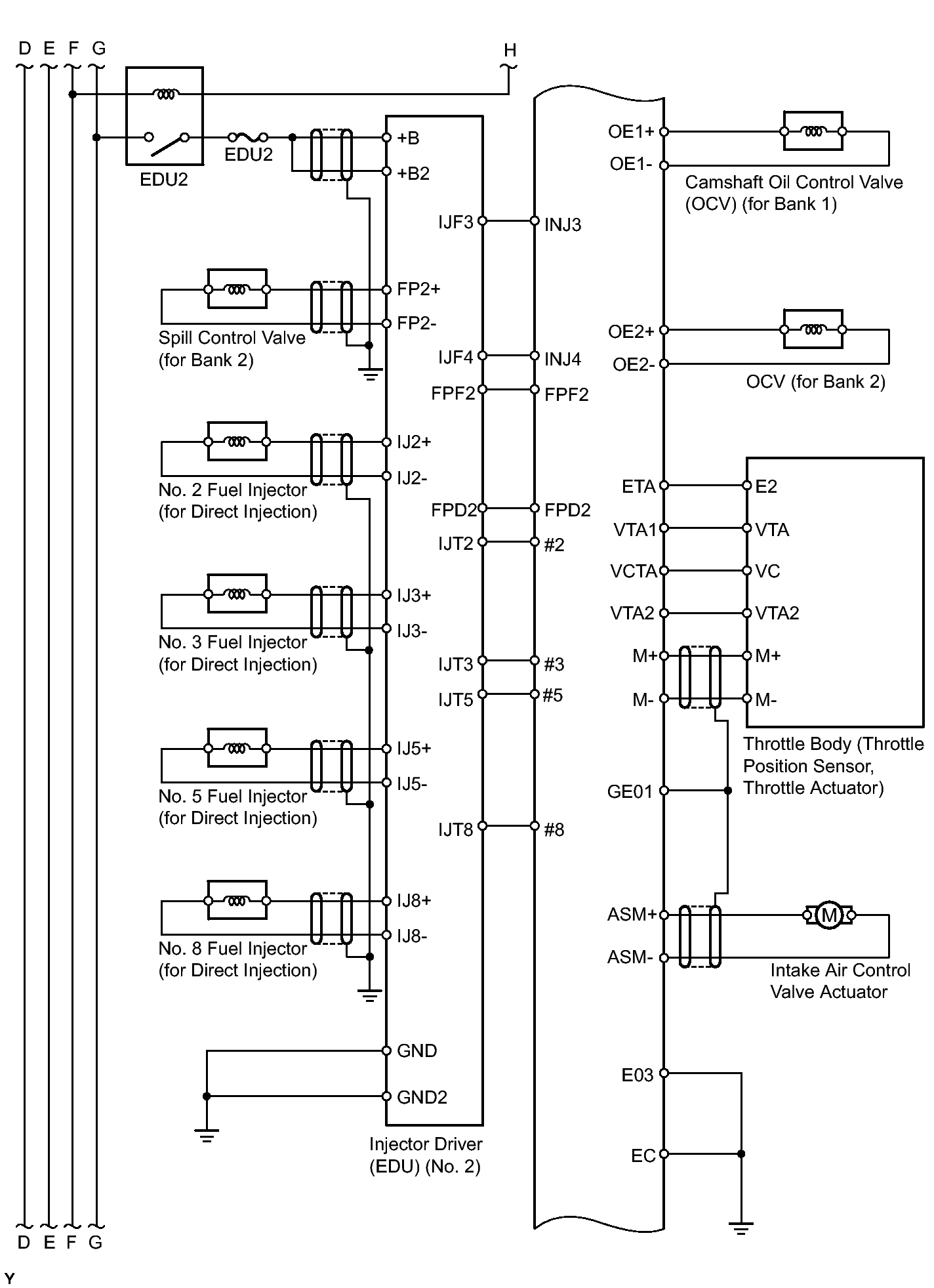

Fig 4: SFI System Wiring Diagram (4 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

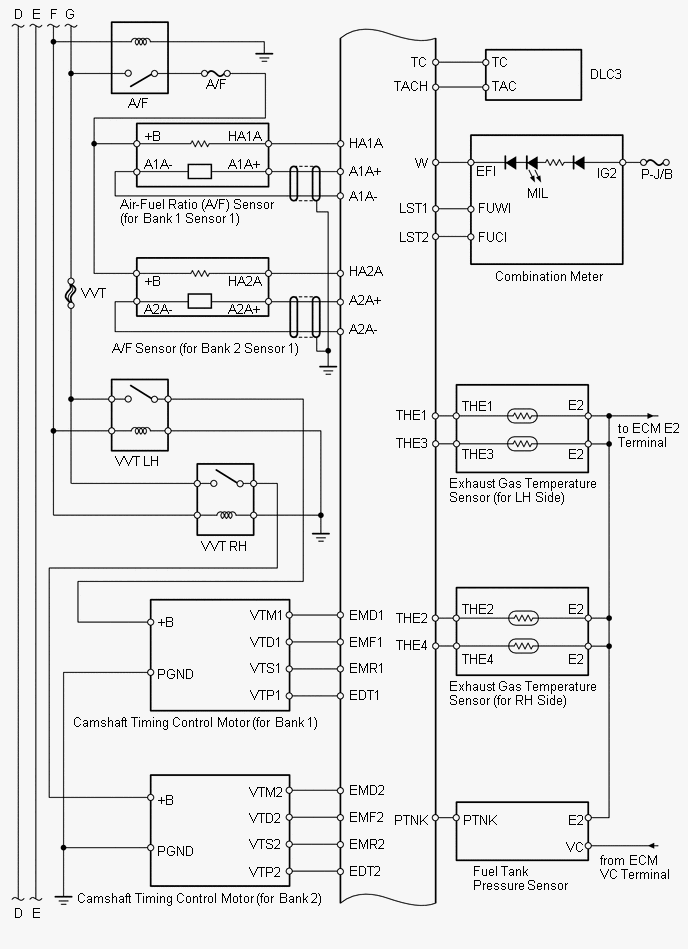

Fig 5: SFI System Wiring Diagram (5 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

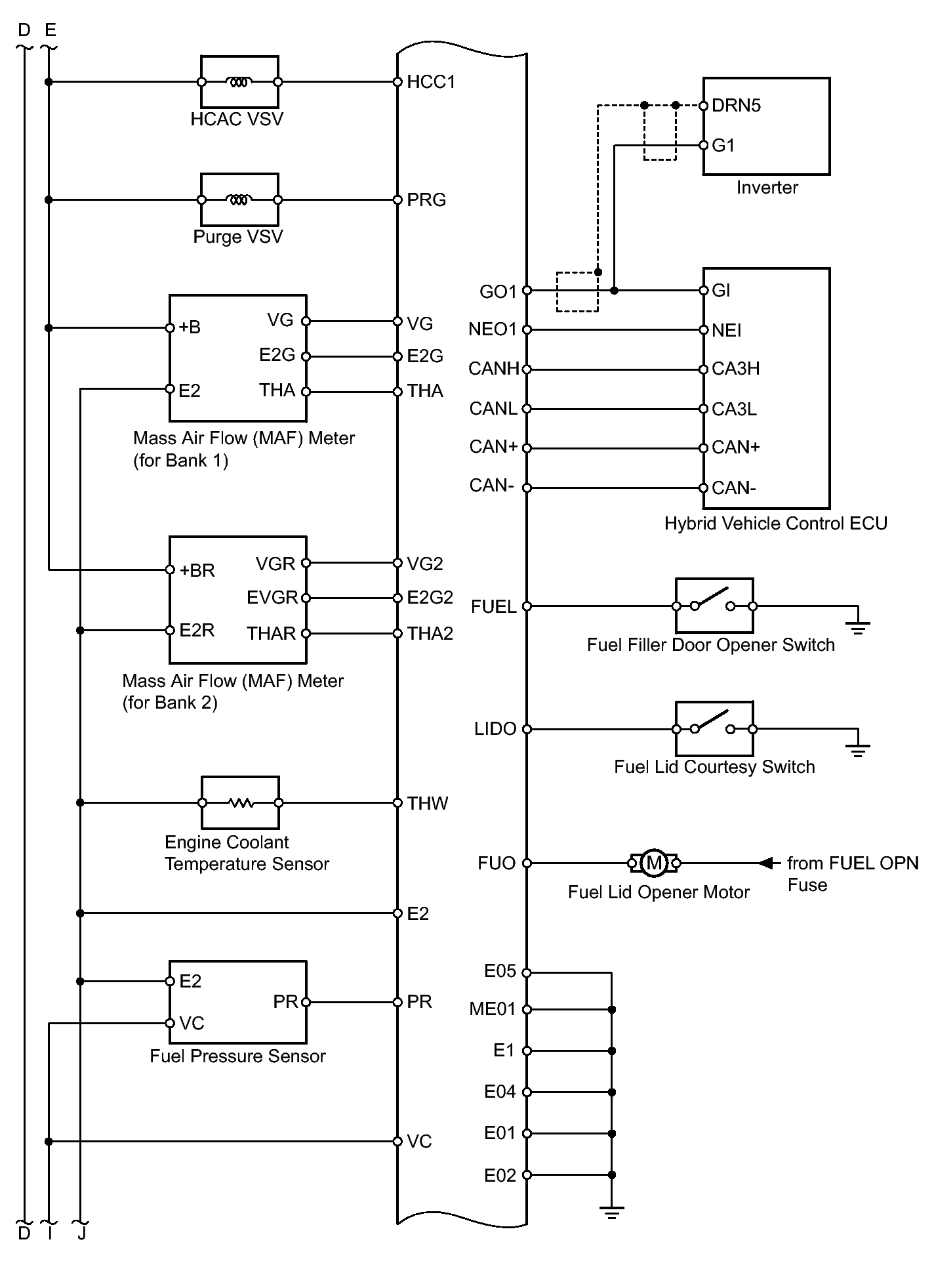

Fig 6: SFI System Wiring Diagram (6 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 7: SFI System Wiring Diagram (7 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
