Manifold Absolute Pressure Sensor: Removal: Removal

  1. REMOVE V-BANK COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 15
  2. REMOVE MANIFOLD ABSOLUTE PRESSURE SENSOR
    1. Disconnect the manifold absolute pressure sensor connector.

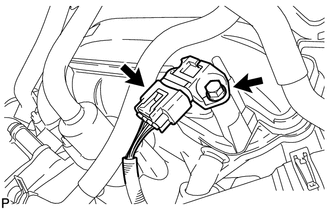

      Fig 1: Identifying Manifold Absolute Pressure Sensor Connector
      GTY275029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and manifold absolute pressure sensor.
    3. Remove the O-ring from the manifold absolute pressure sensor.
