Home >> Lexus >> 2012 >> IS F >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (Service Information) >> Heated Oxygen Sensor >> Components >> Illustration

Heated Oxygen Sensor: Components: Illustration

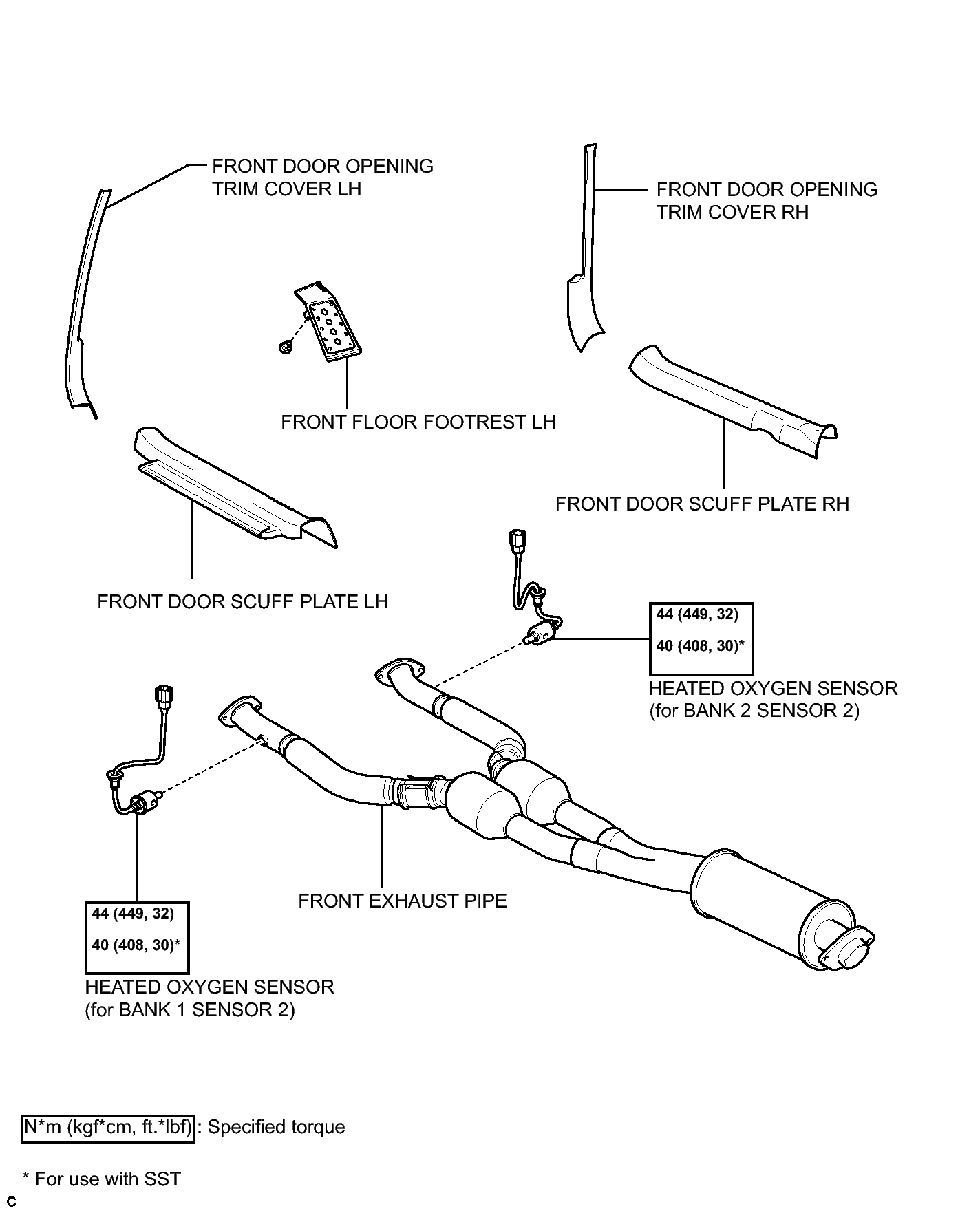

Fig 1: Identifying Heated Oxygen Sensor Replacement Components With Torque Specifications

GTY149058

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
