Accelerator Pedal: Components: Illustration

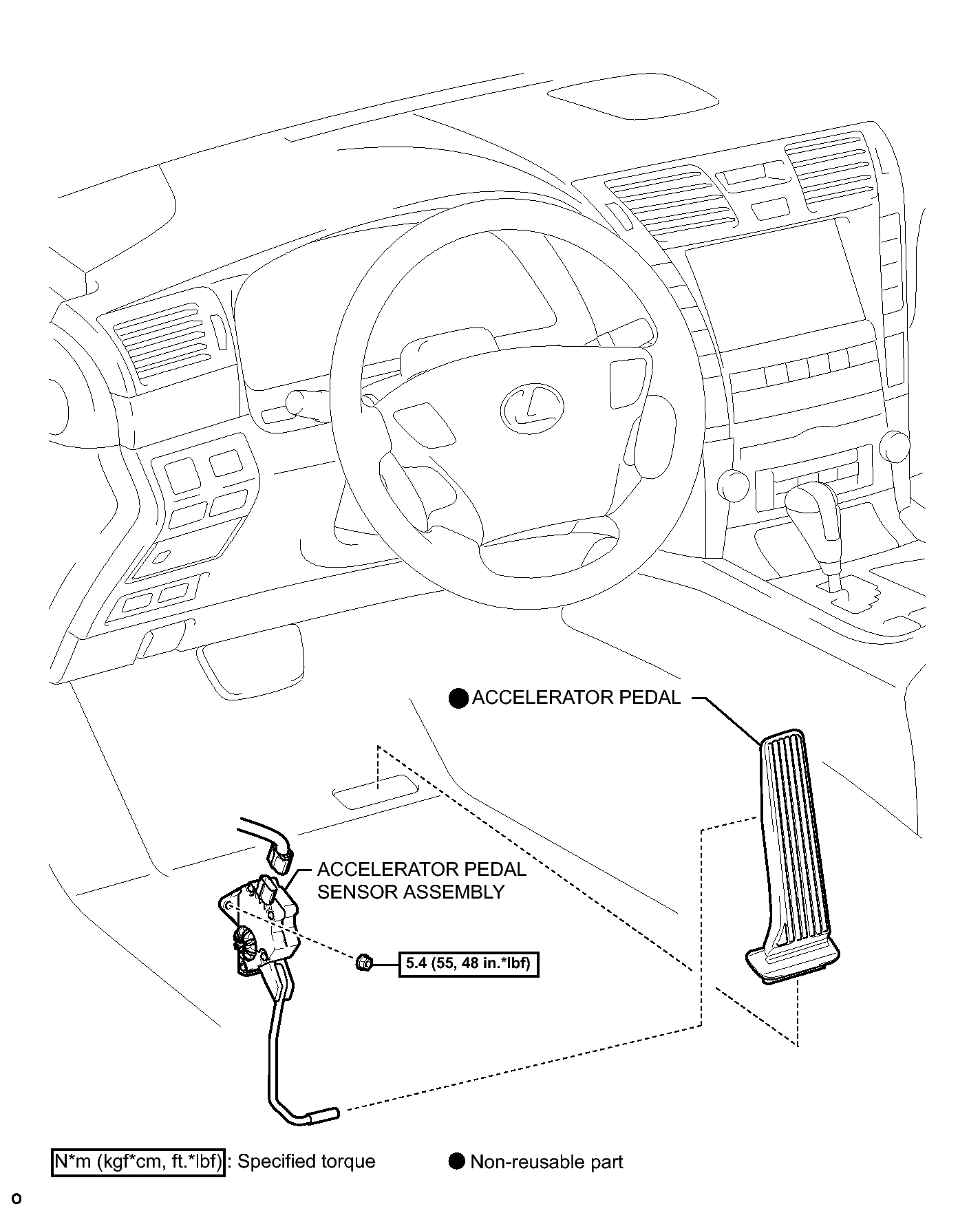

Fig 1: Identifying Accelerator Pedal Replacement Components With Torque Specifications

GTY393475

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
