Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER
1. The vehicle identification number is stamped on the vehicle identification number plate and certification label, as shown in the illustrations.
  1. Frame Number

    Fig 1: Identifying Frame Number
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Vehicle Identification Number Plate

    Fig 2: Identifying Vehicle Identification Number Plate
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Certification Label

    Fig 3: Identifying Certification Label Location
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE SERIAL NUMBER AND VEHICLE IDENTIFICATION NUMBER
1. The engine serial number is stamped on the cylinder block of the engine and the hybrid transmission serial number is stamped on the housing as shown in the illustrations.
  1. Engine Serial Number

    Fig 4: Identifying Engine Serial Number Location
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Vehicle Identification Number

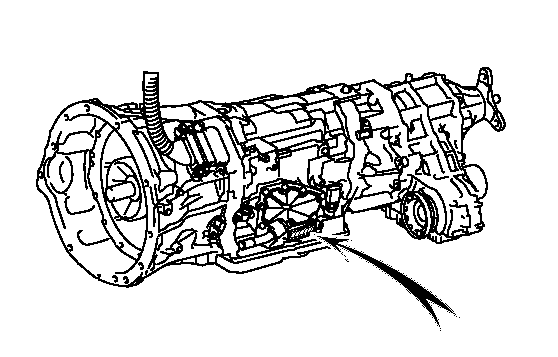

    Fig 5: Identifying Hybrid Transmission Serial Number Location
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
