Home >> Lexus >> 2013 >> LS 460L AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (Service Information) >> VVT Sensor >> Components [09/2012 - ] >> Illustration

Components [09/2012 - ]: Illustration

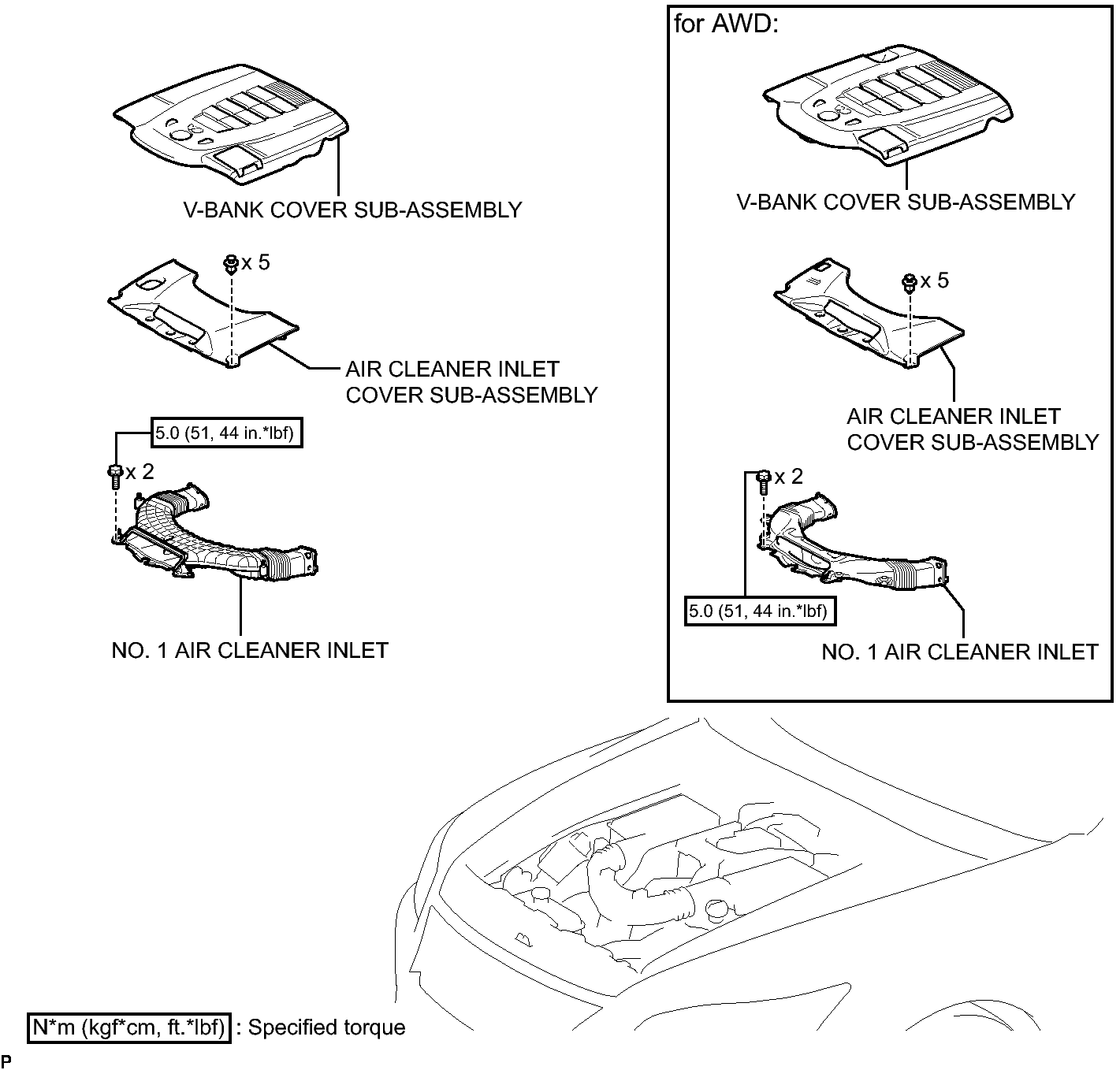

Fig 1: Identifying VVT Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY420179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

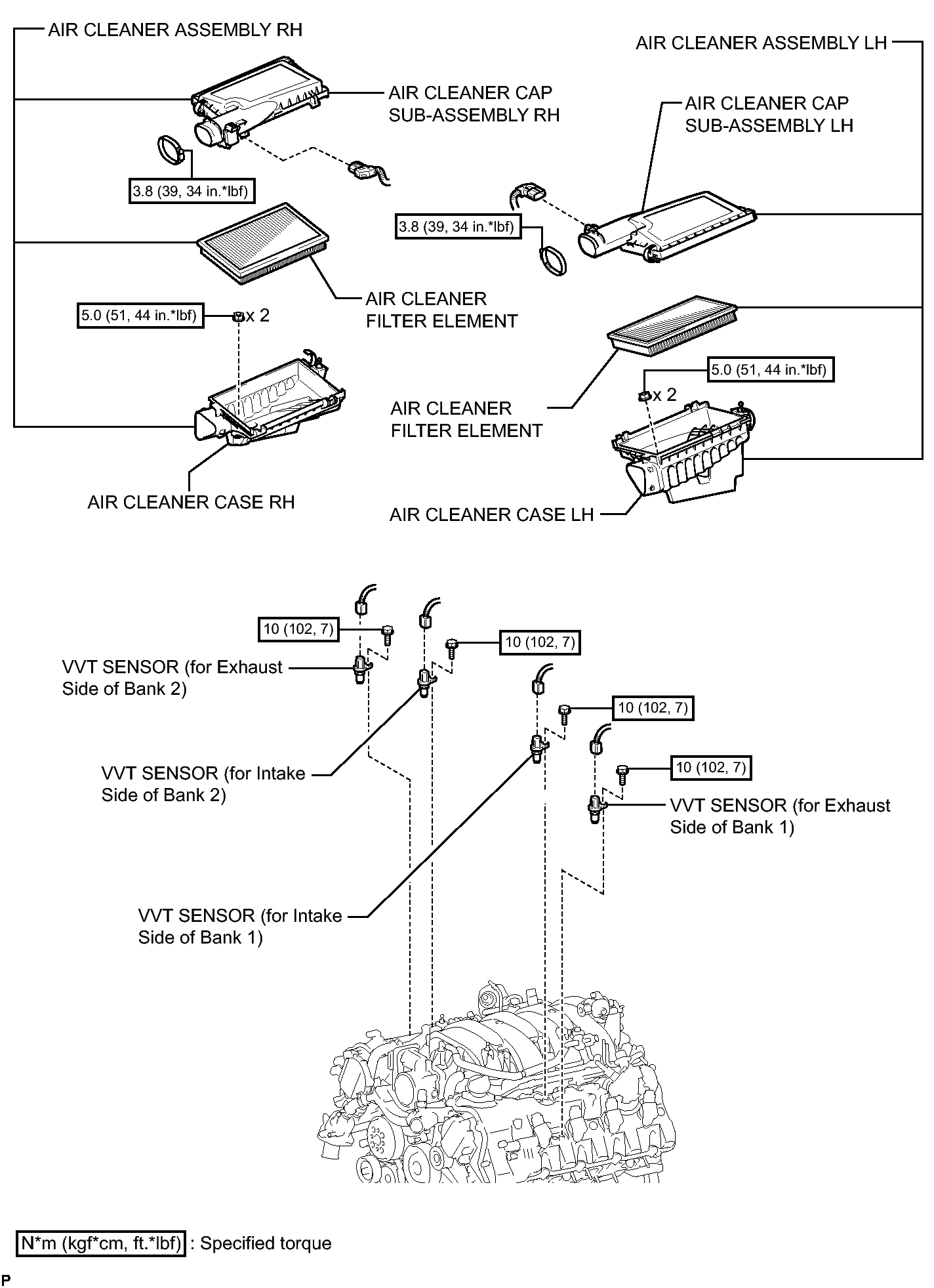

Fig 1: Identifying VVT Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY420255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
