Model Code Identification

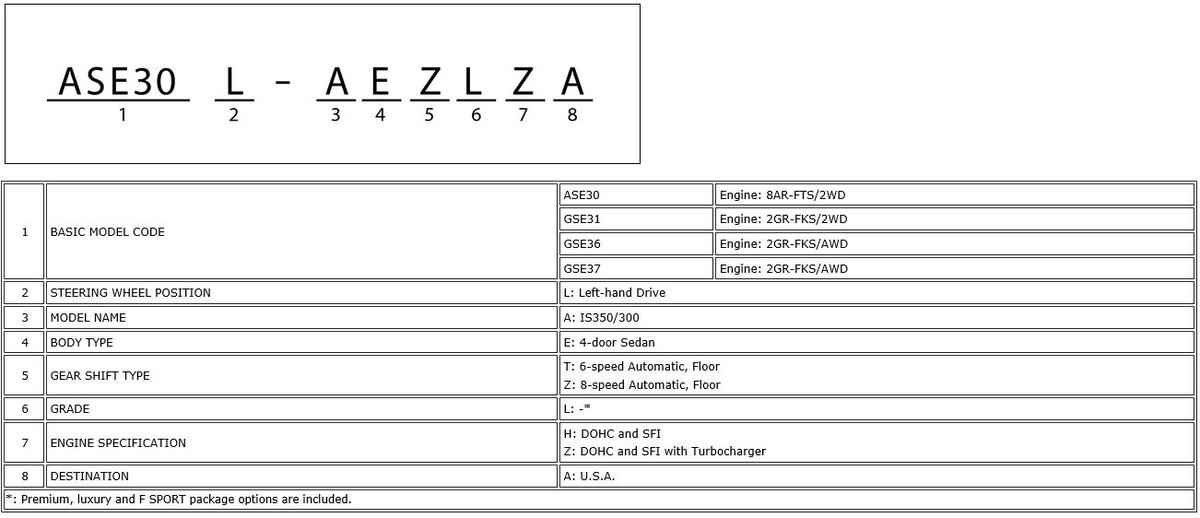

Fig 1: Model Code Identification [2018-20]
G00554583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

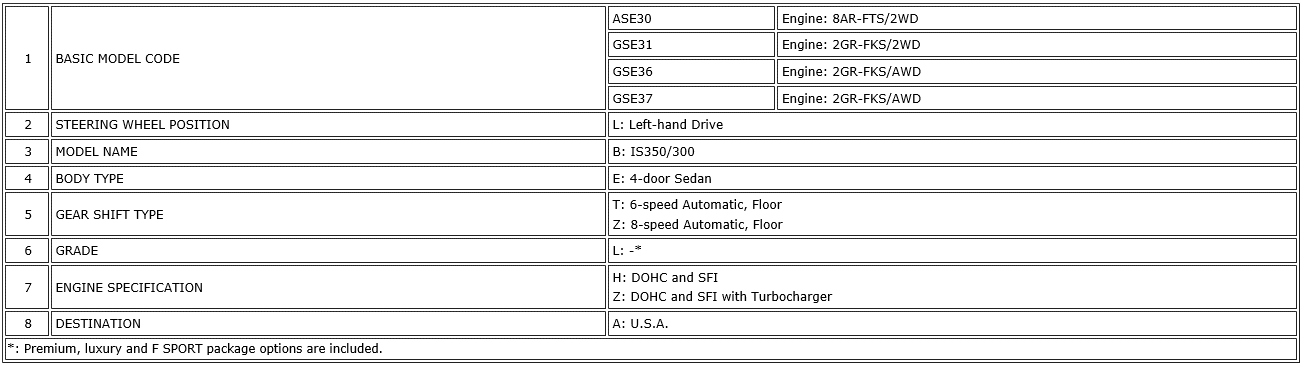

Fig 2: Model Code Identification [2021]
G00405861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

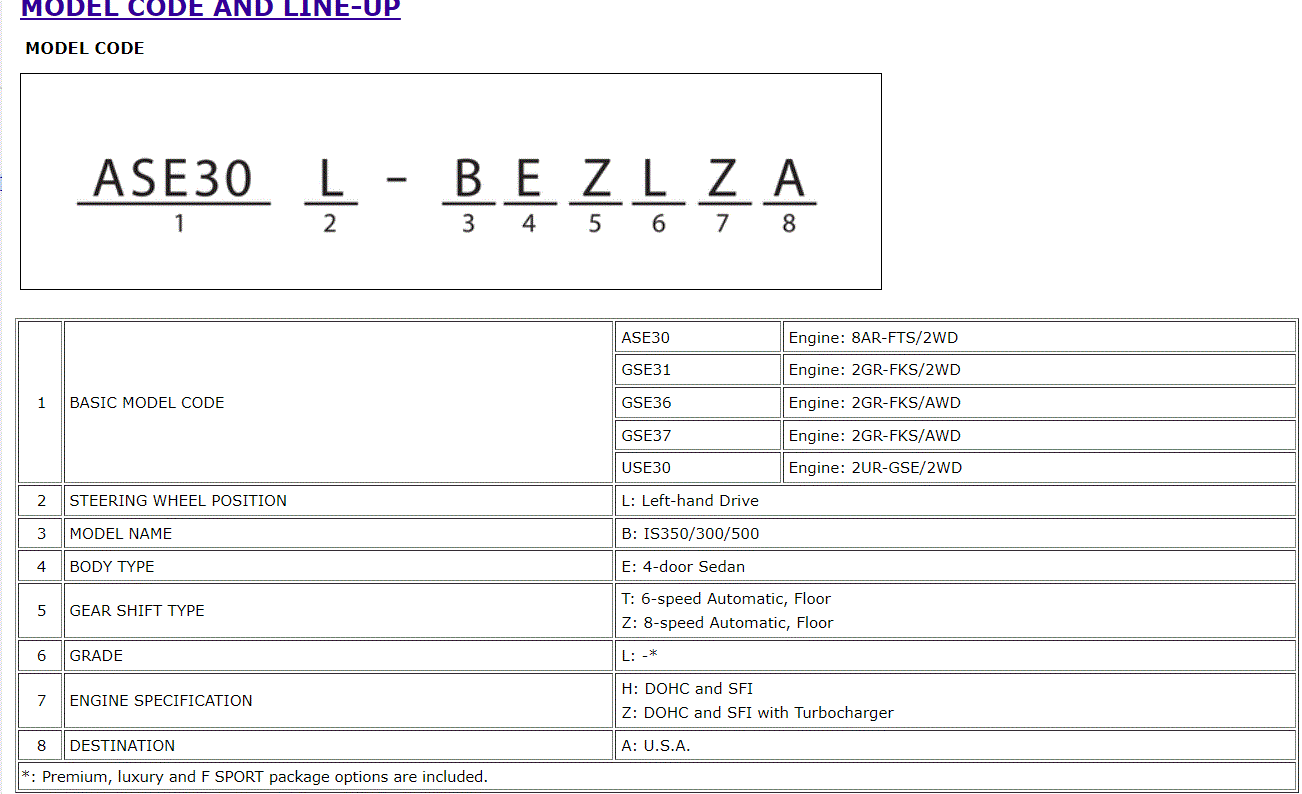

Fig 3: Model Code Identification [2022-24]
G00603003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
