Removal [01/2017 - ]: Procedure

  1. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    Refer to REMOVAL [01/2017 - ]

  2. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

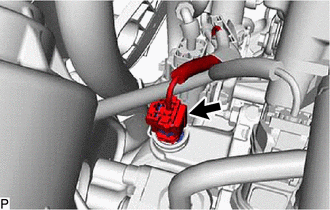

    1. Disconnect the engine coolant temperature sensor connector.
      GTY810599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

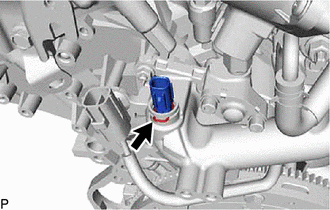

    2. Remove the clip and engine coolant temperature sensor from the rear water by-pass joint.
      GTY810594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
