Home >> Lexus >> 2021 >> LS 500 Base, RWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - Service Information >> ECM >> Components [12/2017 - ]

Components [12/2017 - ]

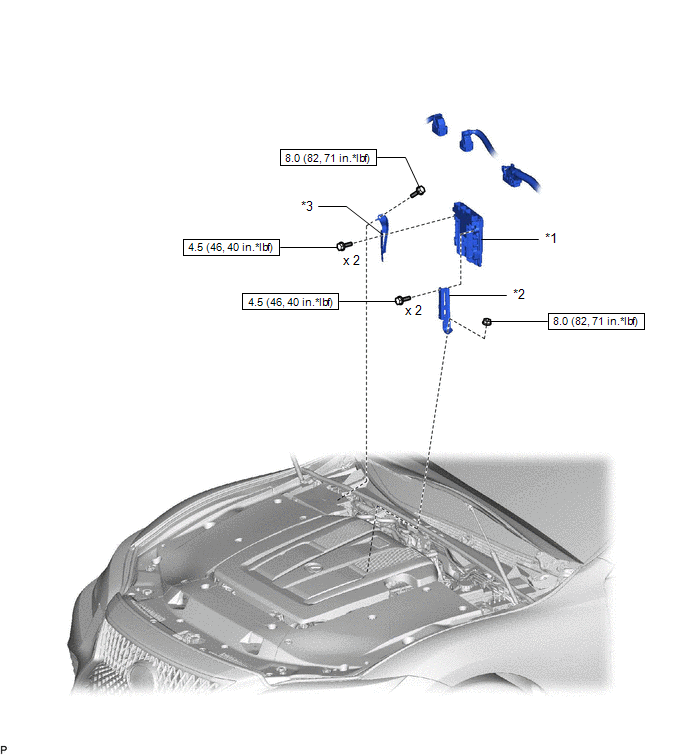

Fig 1: ECM Replacement Components With Torque Specifications
GTY807436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ECM *2 NO. 1 ECM BRACKET
*3 NO. 2 ECM BRACKET - -
N.m (kgf/cm, ft.lbf): Specified torque - -
