Home >> Lexus >> 2021 >> NX 300h Base >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (Service Information) >> Crankshaft Position Sensor >> Removal [10/2014 - ] >> Procedure

Removal [10/2014 - ]: Procedure

  1. REMOVE CRANKSHAFT POSITION SENSOR

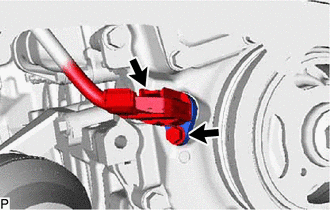

    GTY512098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the crankshaft position sensor connector.
    2. Remove the bolt and crankshaft position sensor.
