Removal [12/2021 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    See step  1

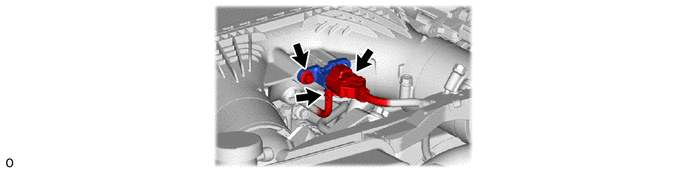

  2. REMOVE NO. 2 TURBO PRESSURE SENSOR
    1. GTY1042434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

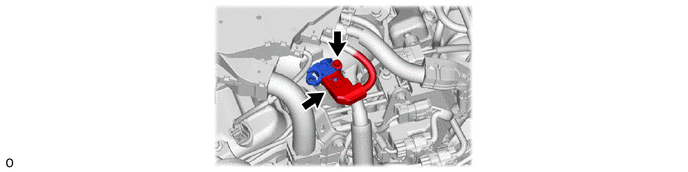

  3. REMOVE NO. 3 TURBO PRESSURE SENSOR
    1. GTY1042433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
