Air Supply Control Valve

Air supply control valves direct air pump output to the exhaust manifold, or to the catalyst, depending upon the engine control system.

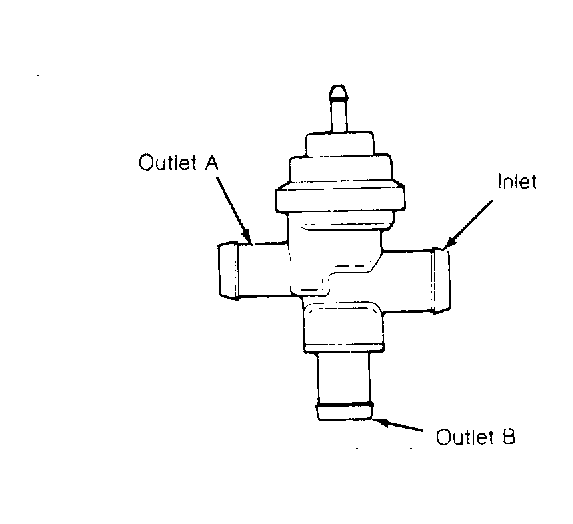

Fig 1: Air Supply Control Valve
G13481
