Trouble Shooting

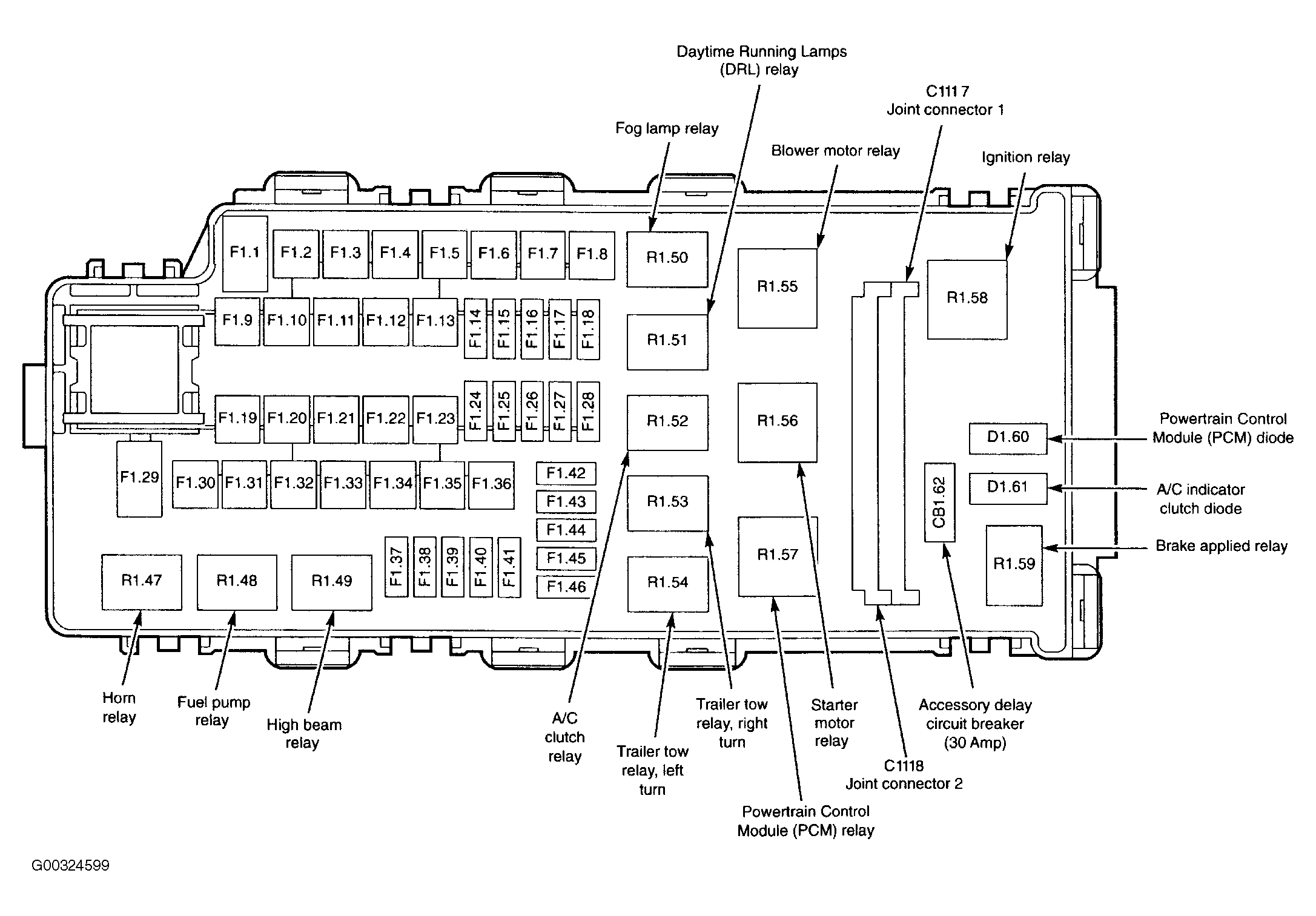

Verify customer compliant by operating starting system. Check battery for state of charge. Check cable connections at battery and starter motor. Ensure transmission is fully engaged in Park or Neutral position. Check maxi-fuse No. 12 (50-amp) and fuse No. 23 (30-amp) in battery junction box. See Fig 1 . Check fuse No. 29 (10-amp) in central junction box. See Fig 2 . On models equipped anti-theft system, ensure anti-theft system is operating properly. See appropriate ANTI-THEFT SYSTEMS article for additional information. If problem is found, repair as necessary. If problem is not found, repair by symptom. See SYMPTOM INDEX table under SYSTEM TESTS.
