Home >> Lincoln >> 2006 >> LS >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Acceleration Control Belt >> Removal And Installation >> Accelerator Pedal >> Notes

Accelerator Pedal: Notes

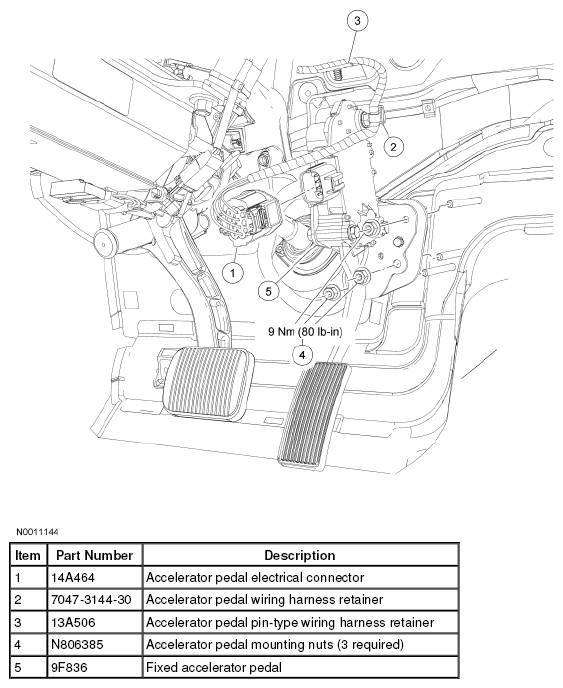

Fig 1: Accelerator Pedal Replacement Components - Fixed Pedal With Torque Specifications
G04691899Courtesy of FORD MOTOR CO.

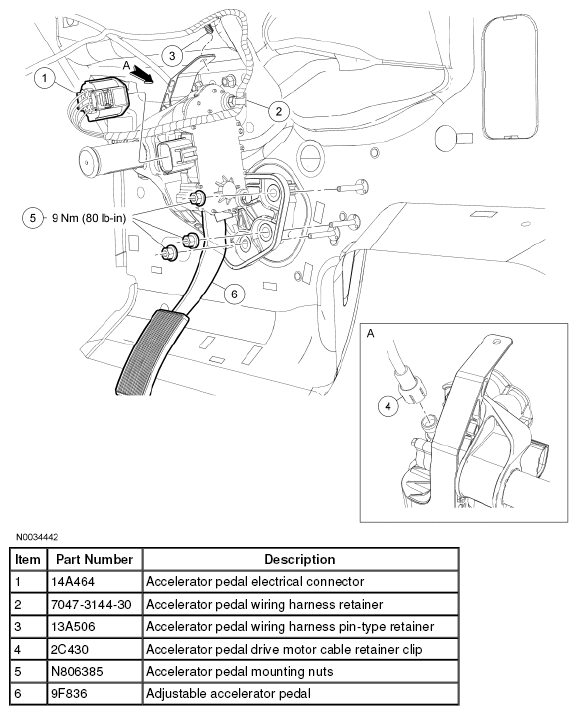

Fig 2: Accelerator Pedal Replacement Components - Adjustable Pedal With Torque Specifications
G04691900Courtesy of FORD MOTOR CO.
