Evaporative Emissions System: Maintenance

Every 12, 500 miles, check all fuel lines and connections for chafing, leakage, or deterioration. Also check fuel cap for proper sealing. Every 25, 000 miles, replace carbon canisters.

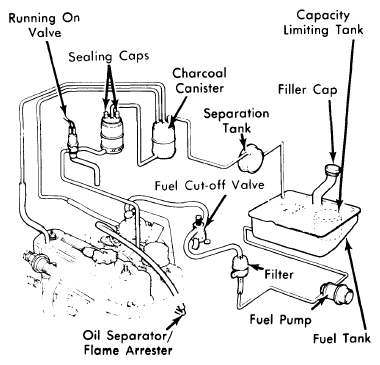

Fig 1: MGB Fuel Evaporation System
G09312995Courtesy of NOT AVAILABLE
