MAZDA Piston Engine Vacuum Diagrams

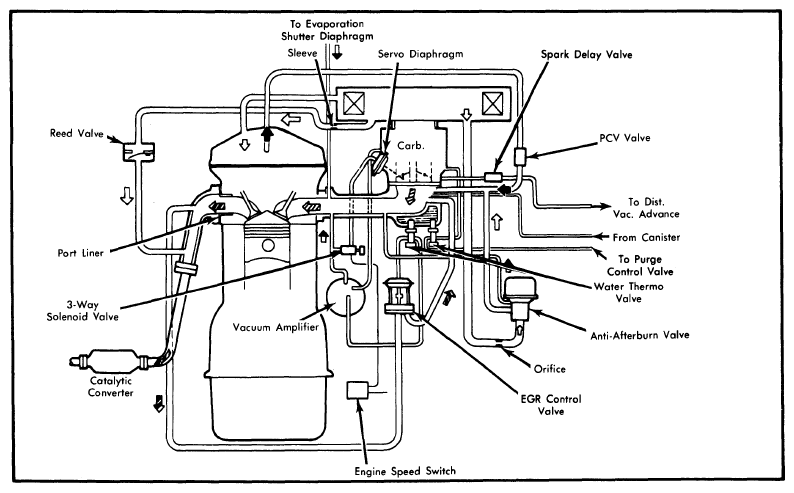

Fig 1: Mazda GLC Vacuum Hose Routing

Courtesy of MAZDA MOTORS CORP.

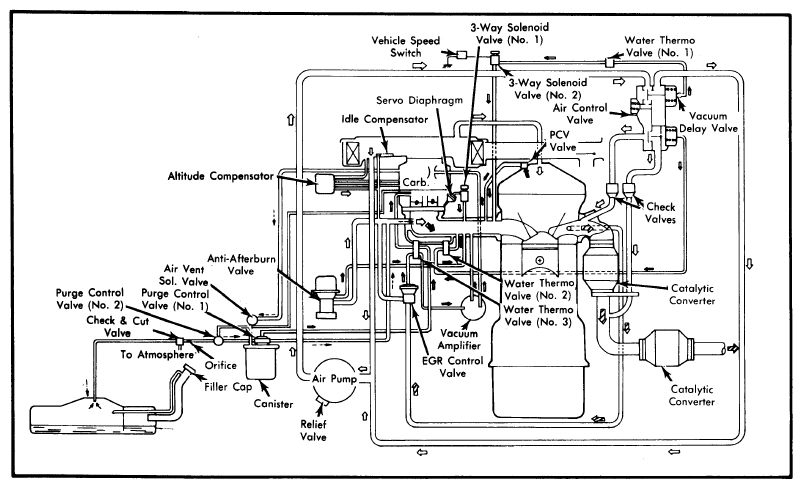

Fig 2: Mazda GLC Wagon Vacuum Hose Routing

Courtesy of MAZDA MOTORS CORP.

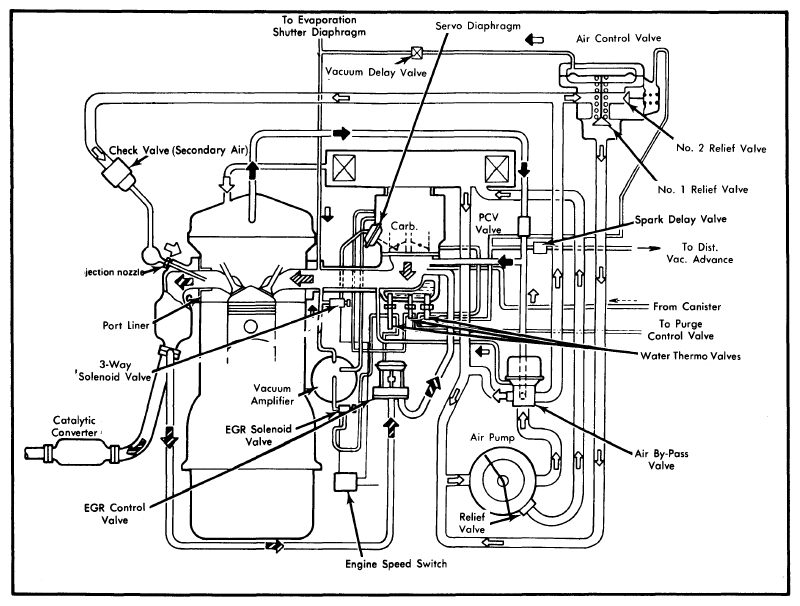

Fig 3: Mazda 626 Vacuum Hose Routing

Courtesy of MAZDA MOTORS CORP.

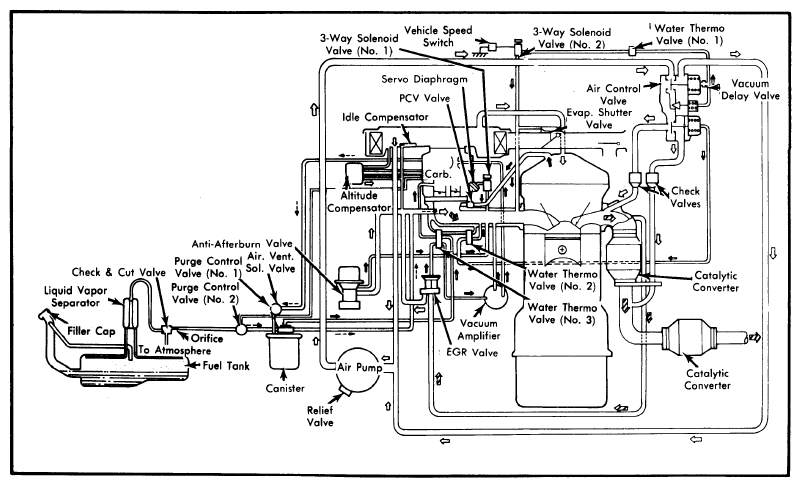

Fig 4: Mazda B2000 Vacuum Hose Routing (Federal Models)

Courtesy of MAZDA MOTORS CORP.

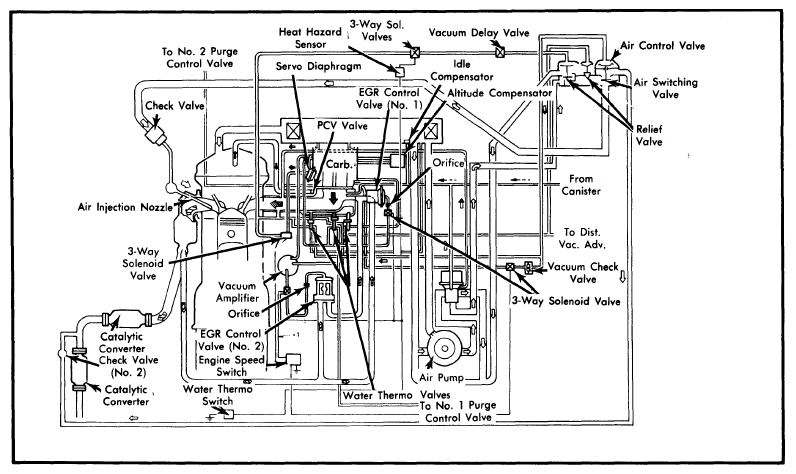

Fig 5: Mazda B2000 Vacuum Hose Routing (Calif. Models)

Courtesy of MAZDA MOTORS CORP.
