Anti-AFTERBURN Valve

Located forward of carburetor on top of intake manifold, this valve adds fresh air directly to intake manifold to balance air/fuel mixture and prevent afterburning.

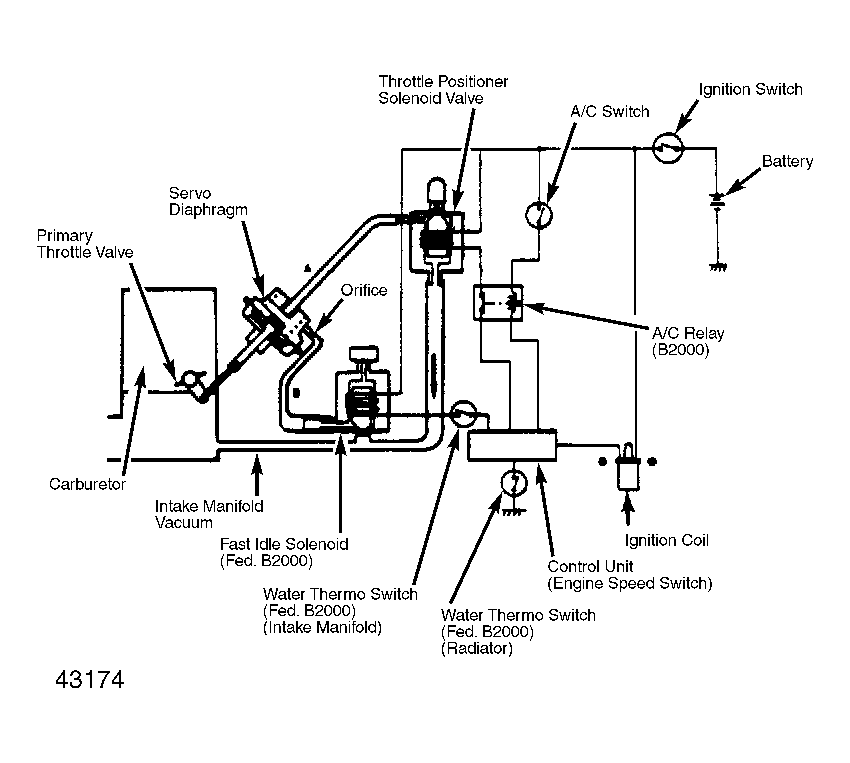

Fig 1: Throttle Positioner System (TPS)
G43174
