Fuel Injection System - Diesel: Wiring Diagram

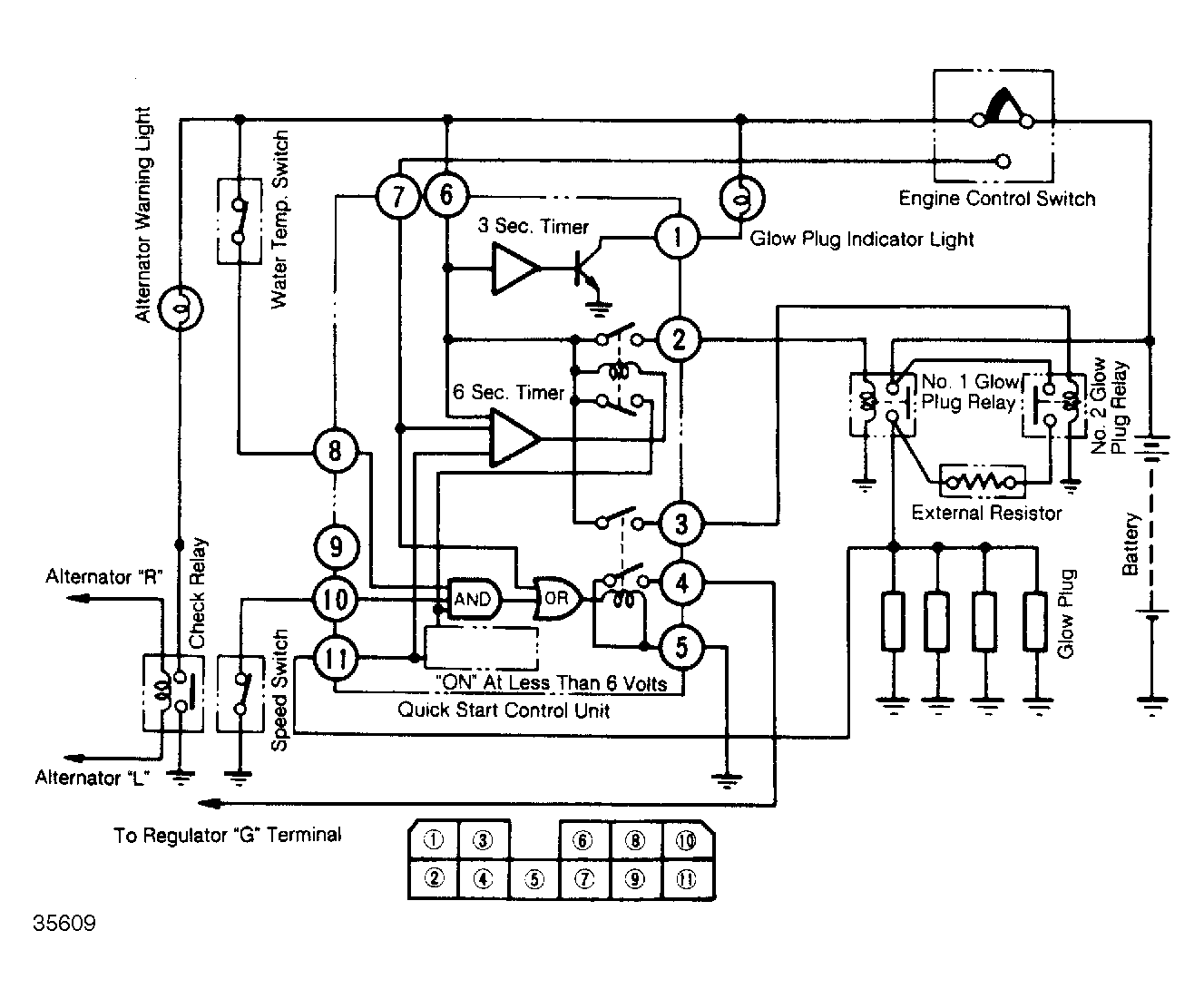

Fig 1: Mazda 626 Diesel Glow Plug Circuit Diagram

G35609
