No. 1 Air Control Valve (ACV)

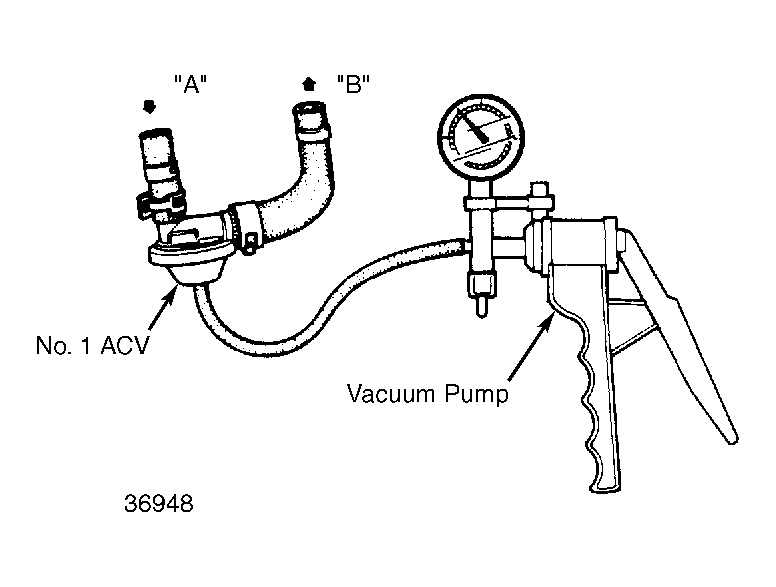

Fig 1: Testing No. 1 Air Control Valve
G36948

Remove ACV. With vacuum pump attached, apply vacuum gradually. ACV stem should begin to move at 7.1-11.0 in. Hg of vacuum. Replace ACV if not within specification.
