Wiring Diagrams

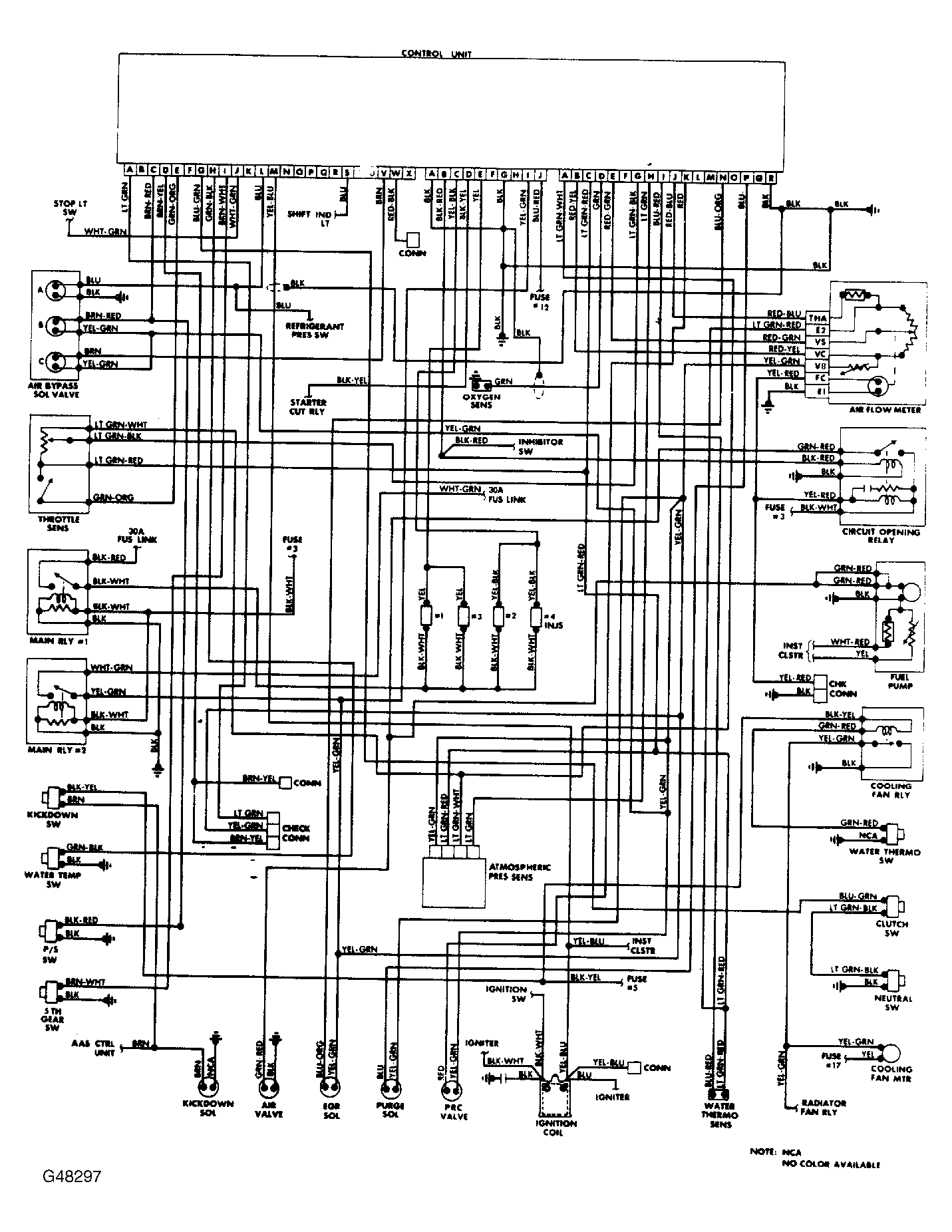

Fig 1: 626 Computer Control System Wiring Diagram

G48297

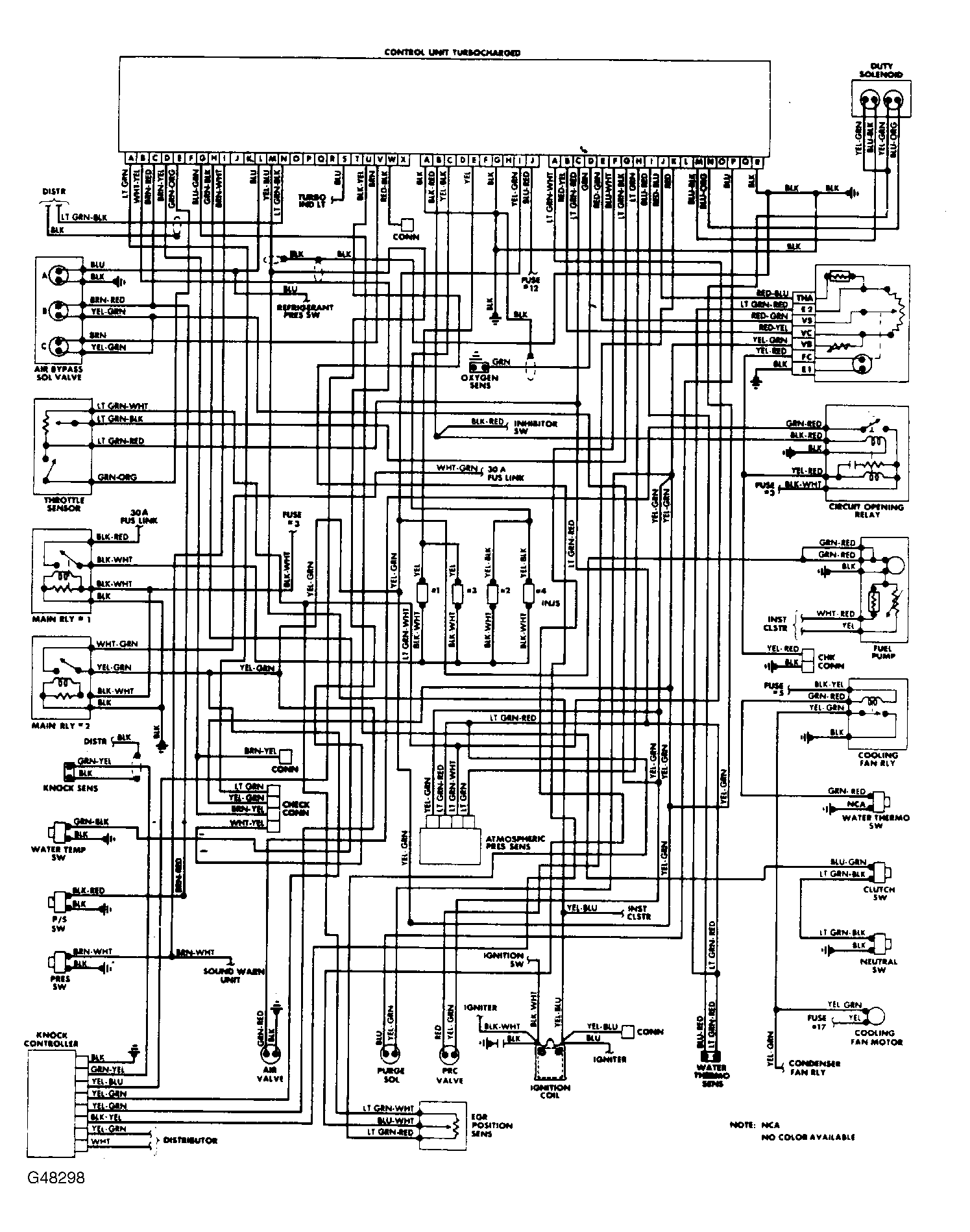

Fig 2: 626 Turbo Computer Control System Wiring Diagram

G48298
