EGR Modulator Valve: Non-Turbo

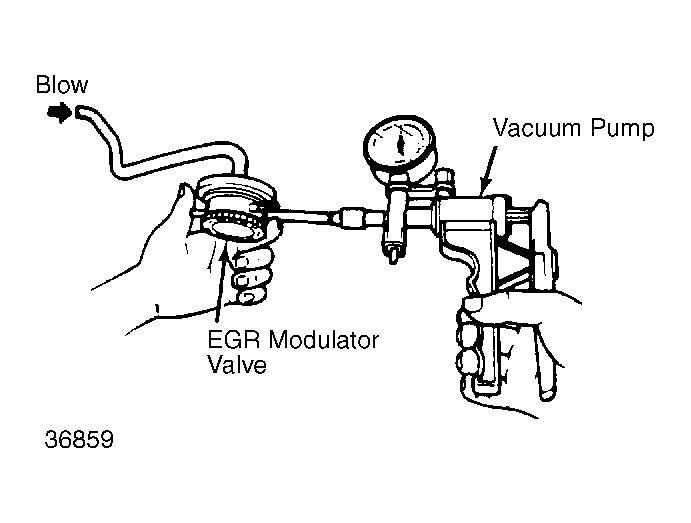

Remove EGR modulator valve. Connect vacuum pump to No. 1 port and plug No. 2 and No. 3 ports. See Fig 1 . Apply vacuum and blow into exhaust gas port. Ensure vacuum holds. Release exhaust gas port and ensure vacuum is released. Replace EGR modulator valve if defective.
