Deceleration Spark Advance: B2600

  1. Bring engine to normal operating temperature. Connect tachometer and timing light. Observe timing marks. Increase engine speed gradually and check that ignition timing suddenly advances at 1300-1450 RPM.
  2. Connect voltmeter to Green wire (terminal "f") of distributor vacuum solenoid valve connector. See Fig 1 .

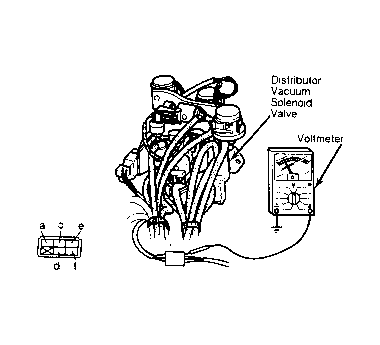

    Fig 1: Connector Terminal (B2600)
    G65752Courtesy of MAZDA MOTORS CORP.
  3. Observe voltmeter. Slowly increase engine to above 1300 RPM. Voltmeter should read zero volts. Allow engine to slow to below 1300 RPM. Voltmeter should read 12 volts.
