Intake Air Temperature Sensor (Dynamic Chamber)

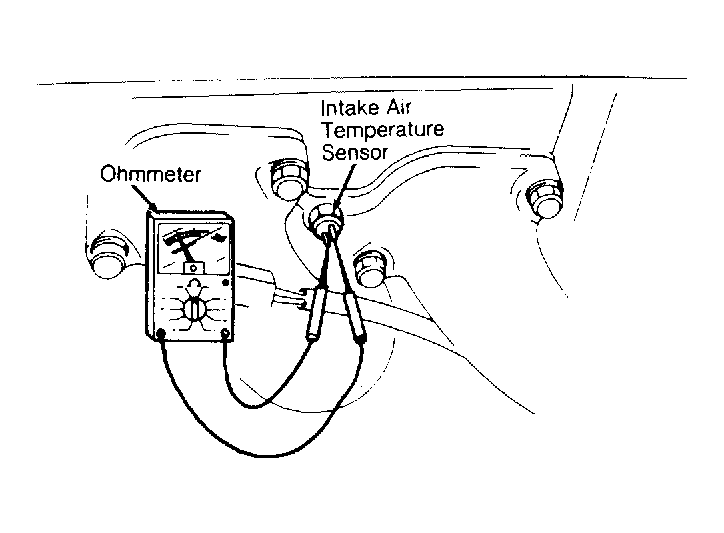

Disconnect intake air temperature sensor connector. Measure resistance of sensor using INTAKE AIR TEMPERATURE SENSOR RESISTANCE table. See Fig 1 .
INTAKE AIR TEMPERATURE SENSOR RESISTANCE
| Temperature °F (°C) | Ohms |
|---|---|
| 68 (20) | 37,300-45,600 |
| 122 (50) | 10,500-12,900 |
| 185 (85) | 3100-3800 |
