Home >> Mazda >> 1989 >> RX-7 Turbo >> Repair and Diagnosis >> Engine Performance >> System >> Tests W/Codes >> Code Charts

Code Charts

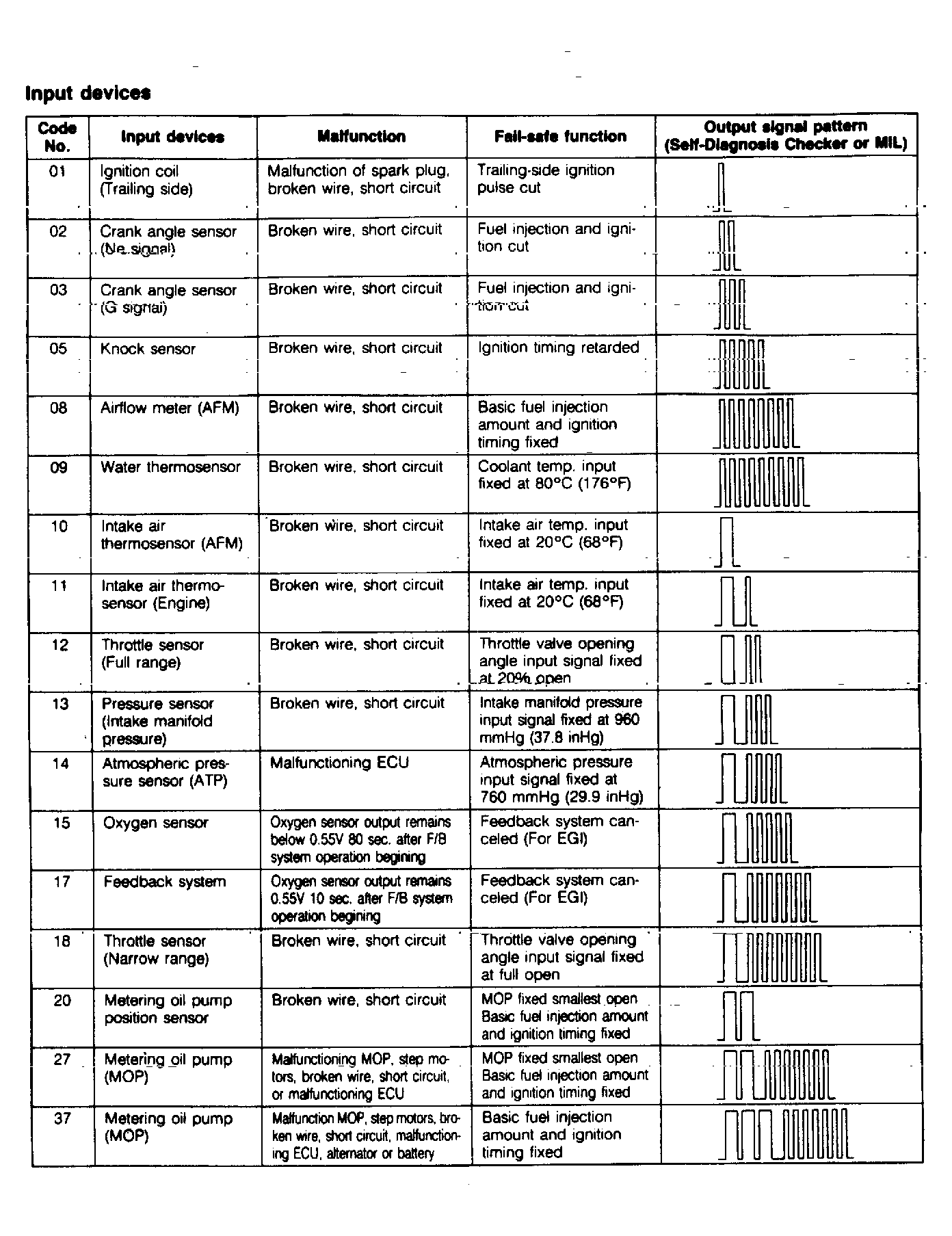

Fig 1: RX7 Trouble Code Identification (1 of 2)

G117674

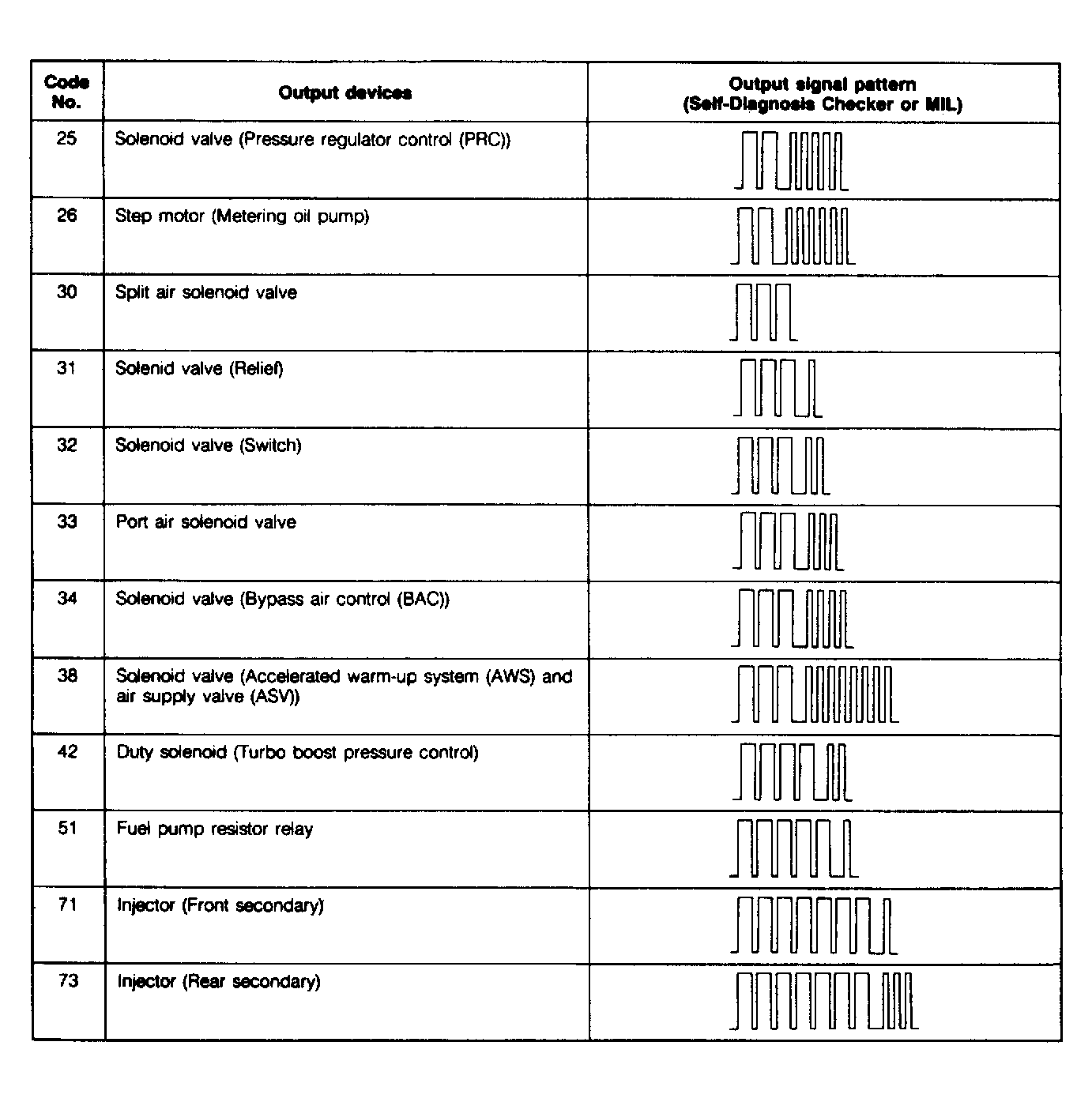

Fig 2: RX7 Trouble Code Identification (2 of 2)

G117675
