Code 12: Throttle Sensor
Code 12: Throttle Sensor

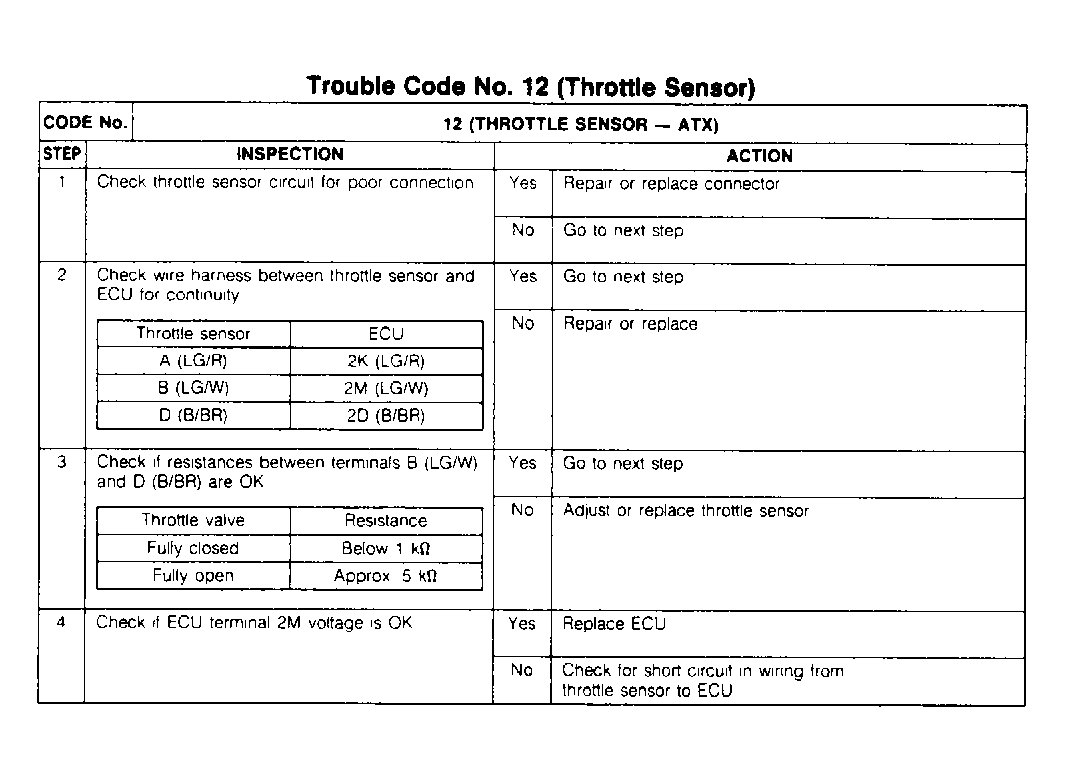

Fig 1: Code 12: Throttle Sensor Chart
Courtesy of MAZDA MOTORS CORP.

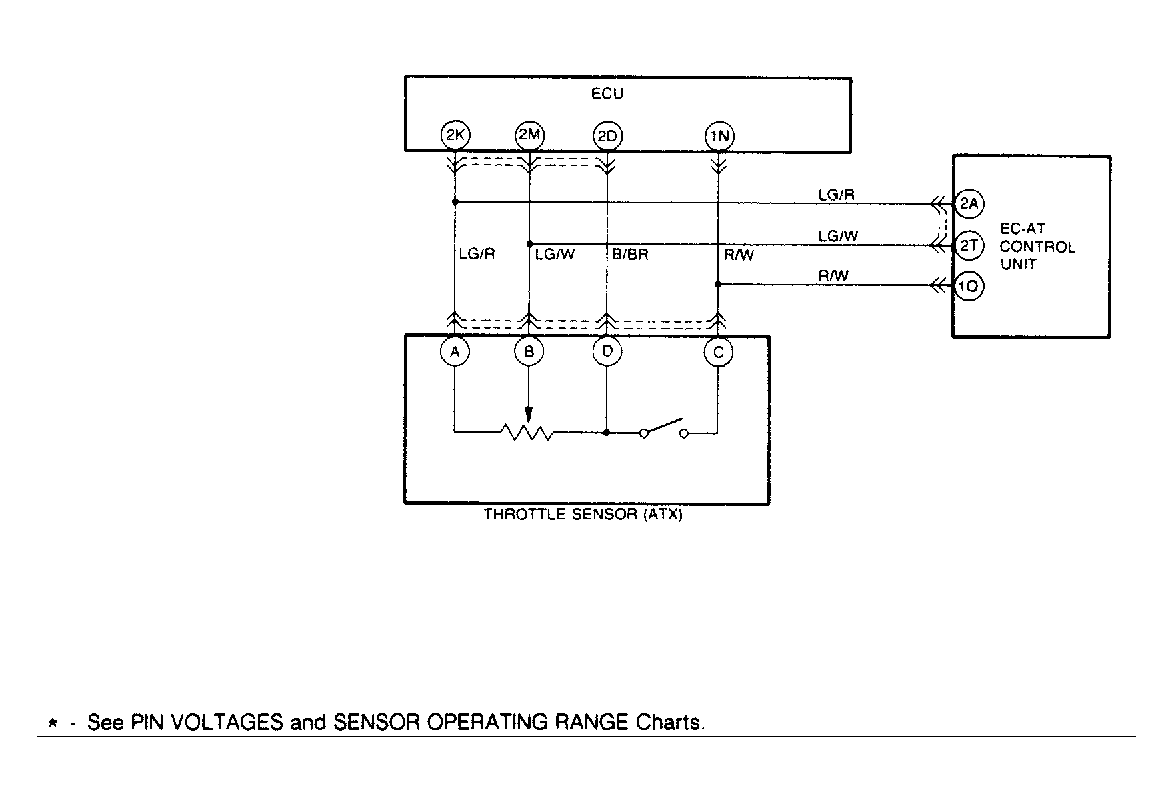

Fig 2: Code 12: Throttle Sensor Circuit Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
