Code 17: Feedback System
Code 17: Feedback System

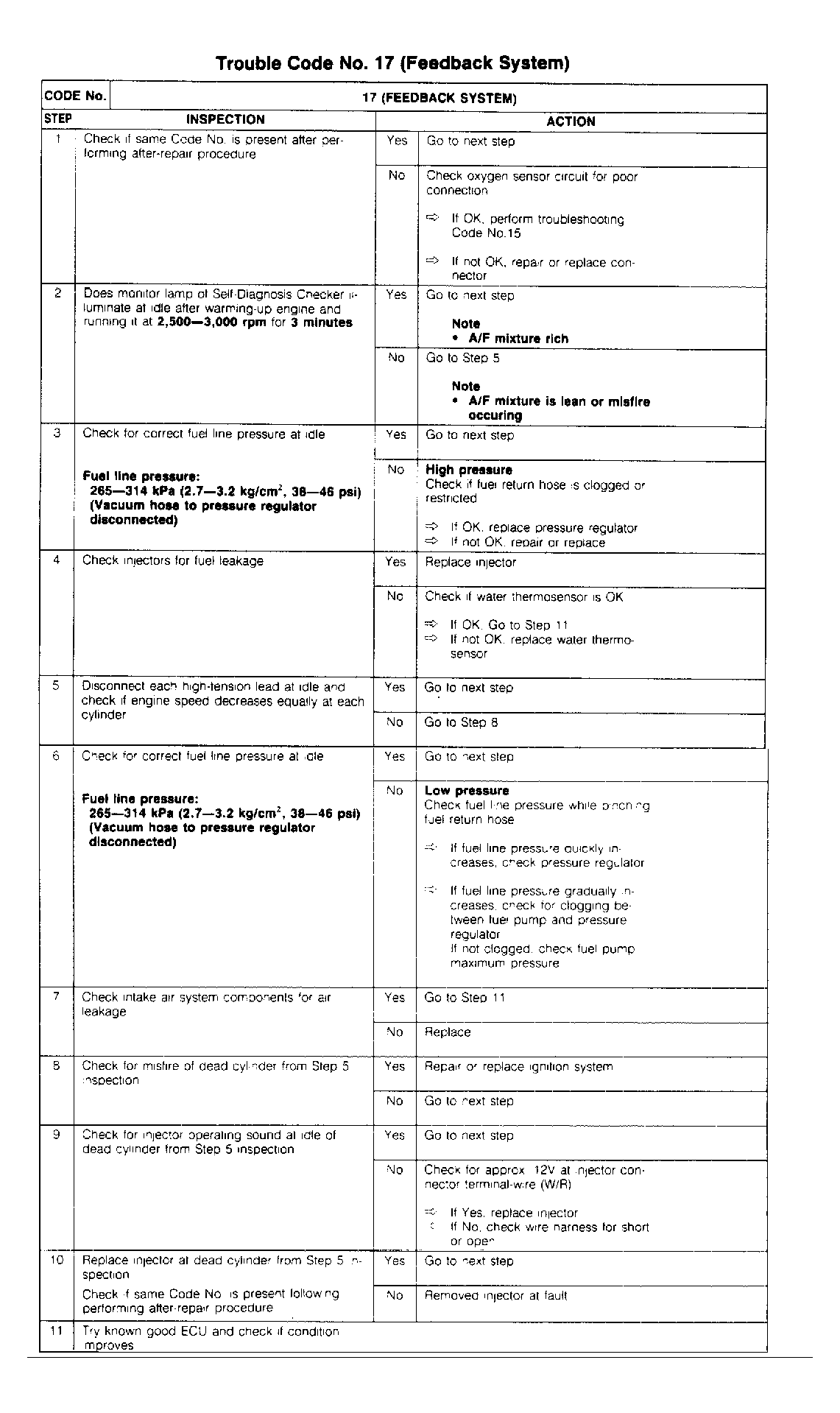

Fig 1: Code 17: Feedback System Chart
Courtesy of MAZDA MOTORS CORP.

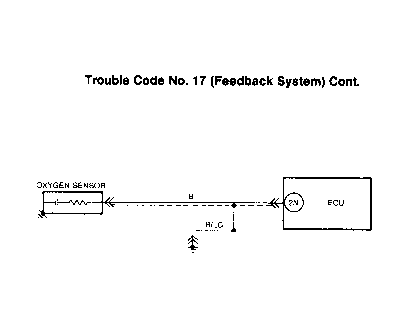

Fig 2: Code 17: Feedback System Circuit Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
