Code 2: Ne Signal-Distributor
Code 2: Ne Signal-Distributor

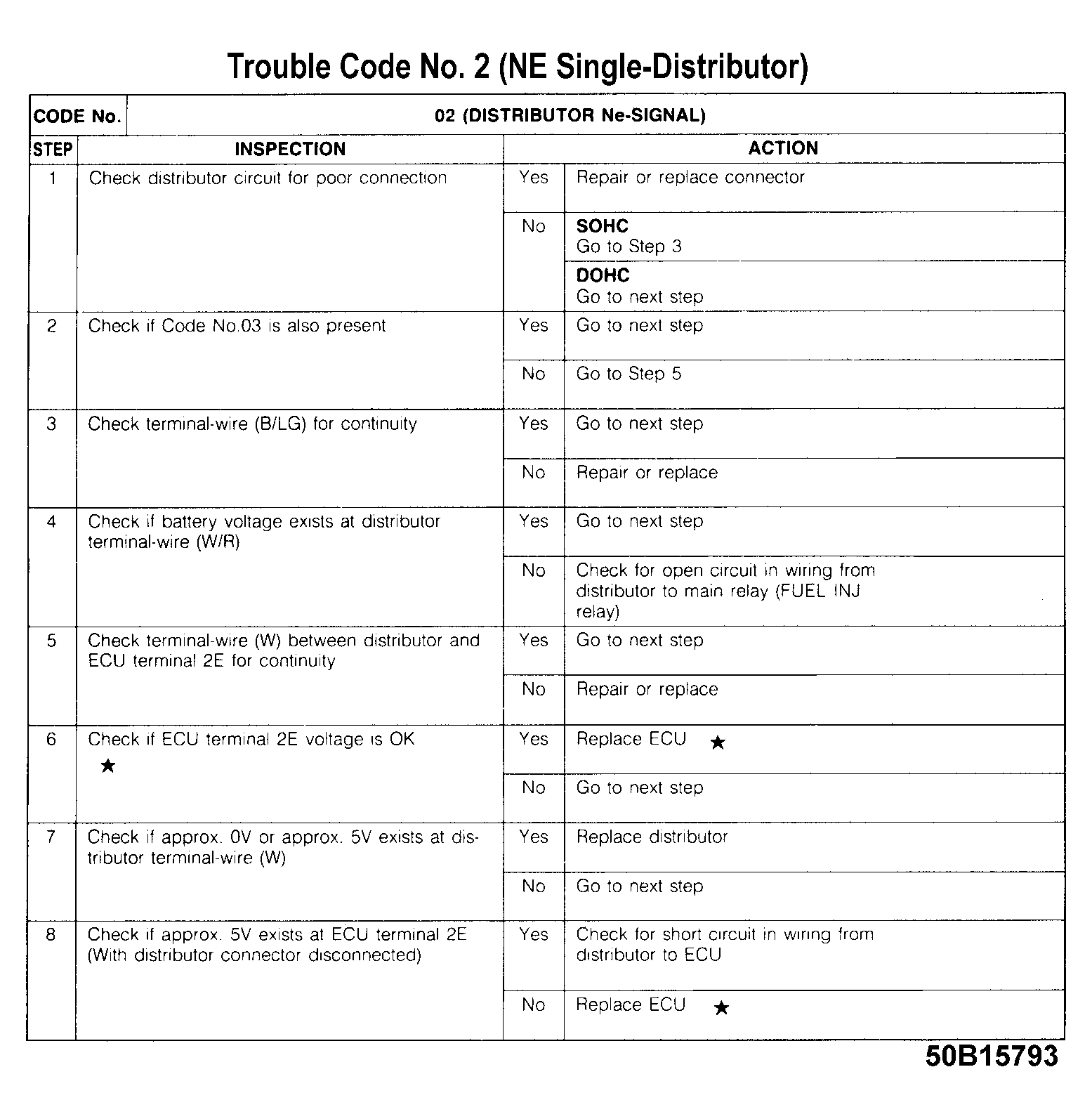

Fig 1: Code 2: NE Signal-Distributor Chart
Courtesy of MAZDA MOTORS CORP.

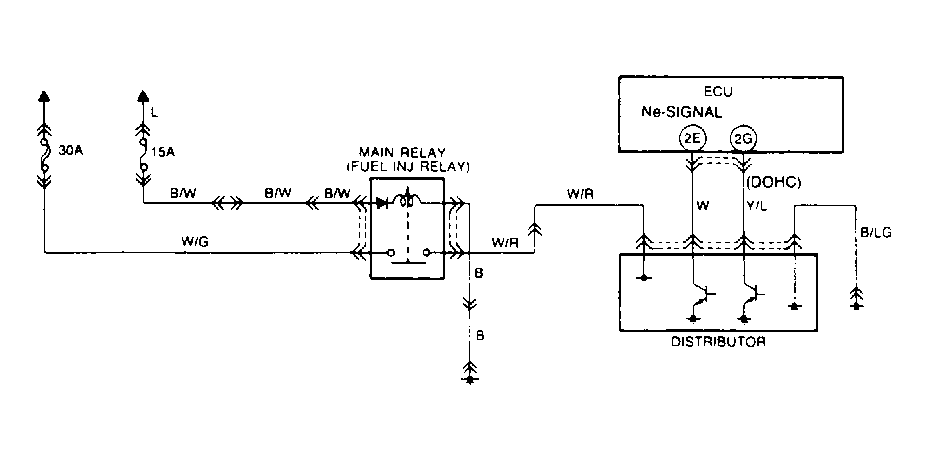

Fig 2: Code 2: NE Signal-Distributor Circuit Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
