Code 9: Coolant THERMOSENSOR

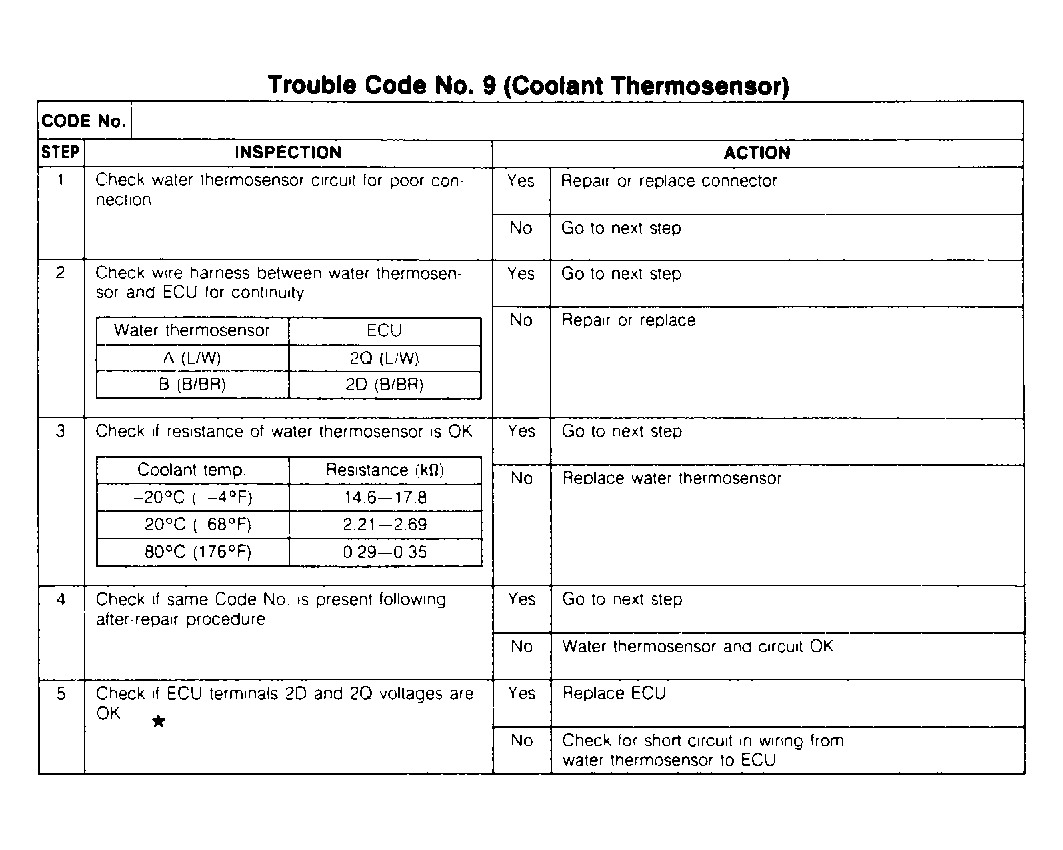

Fig 1: Code 9: Coolant Thermosensor Chart

G90B21510

Courtesy of MAZDA MOTORS CORP.

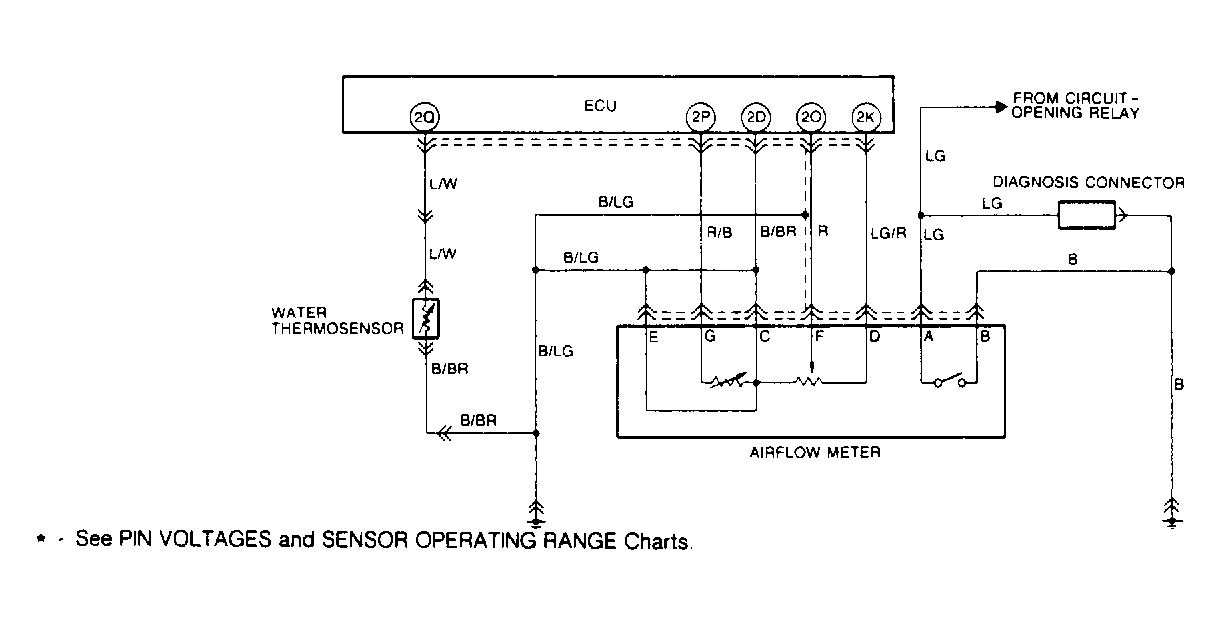

Fig 2: Code 9: Coolant Thermosensor Circuit Diagram

G90C21644

Courtesy of MAZDA MOTORS CORP.
