Switching Solenoid Valve

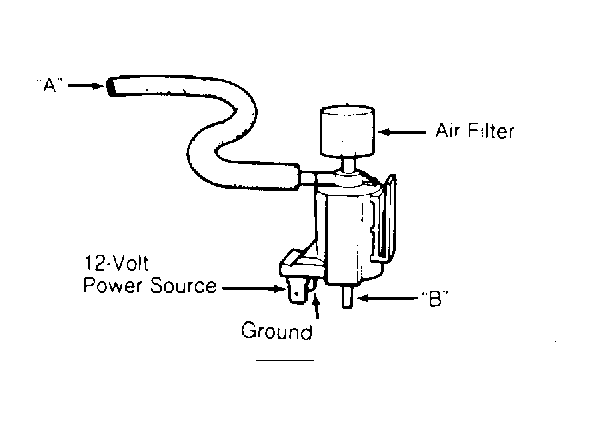

  1. Disconnect vacuum hoses from switching solenoid valve. Blow through port "A". See Figure . Air should flow from port "B". Remove connector from solenoid valve.
  2. Apply battery voltage and ground to proper terminals. See Figure . Blow through port "A". Air should flow from air filter.
