System Inspection

Purge system operation takes place when vehicle is accelerating in gear (off idle), engine is at operating temperature and oxygen sensor is functioning normally. See Fig 1 .

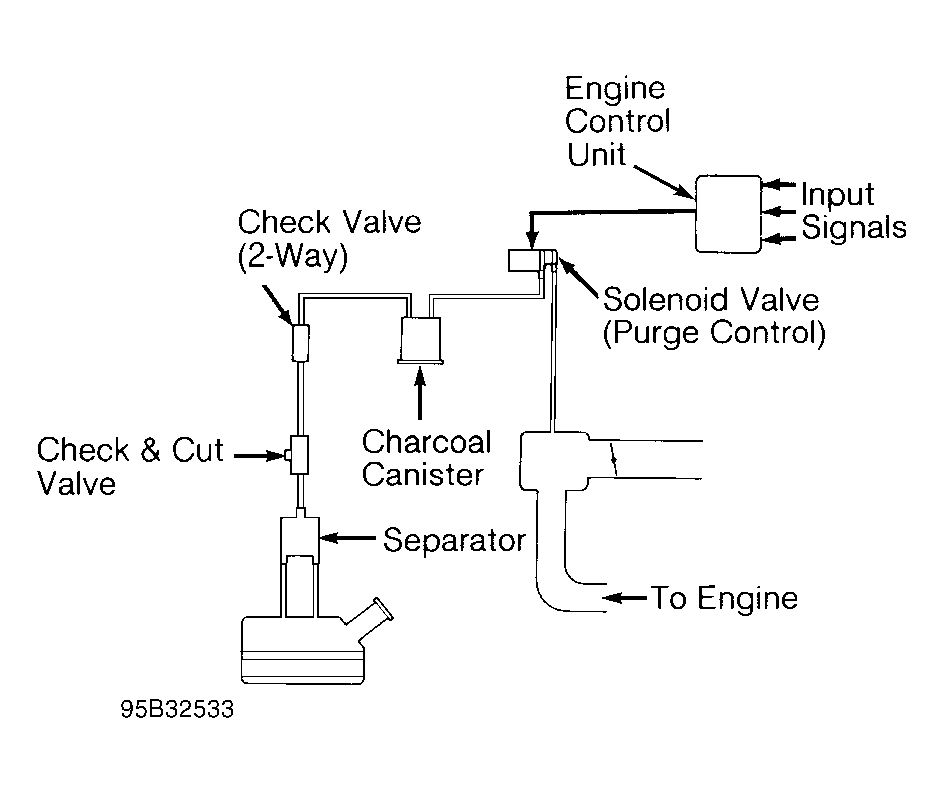

Fig 1: Typical Fuel Evaporation Control System
G95B32533Courtesy of MAZDA MOTORS CORP.
