Code 16: EGR Valve Position Sensor

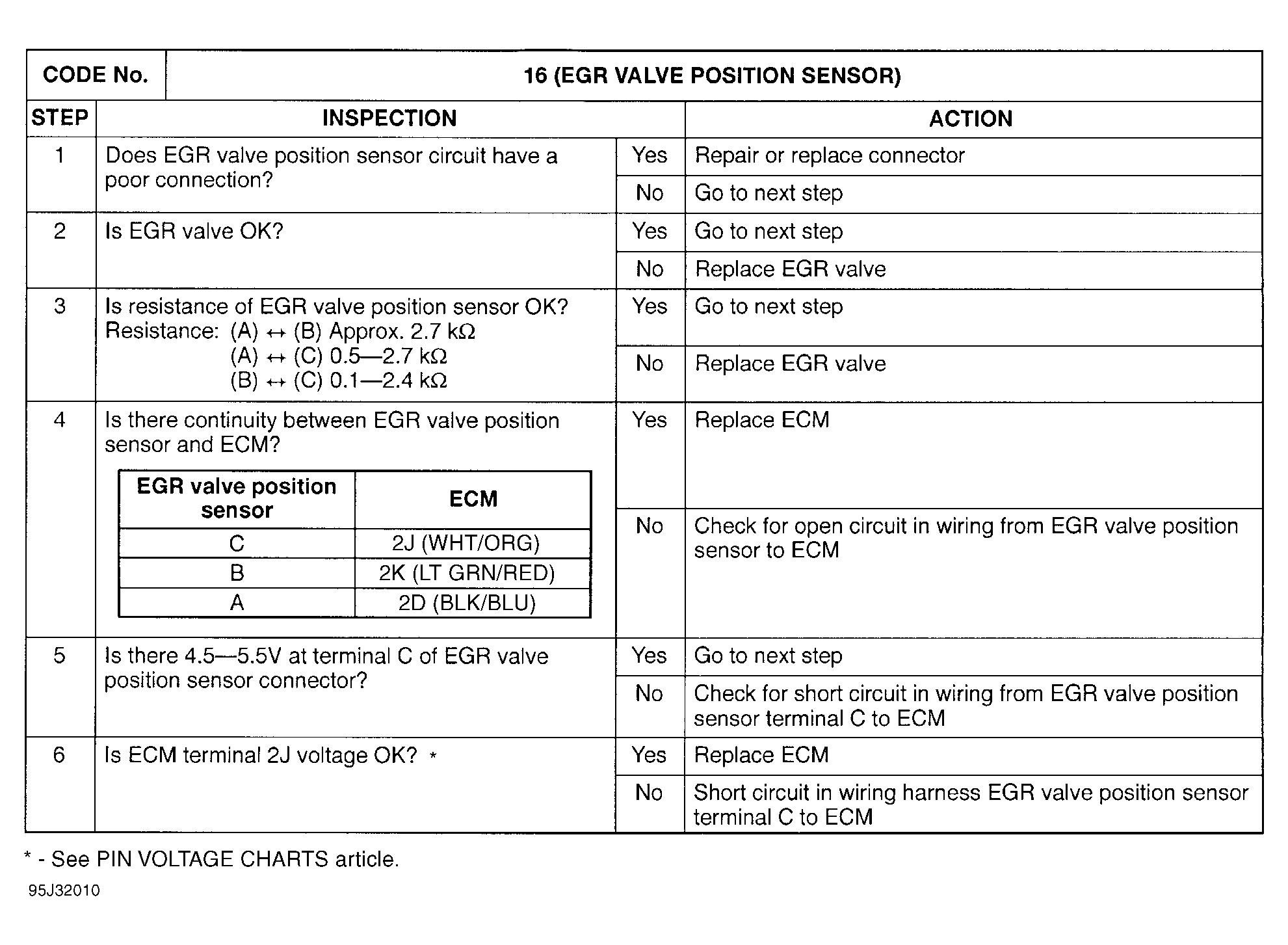

Fig 1: Trouble Code No. 16 EGR Valve Position Sensor

G95J32010

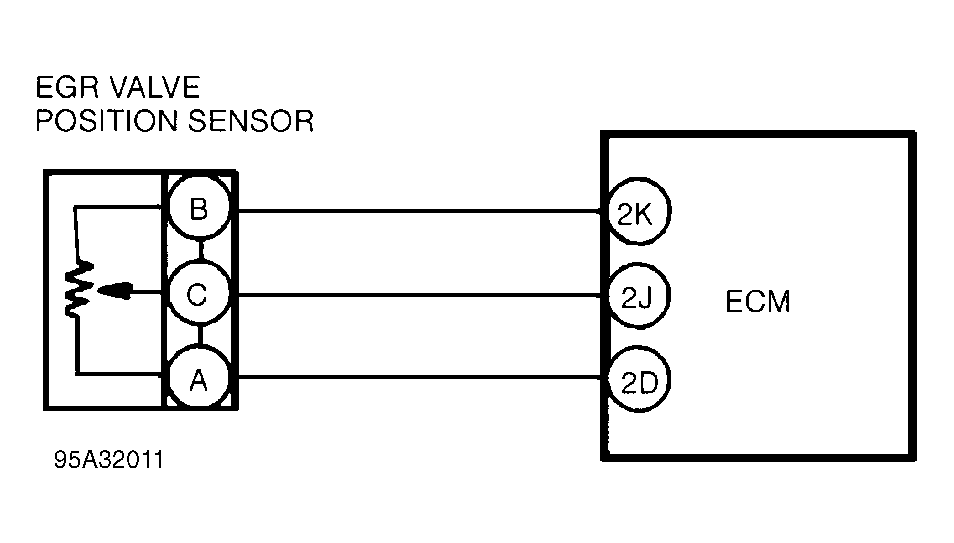

Fig 2: Trouble Code No. 16 EGR Valve Position Sensor Circuit Diagram

G95A32011
