Code 17: Heated Oxygen Sensor - Sticking

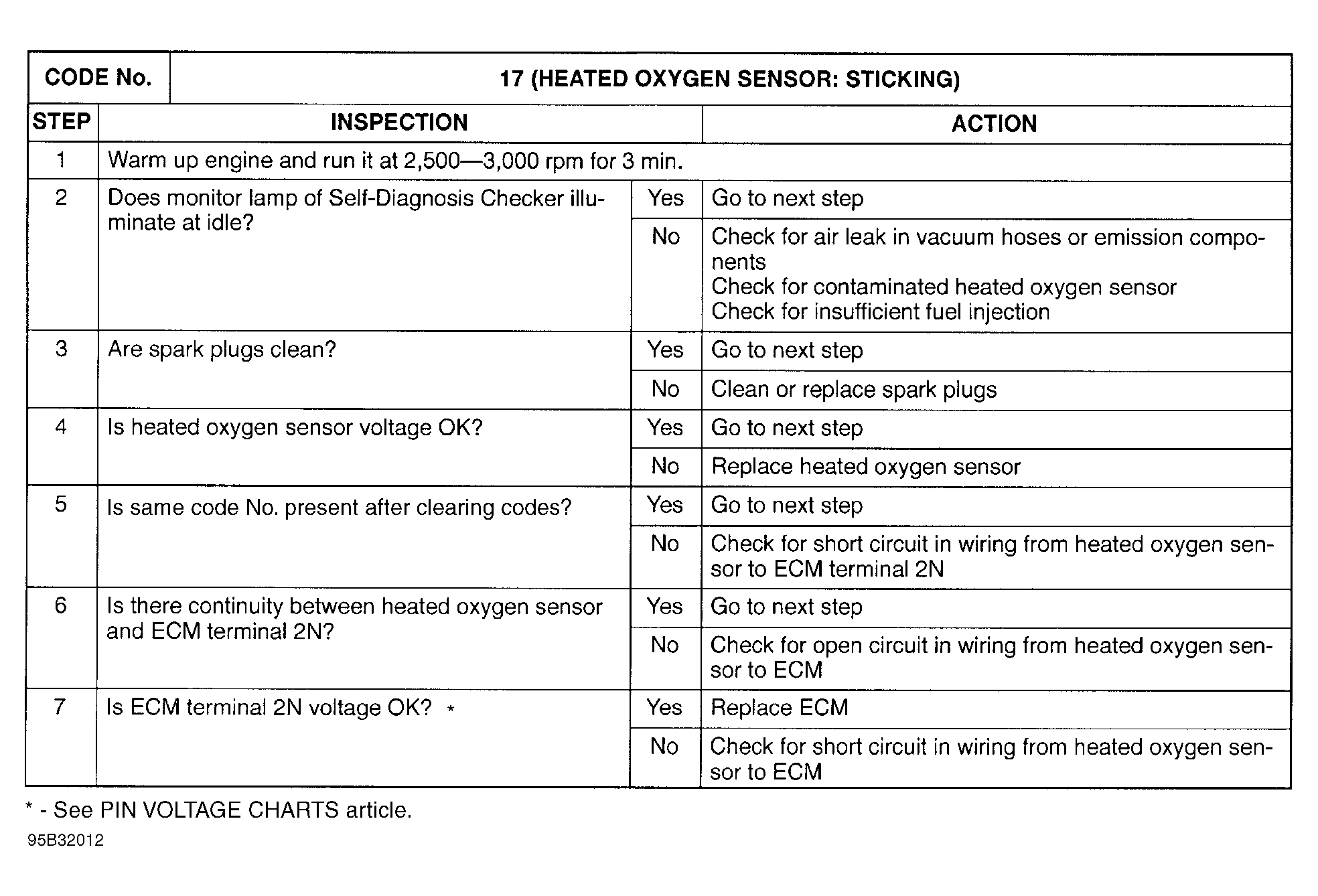

Fig 1: Trouble Code No. 17 Heated Oxygen Sensor - Sticking

G95B32012

Fig 2: Trouble Code No. 17 Heated Oxygen Sensor Circuit Diagram

G95C32013
