Home >> Mazda >> 1995 >> MX-3 Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes >> Trouble Code Charts >> Code 41: VICS Solenoid Valve

Code 41: VICS Solenoid Valve

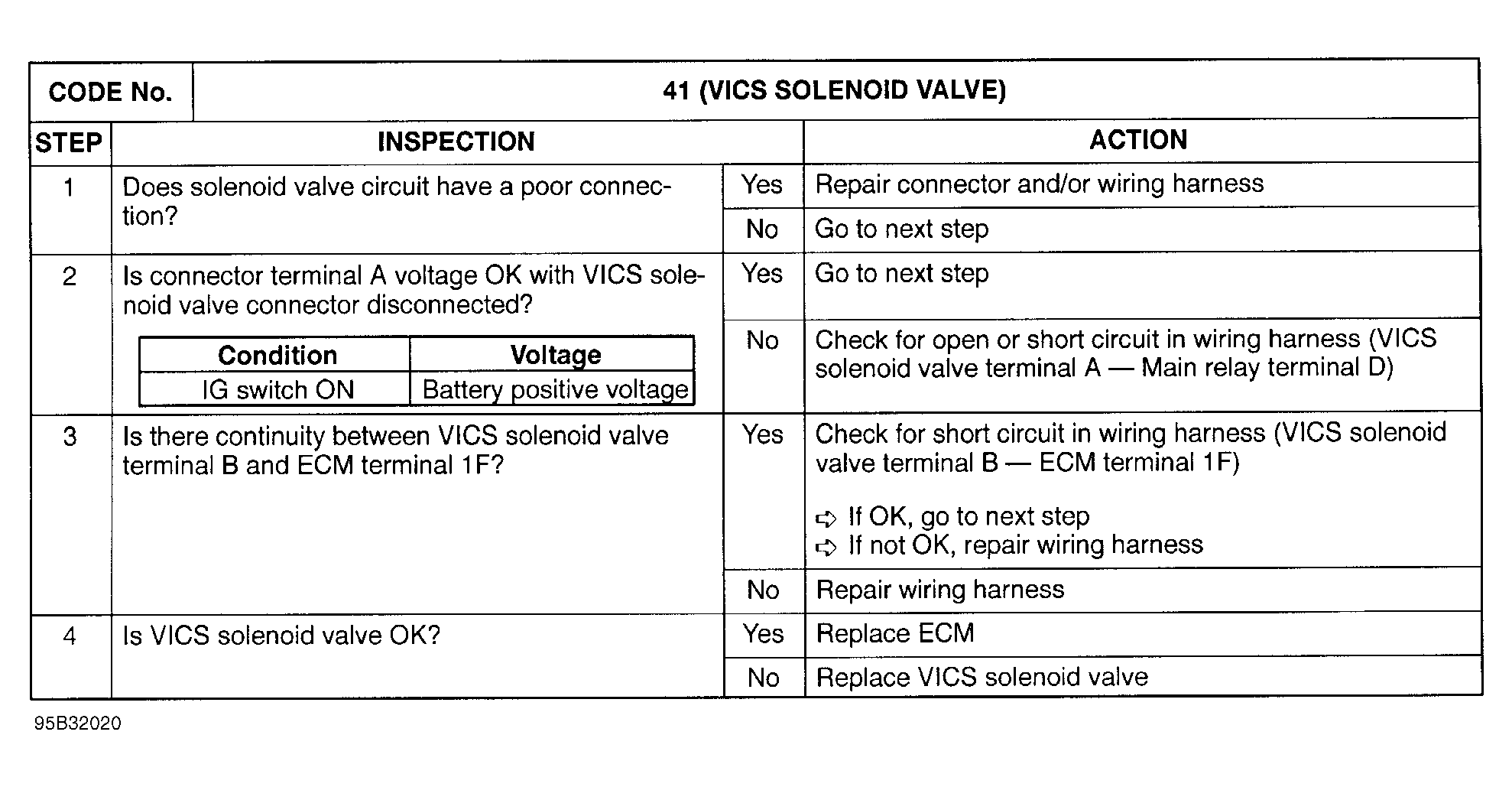

Fig 1: Trouble Code No. 41 Vics Solenoid Valve

G95B32020

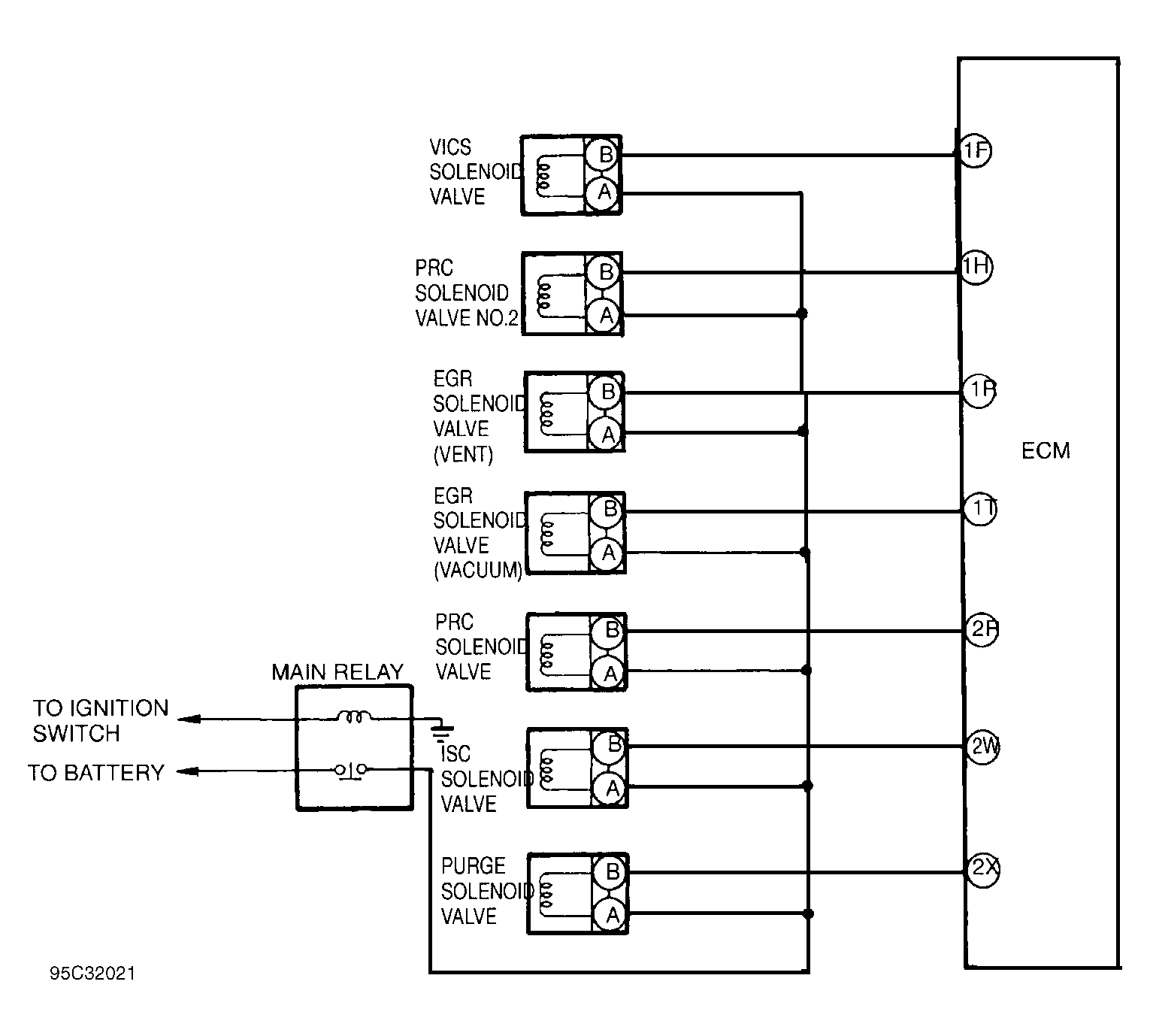

Fig 2: Trouble Code No. 41 Solenoid Valve Circuit Diagram

G95C32021
