Home >> Mazda >> 1995 >> MX-3 Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes >> Trouble Code IDEFINITION Charts >> Notes

Trouble Code IDEFINITION Charts: Notes

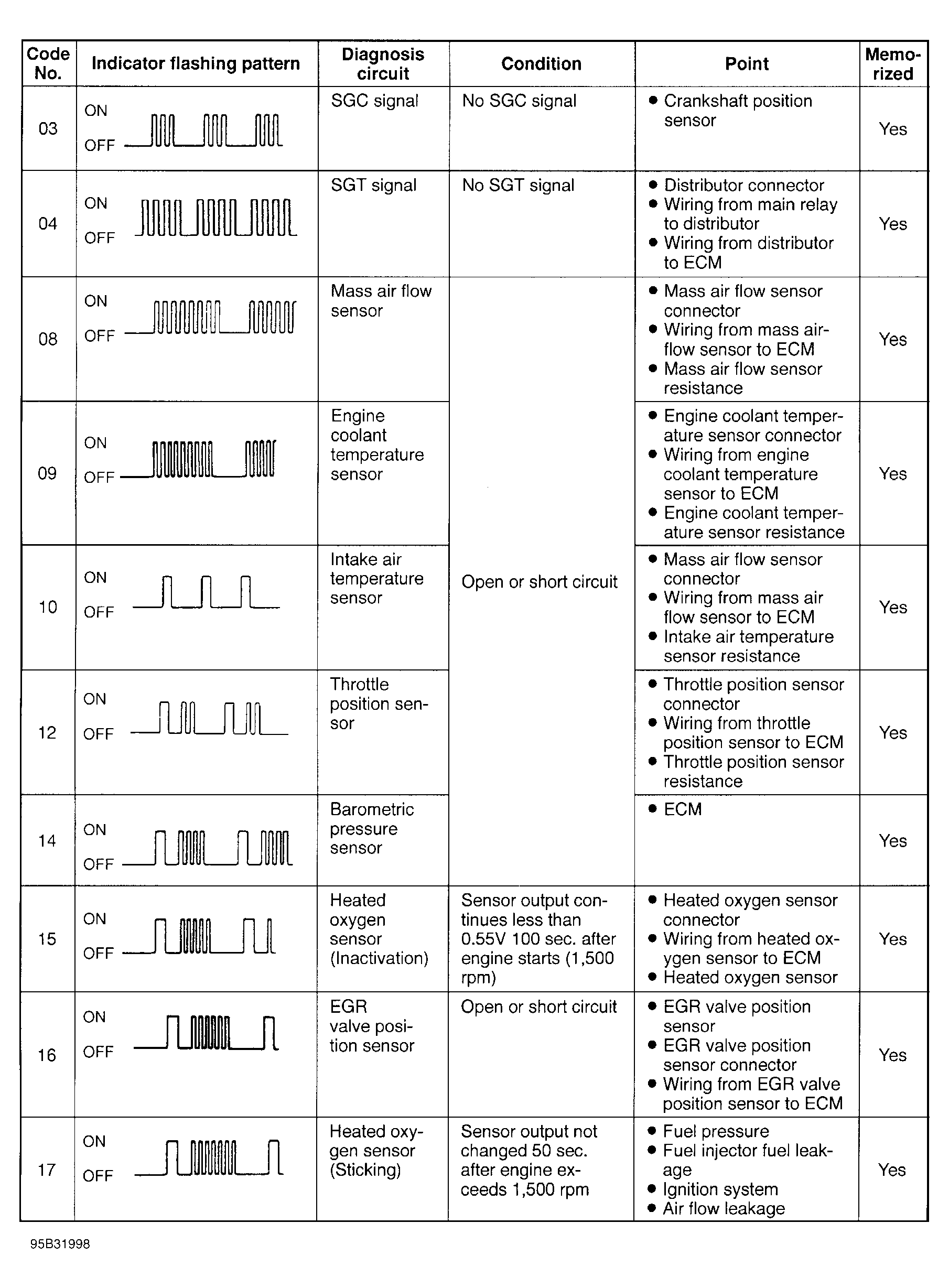

Fig 1: Diagnostic Trouble Code Definition Chart (1 Of 2)
G95B31998Courtesy of MAZDA MOTORS CORP.

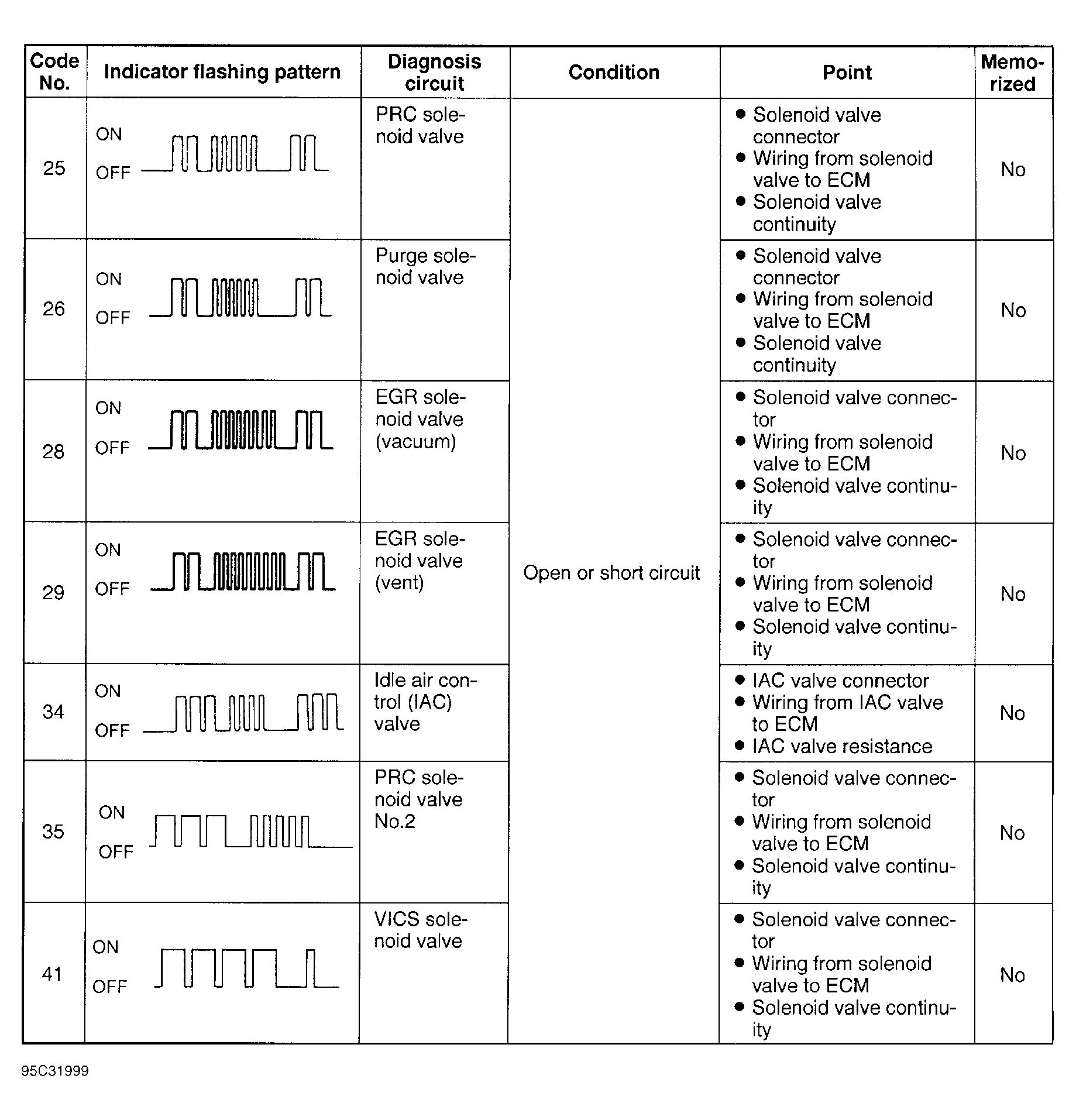

Fig 2: Diagnostic Trouble Code Definition Chart (2 Of 2)
G95C31999Courtesy of MAZDA MOTORS CORP.
