Code 12: Throttle Position Sensor - Full Range
Code 12: Throttle Position Sensor - Full Range

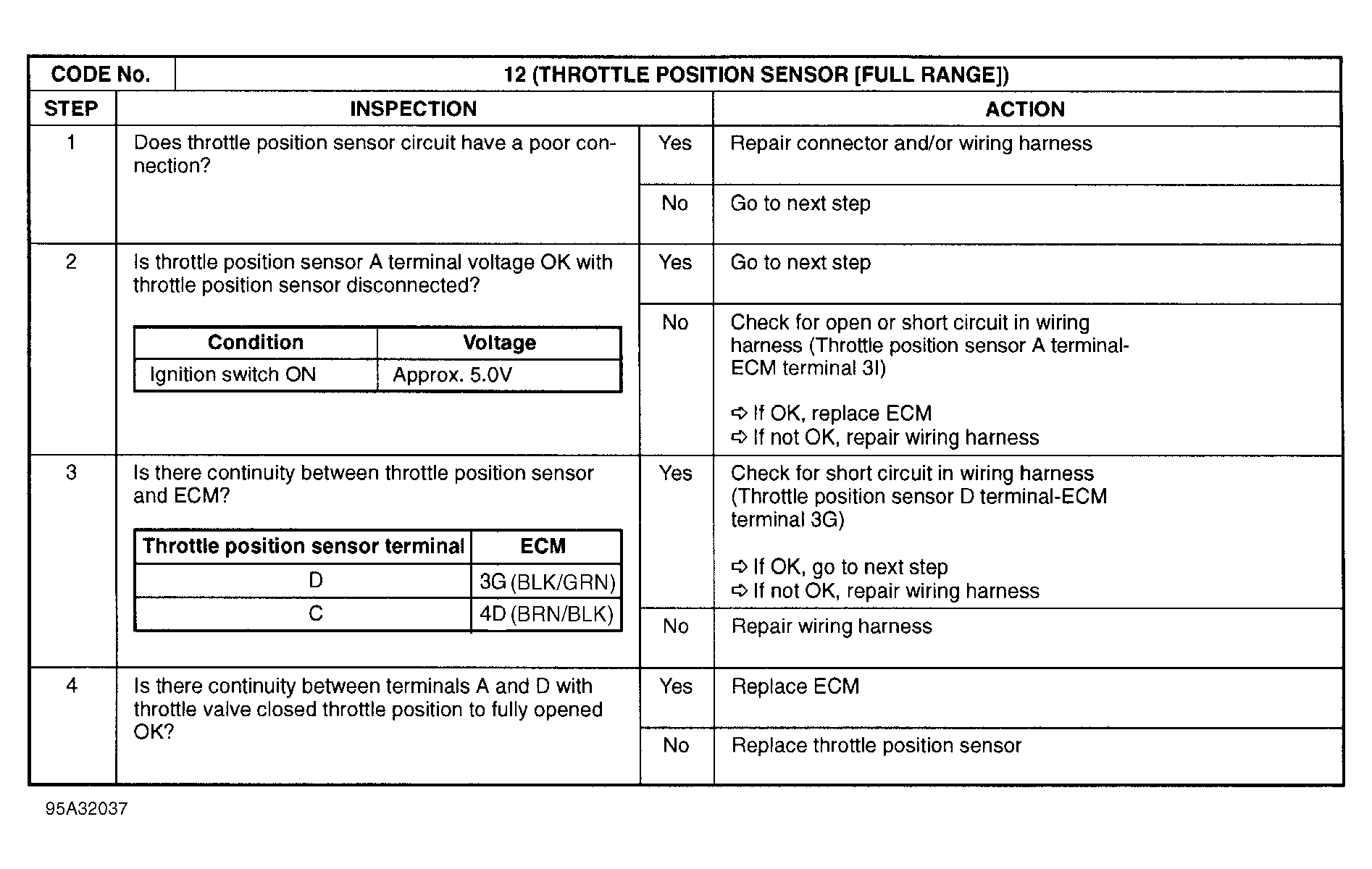

Fig 1: Trouble Code No. 12 Throttle Position Sensor - Full Range

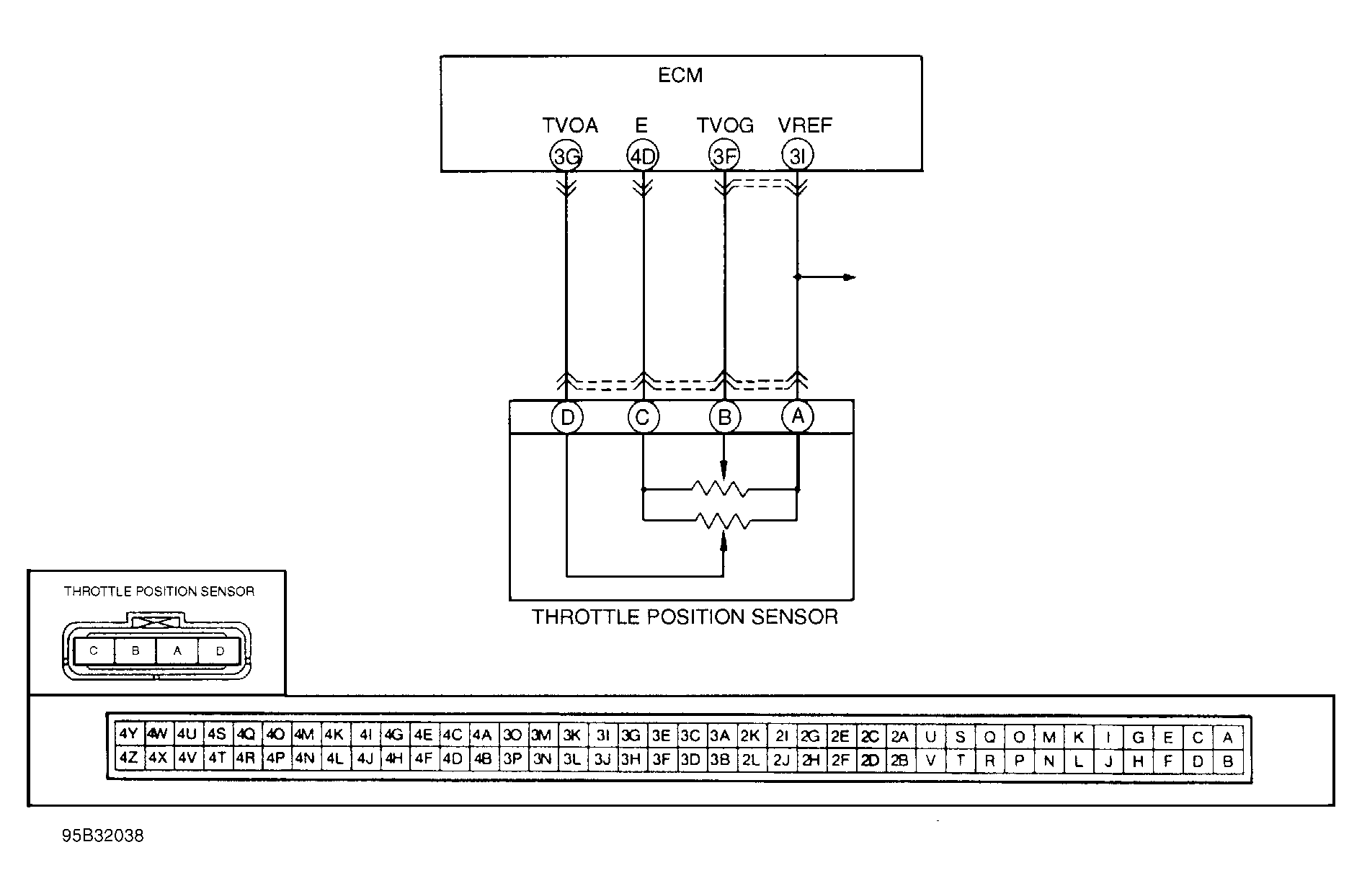

Fig 2: Trouble Code No. 12 Throttle Position Sensor Circuit Diagram
