Code 13: Manifold Absolute Pressure Sensor

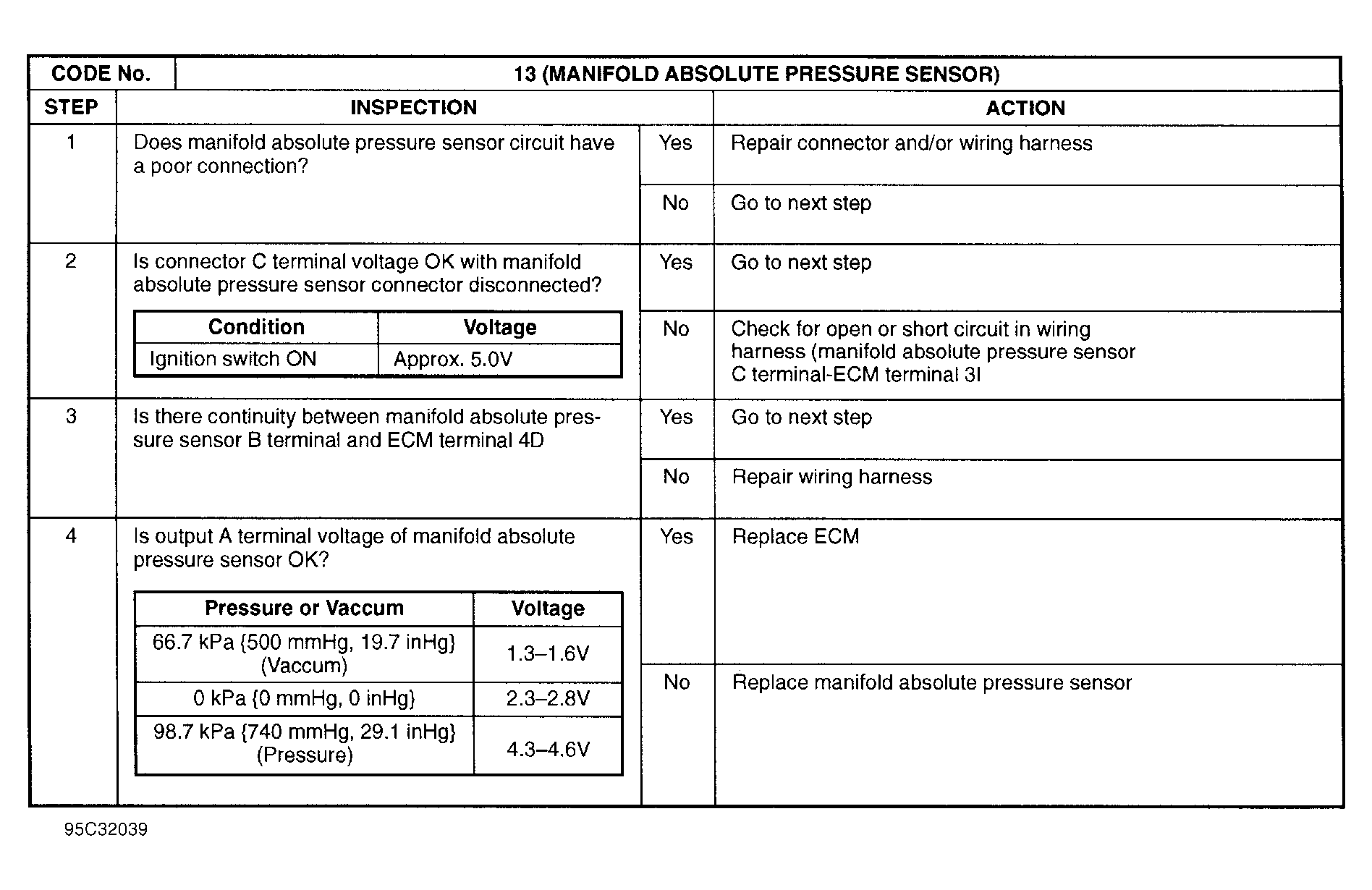

Fig 1: Trouble Code No. 13 Manifold Absolute Pressure Sensor

G95C32039

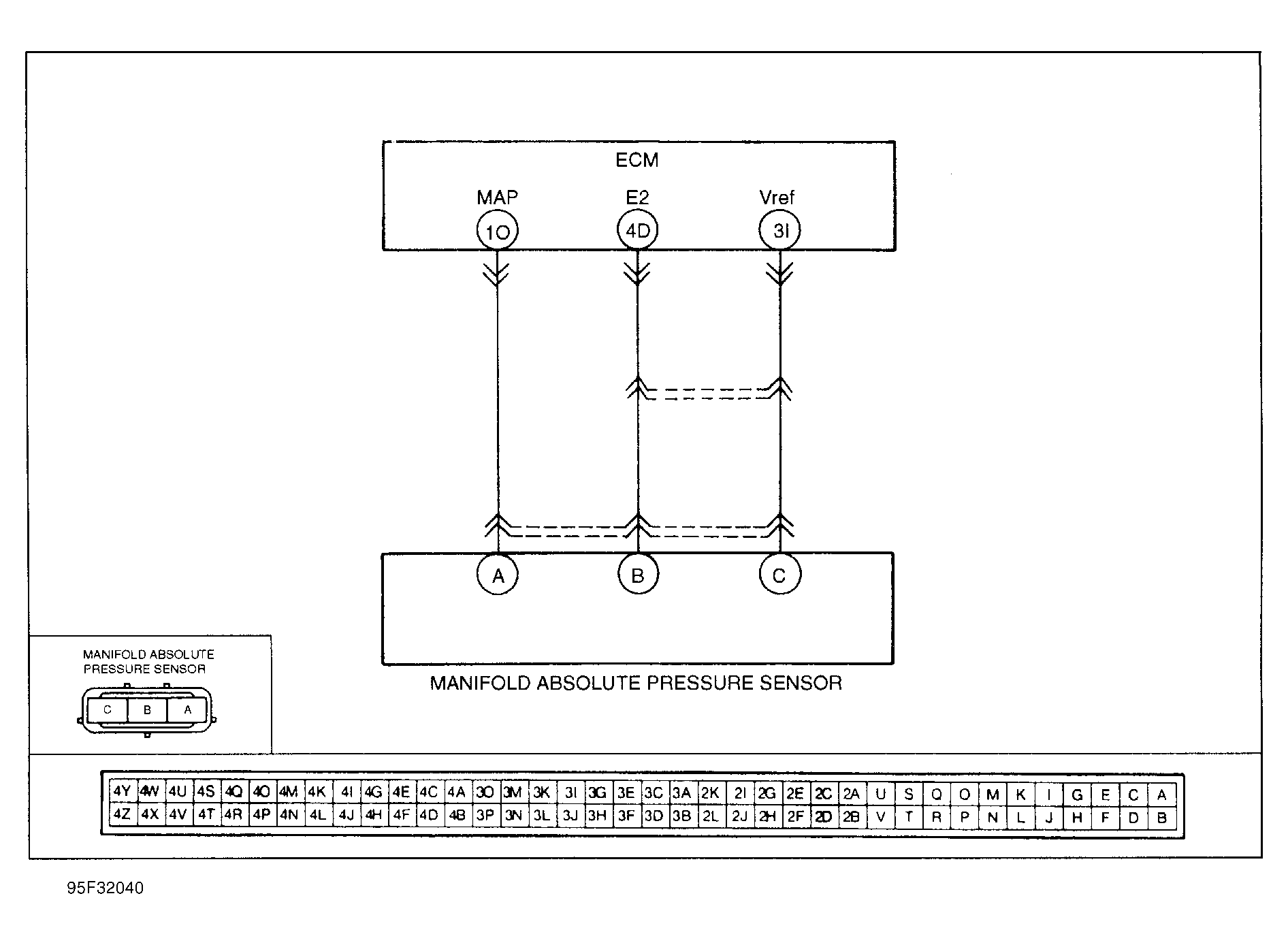

Fig 2: Trouble Code No. 13 Manifold Absolute Pressure Sensor Circuit Diagram

G95F32040
