Code 20: Metering Oil Pump Position Sensor

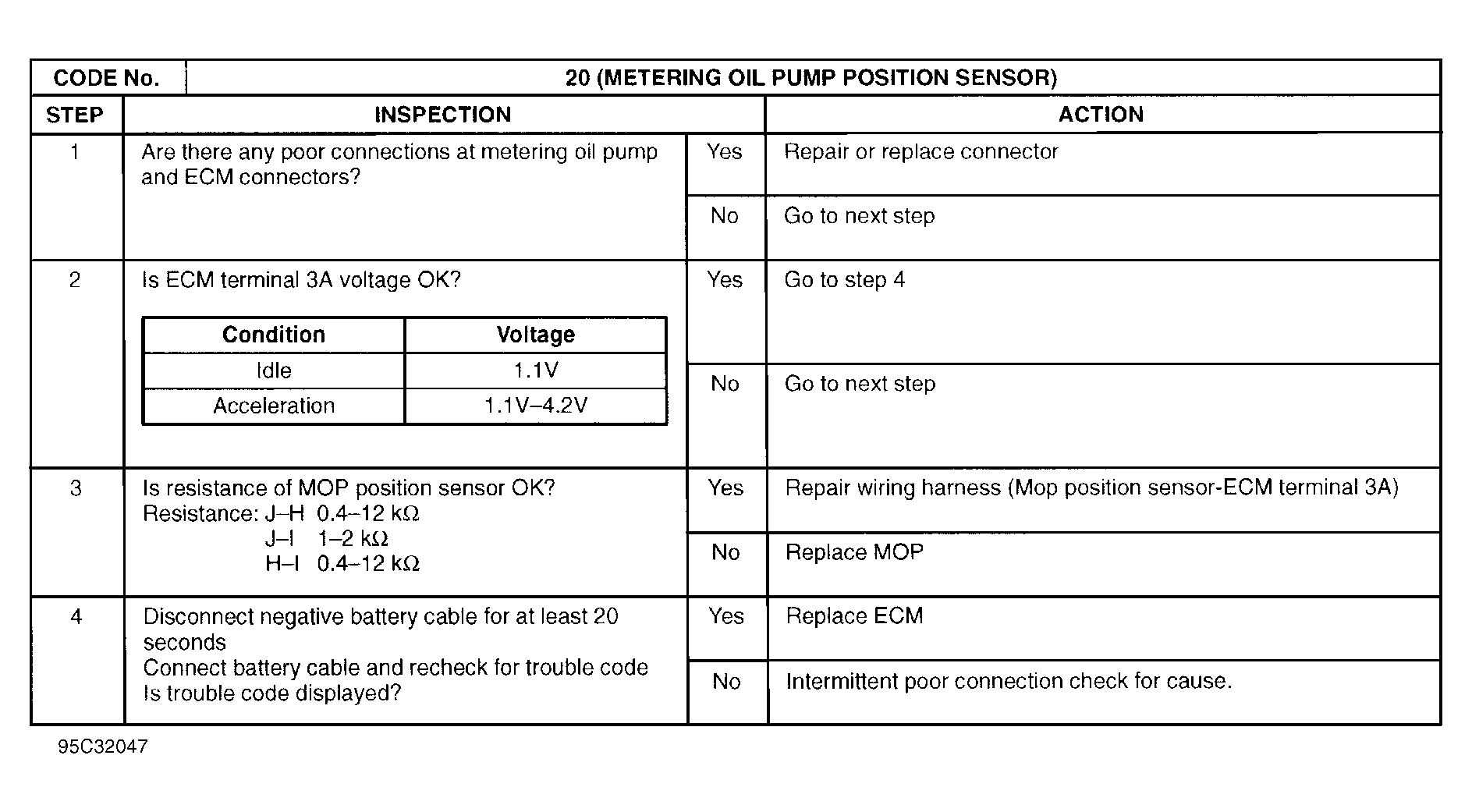

Fig 1: Trouble Code No. 20 Metering Oil Pump Position Sensor

G95C32047

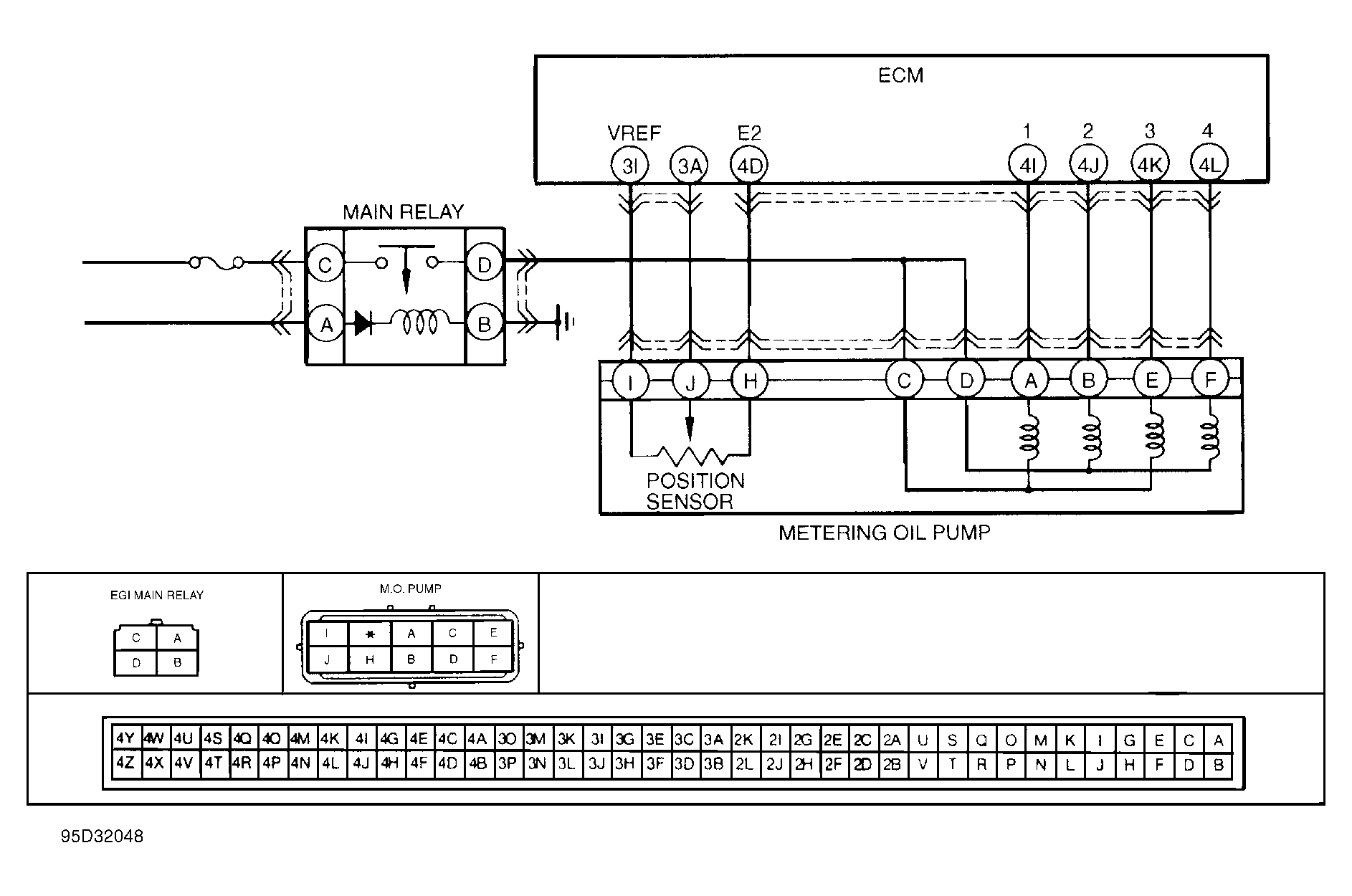

Fig 2: Trouble Code No. 20 Metering Oil Pump Circuit Diagram

G95D32048
