Code 37: Metering Oil Pump

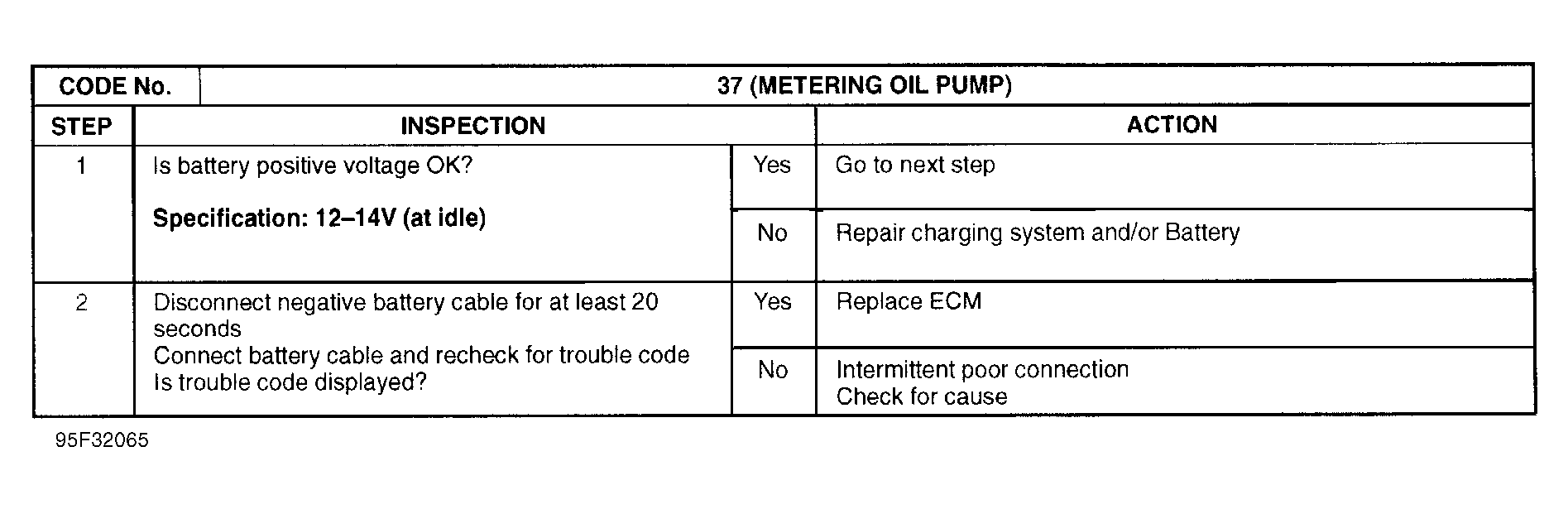

Fig 1: Trouble Code No. 37 Metering Oil Pump

G95F32065

Fig 2: Trouble Code No. 37 Metering Oil Pump Circuit Diagram

G95D32048
